Chapter 4: Control Panels
Setting the Temperature Setpoints for the Plenum and Grain from
the Main Screen
By clicking the blue buttons in the upper right hand corner of the main menu, you can configure the tem-
perature setpoints for the plenum and grain. These settings can also be set from the temperature screen.
What You Should Know
The current plenum temperature is displayed in a black box in the heat plenum (storage) area of the dryer
illustration. The current grain temperature is displayed in a black box in the drying grain of the dryer
illustration.
To adjust the Plenum or Grain setpoint temperature:
1. Click the blue Plenum Temp Setpoint or the Grain Temp Setpoint button in the upper right-hand
corner of the main menu.
2. Enter the desired temperature into the keypad and click enter.

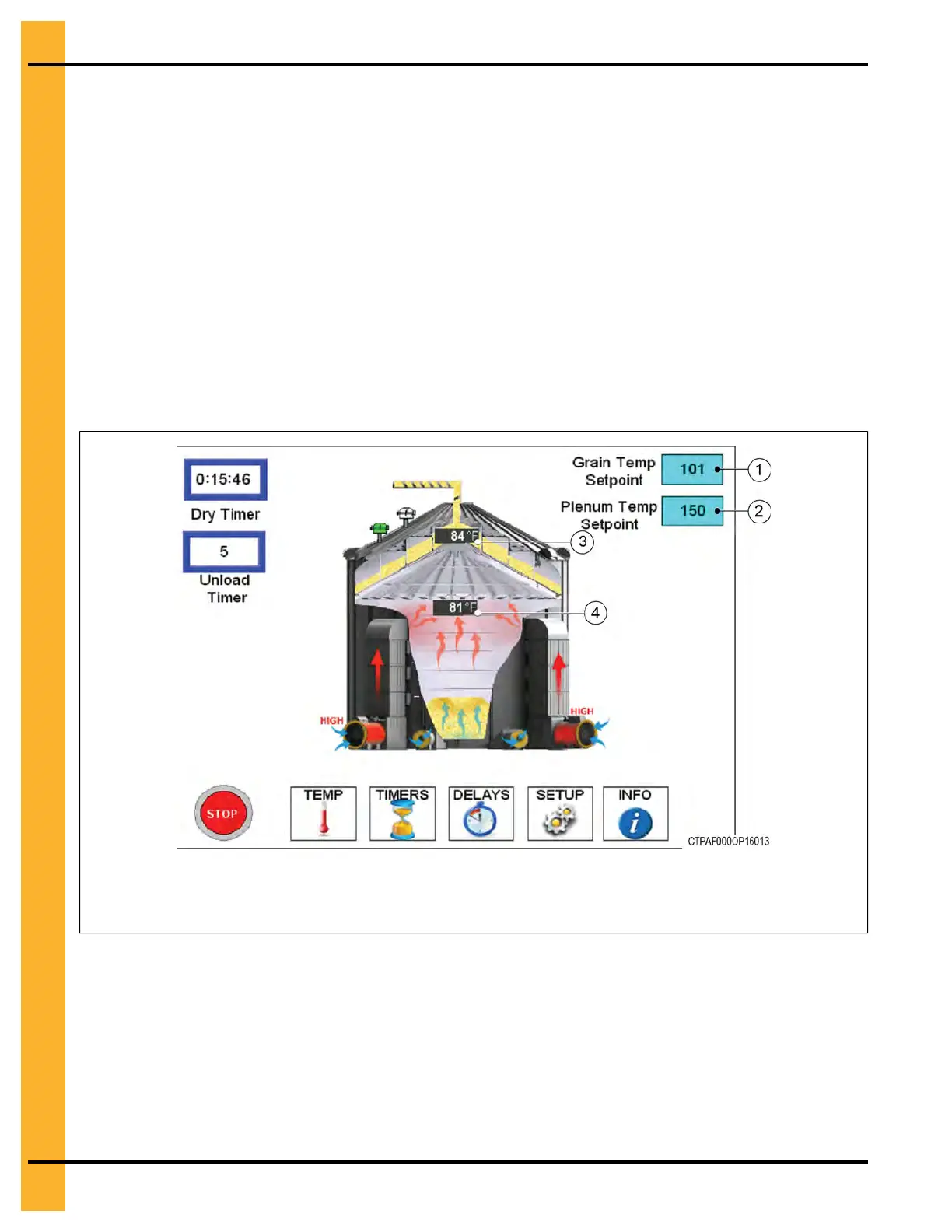

Figure 4-7 Main menu
Item — Name
1 — Grain temperature setpoint
2 — Plenum temperature setpoint
Item — Name
3 — Current grain temperature
4 — Current plenum temperature
