Chapter 4: Control Panels
The TopDry Terminal Control Panel
Along with the touchscreen user interface, the control panel contains all buttons and switches that allow
you to set up and operate your dryer.

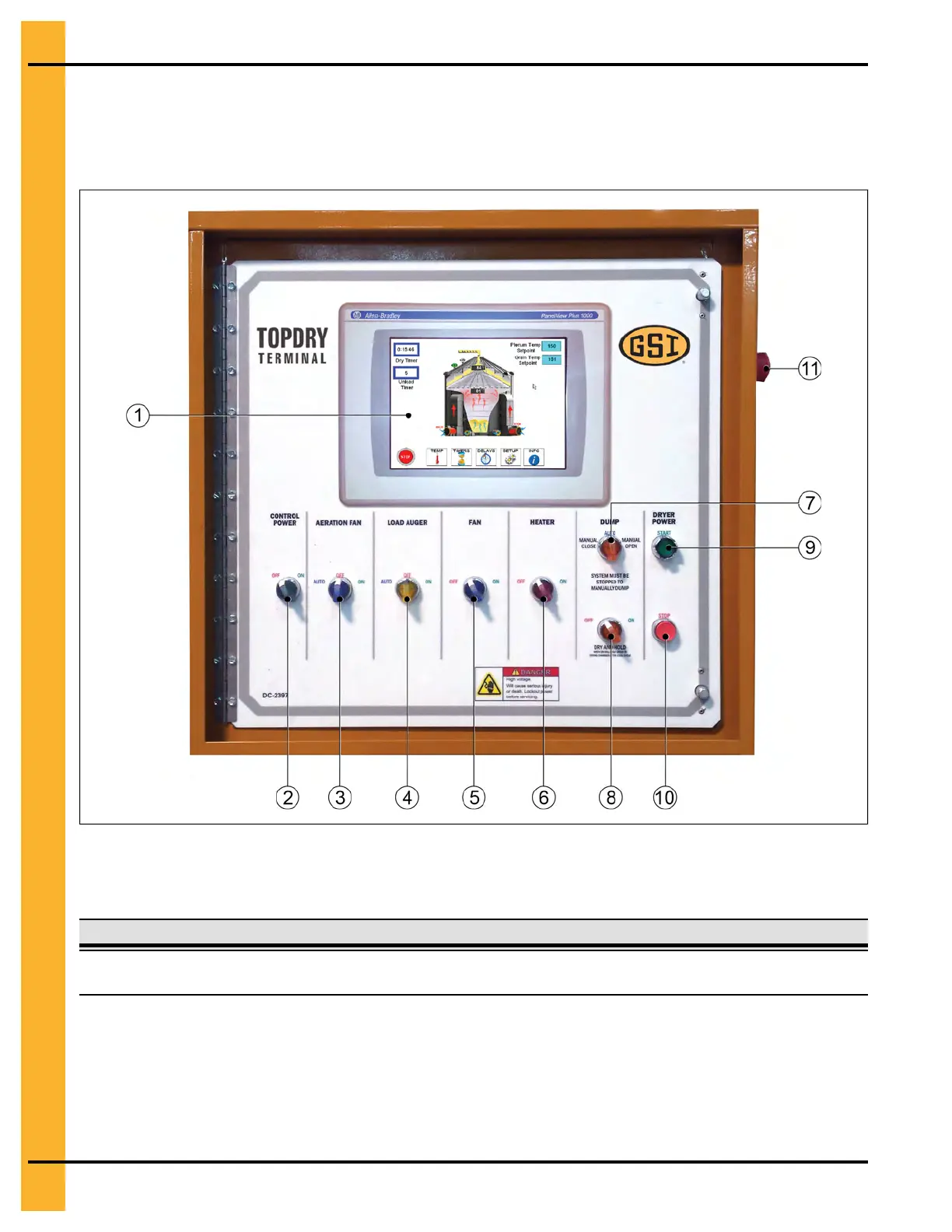

Figure 4-1 The TopDry Terminal
NOTE: Images of the dryer, control panel, and user interface menus that are included in this guide are for
illustrative purposes only and may not entirely resemble the actual product.
Table 4-1 The components of the TopDry Terminal
Item Name Description
1 Touchscreen
Allows you to access all of the user interface menus and set all parameters
(see Overview of the User Interface, page 36 for details)
32 Pneg–4900 TopDry Terminal™
