Chapter 2: The TopDry™ System
Location of TopDry Components and Accessories
Use the following as a suggested guideline for placing the TopDry components and accessories.
When locating the manway, make sure that the outside ladder will not interfere with other accessories
below. Roof vents must be spaced evenly around the roof. (Quantity will vary with individual systems.)
IMPORTANT: 1. Items (I), (K), (M), and (O) must be in this location between the first two stiffeners to the
right of the fan for proper operation.
2. Items (I), (K), and (M) must be at platform or an optional ladder and platform will be
required.
3. Aeration fan must not be placed within 90 degrees of a fan or burner.
4. Storage chamber rotary switch must be mounted 3 ft. below fan/heater duct opening.
5. TopDry Terminal (Q) can be remote mounted or mounted to the dryer.

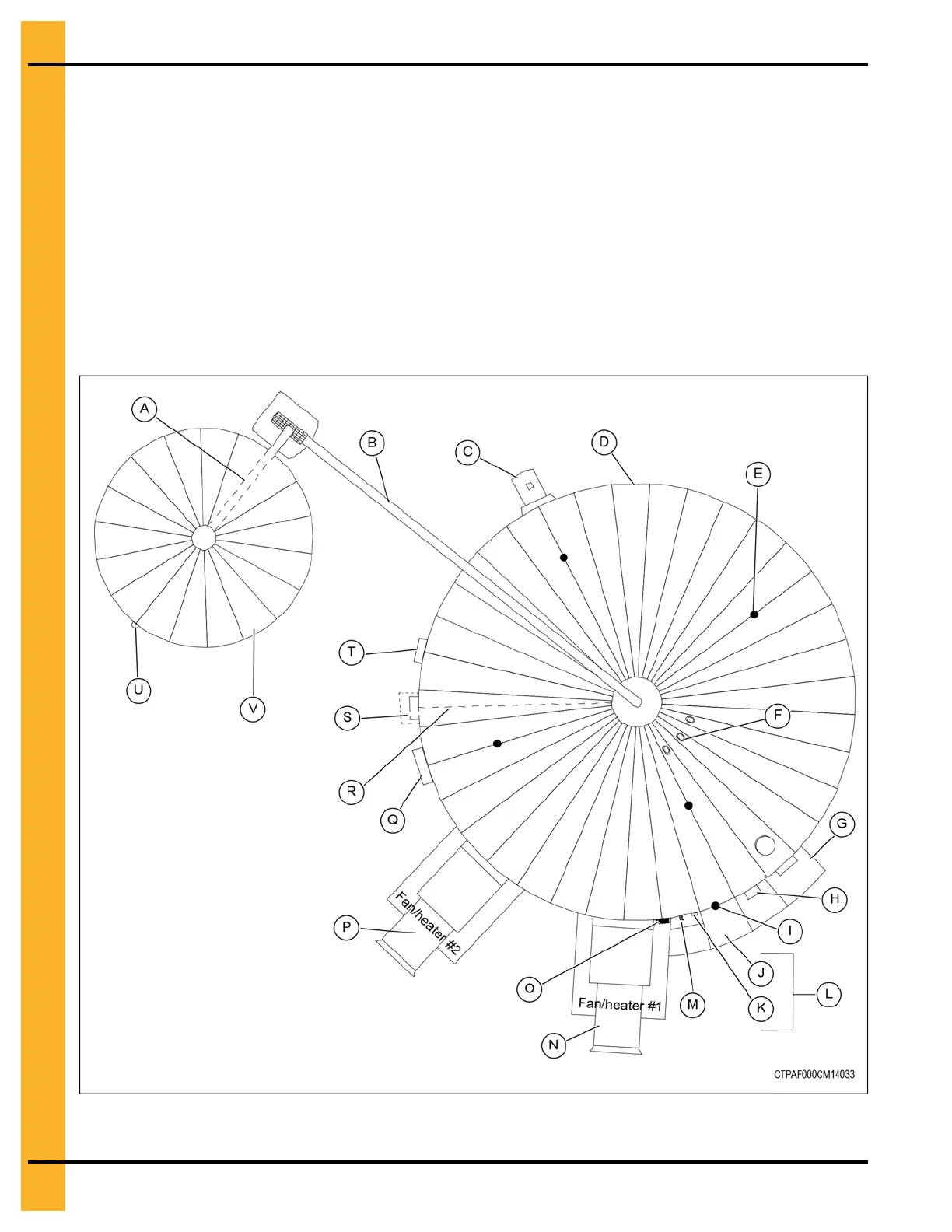

Figure 2-2 Location of TopDry Components and Accessories — Top View
22 Pneg–4900 TopDry Terminal™
