Chapter 4: Control Panels
The Fill System Control
The fill system control box houses the motor starters for fill system 1, fill system 2 and the aeration fan(s).
You can set the switches to determine the mode of operation for the fill system and aeration fan(s).

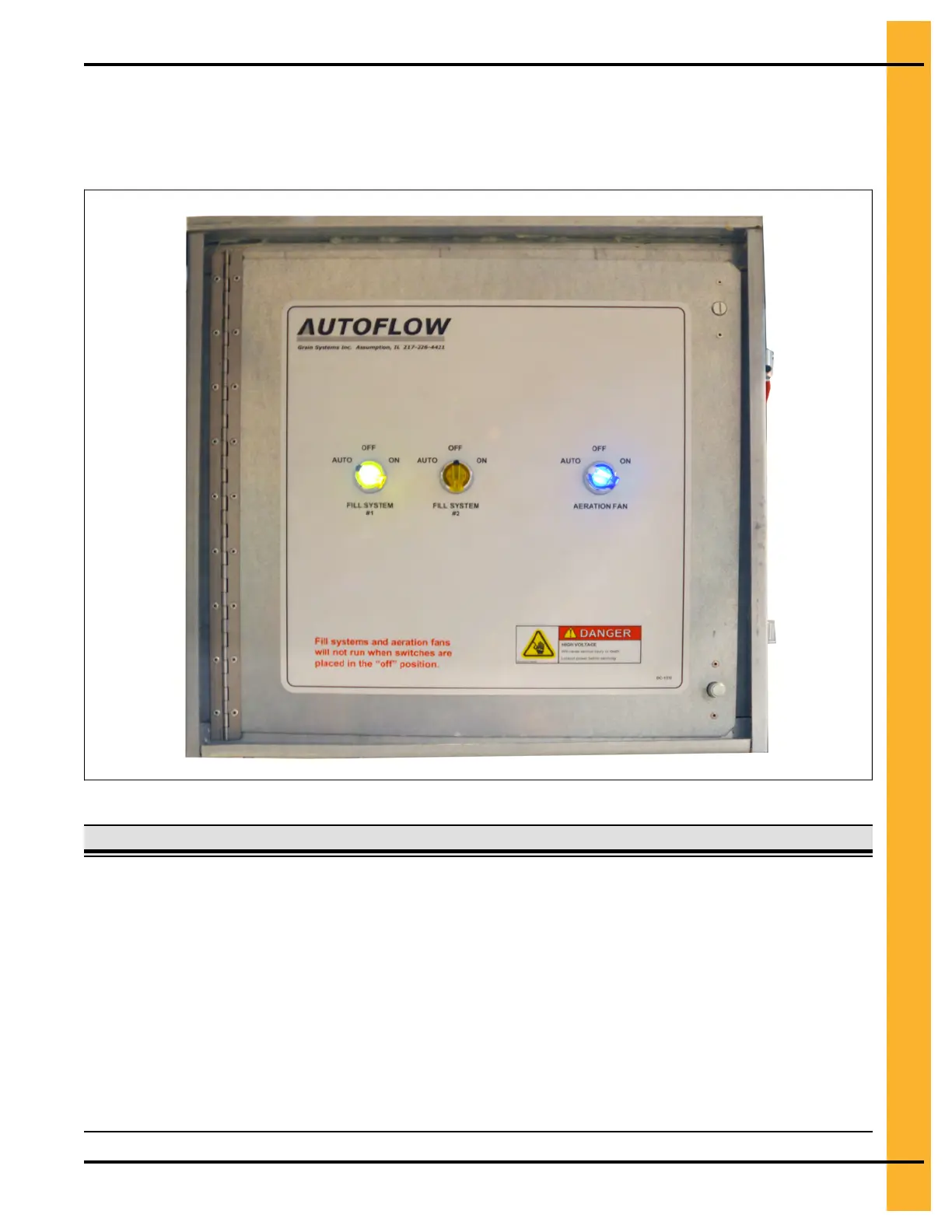

Figure 4-8 Fill System Control
Table 4-5 The components of the fill system control
Item Name Description
1 Fill system 1 switch Controls the primary load auger by way of the following modes:
• Off: the load auger does not operate
• On: the fill system operates continuously
• Auto: when the load auger switch on the TopDry Terminal is set to
Auto, the load auger starts and stops as determined by the TopDry
Terminal
Note the following:
• The Load Auger switch is illuminated whenever the unload auger is
operating
Pneg–4900 TopDry Terminal™ 49
