Chapter 4: Control Panels

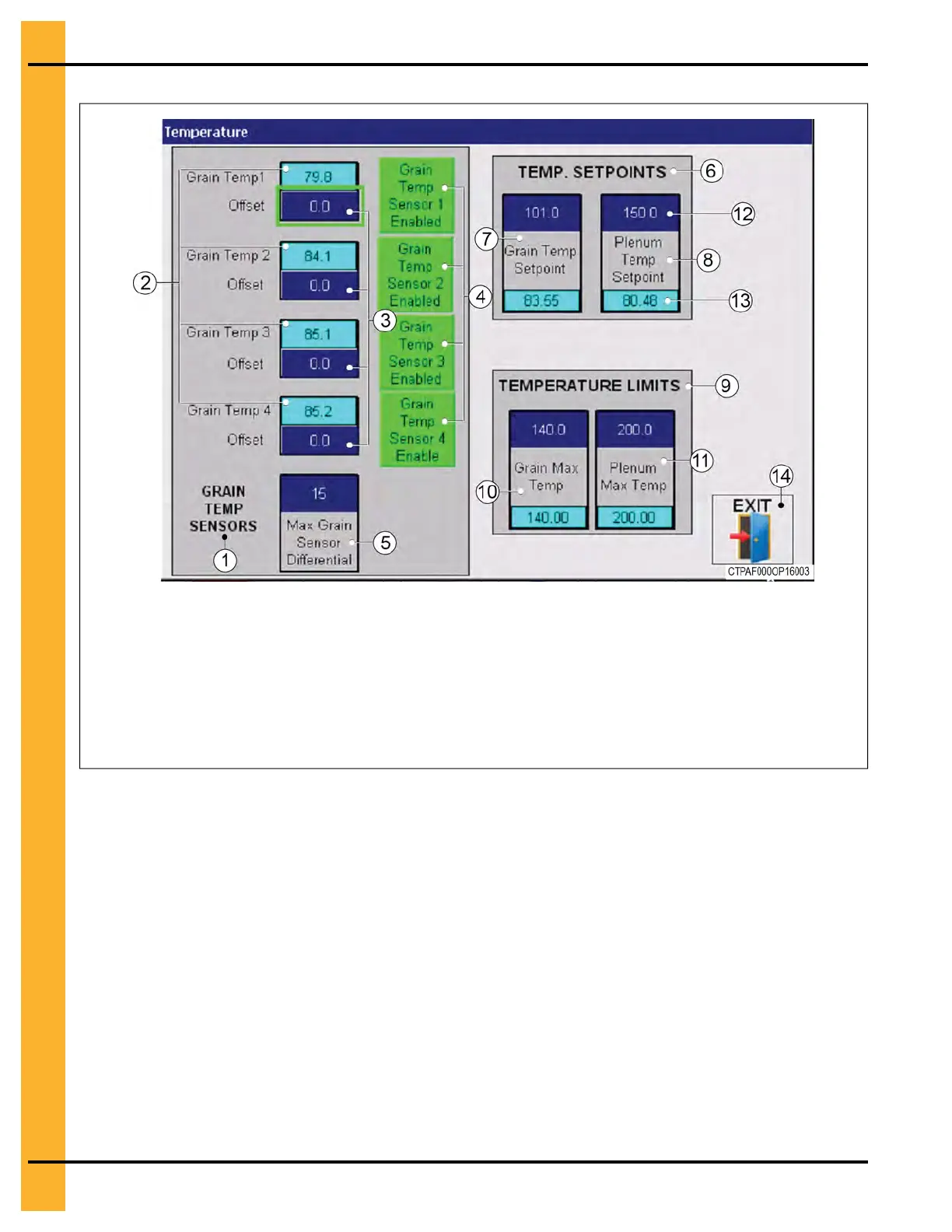

Figure 4-6 The temperature menu
Item — Name
1 — Grain temperature sensors
2 — Grain sensor temperature (1– 4)
3 — Grain sensor temperature offset (1– 4)
4 — Enable or disable grain sensor (1– 4)
5 — Maximum grain sensor differential
6 — Temperature setpoints
7 — Grain temperature setpoint
Item — Name
8 — Plenum temperature setpoint
9 — Temperature limits
10 — Maximum grain temperature
11 — Maximum plenum temperature
12 — Setpoint temperature
13 — Current temperature
14 — Exit
Setting the Sensors and Temperature Limits
By clicking the TEMP icon from the main menu, you can enable and set the limits of the temperature
sensors.
1. Enable or disable the temperature sensors by clicking on the Grain Temp Sensor buttons.
NOTE: Sensor should only be disabled when a sensor failure has occurred.
2. Set the temperature for each sensor by clicking on the light blue area of the button for that sensor.
3. Set the offset for each sensor by clicking on the dark blue area of the button for that sensor.
NOTE: Setting an offset is an unusual occurrence and is normally set by a Service Technician.
4. Set the maximum grain sensor differential by clicking on the dark blue area of the Max Grain
Sensor Differential button.
NOTE: Setting this to low will cause nuisance shutdowns. Default is set at 15° F.
