Gtec NOVA 10kVA - Details of UPS Front and Rear Views

www.gtec-power.de 14

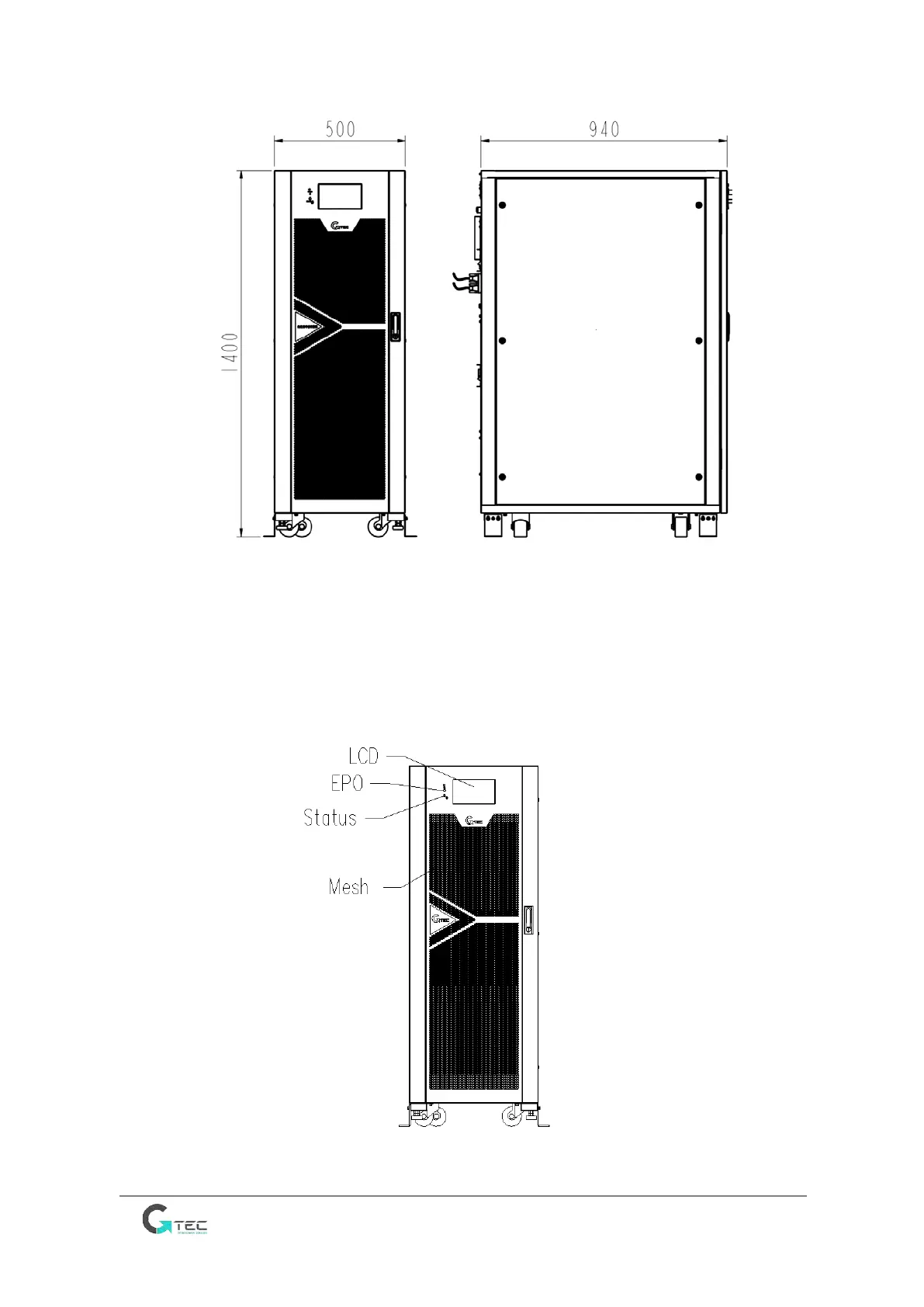

(c) The outlook of 30kVA/40kVA (unit: mm)
Figure 1-1 UPS Outlook
1.1.3 Details of UPS front and rear views
The UPS front and rear views are shown as Figure 1-2.
(a) The details of front view for 10-40kVA
