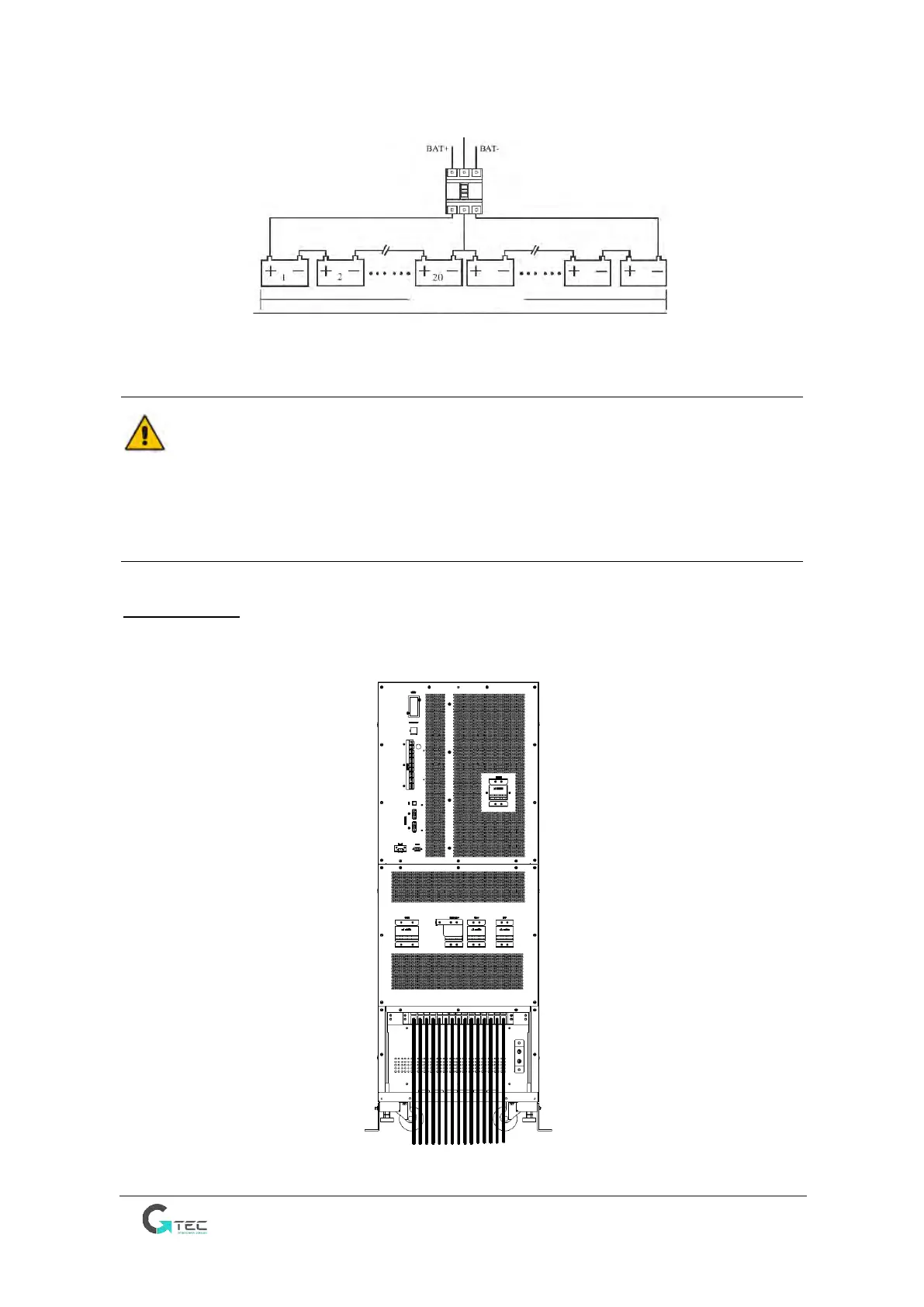

Figure 2-5 Battery connection diagram
Danger
The battery terminal voltage is of more than 400Vdc, please follow the safety instructions to avoid
electric shock hazard.
Ensure the positive, negative, neutral electrode is correctly connected from the battery unit terminals
to the breaker and from the breaker to the UPS system.
2.5 Cable Entry
Cables entry is on the bottom of the rear.
Cable entry is shown in Figure 2-6.
Figure 2-6 Cables entry
+
-
N
N
40 batteries in series
403921
