Table 2-12
Port
Name
Function
J8-1
BAT_LOW_ALARM_NC
Battery warning relay NC (normally closed) will be
open during warning
J8-2
BAT_LOW_ALARM_NO
Battery warning relay NO (normally open) will be
closed during warning
J8-3
BAT_LOW_ALARM_GND
Common terminal
General Alarm Output Dry Contact Interface
The default function of J9 is the general alarm output dry contact dry interface. When one and
more warnings are trigged, an auxiliary dry contact signal will be active via the isolation of a relay.
The port diagram is shown in Figure 2-27, and the description is shown in Table 2-13.

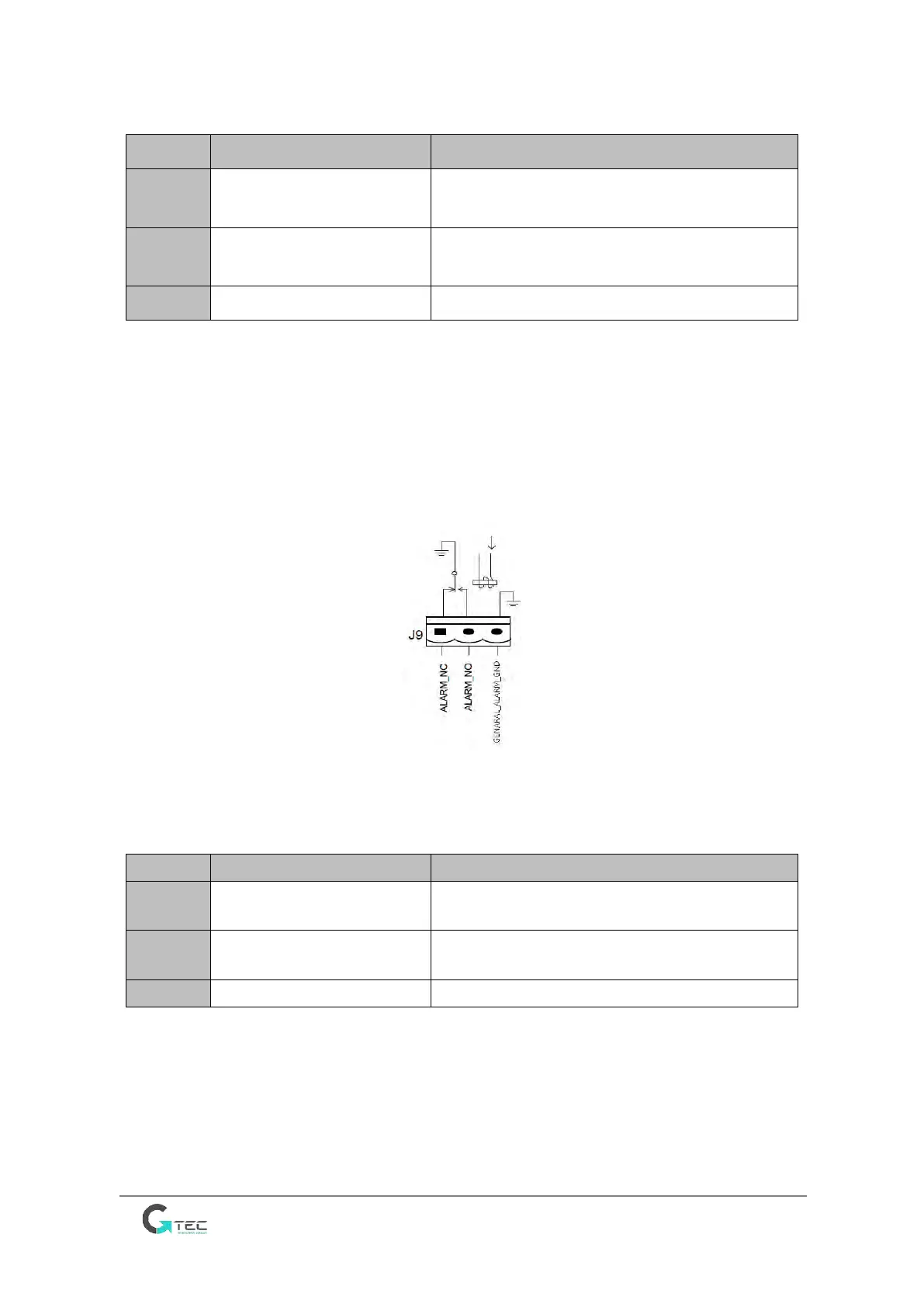

Figure 2-27 General alarm dry contact interface diagram
Table 2-13
Port
Name
Function
J9-1
GENERAL_ALARM_NC
Integrated warning relay NC (normally closed) will be
open during warning
J9-2
GENERAL_ALARM_NO
Integrated warning relay NO (normally open) will be
closed during warning
J9-3
GENERAL_ALARM_GND
Common terminal
