Guardian CORE SERIES User Manual

www.adhguardianusa.com
MODEL 415-3T
CORE SERIES 1/2HP
Lag Screw 5/16” x 2 1/2”
Header Bracket / Mounting Opener (2)*

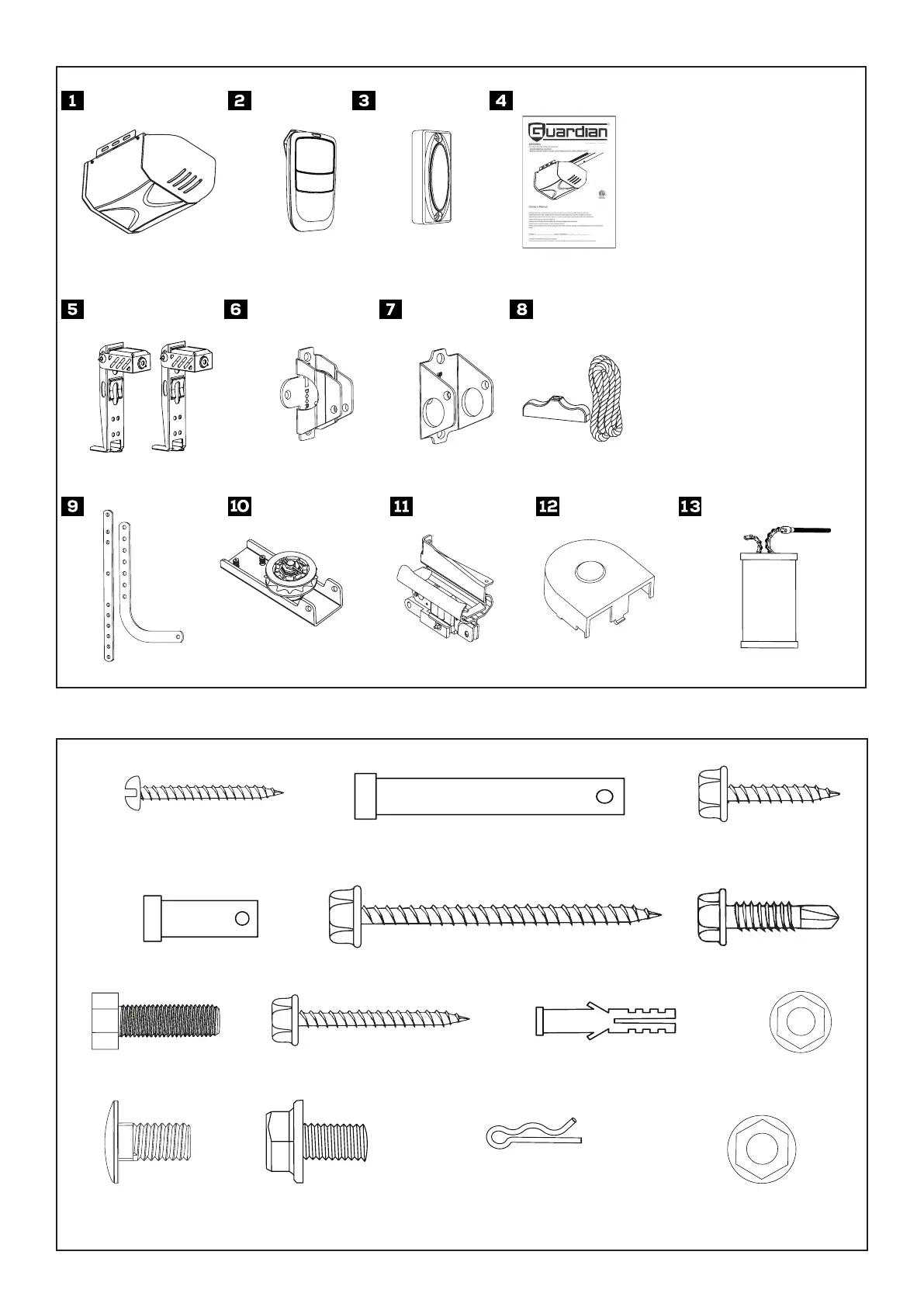

1. Opener Unit + Light Lens
(Light bulb is not included)
2. Remote Control
3. Push Button
4. Manual
5. Photo Eyes
6. Door Bracket
7. Header Bracket
8. Emergency Release
Handle
9. Door Arms
10. Front Idler Sprocket
11. Trolley For T-Rail w/8mm
Rod
12. Sprocket Cover
13. Chain
Inventory
Hardware Needed
Screw #6 x 1-3/8’’
Push Button (2)
Included inside the push button bag
Clevis Pin 5/16” x 1”
Door arms (2)*
Self -Threading Screw 1/4” x 1”
Door bracket (2)*
Lag Screw 1/4 x1”
Photo Eye System (4)*
Drywall Anchor
Push Button (2)
Included inside the push button bag
Clevis Pin Long 5/16” x 2-1/4”’
Header brackte (1)
Attached to the header bracket
Bolt 5/16” -18 x 1”
Door arms / Mounting Opener (6)*
5/16” Flange Nut
Door arms / Mounting Opener (12)
Carriage Bolt
R3KIT assembly (8)*
Bolt 5/16” - 18 x 1/2”
Secure Rail to Gate Opener (2)*
Flange Nut 1/4” -20
R3KIT assembly (2)*
Lag Screw 5/16” x 1 5/8”
Door Bracket / Mounting Opener (2)*
Hitch Pin
Locking Clevis Pins (2)*
Header bracket (1)
Attached to the clevis pin from header
bracket
INSTALLATION HARDWARE, LOCATED IN HARDWARE BAG* (SHOW ACTUAL SIZE 1:1)
