The thickness of the original cutter is 0.991" [25.2 mm] and must be kept in its original proximity
after sharpening, by using cutter spacers. It is recommended that after sharpening, measurement of
the cutter thickness be made and appropriate spacers installed behind the cutter to bring the total
thickness as close as possible to the 0.991" [25.2 mm]. NOTE: Cutter spacers are available in
two (2) nominal thicknesses: 0.02” [0.5 mm] thick and 0.04” [1.0 mm] thick.
For Example:
Cutter thickness after several sharpenings - L1 = 0.964" [24.5 mm]
Add one spacer - L2 = 0.020" [0.5 mm]
Total Thickness - L3 = 0.984" [25.0 mm]

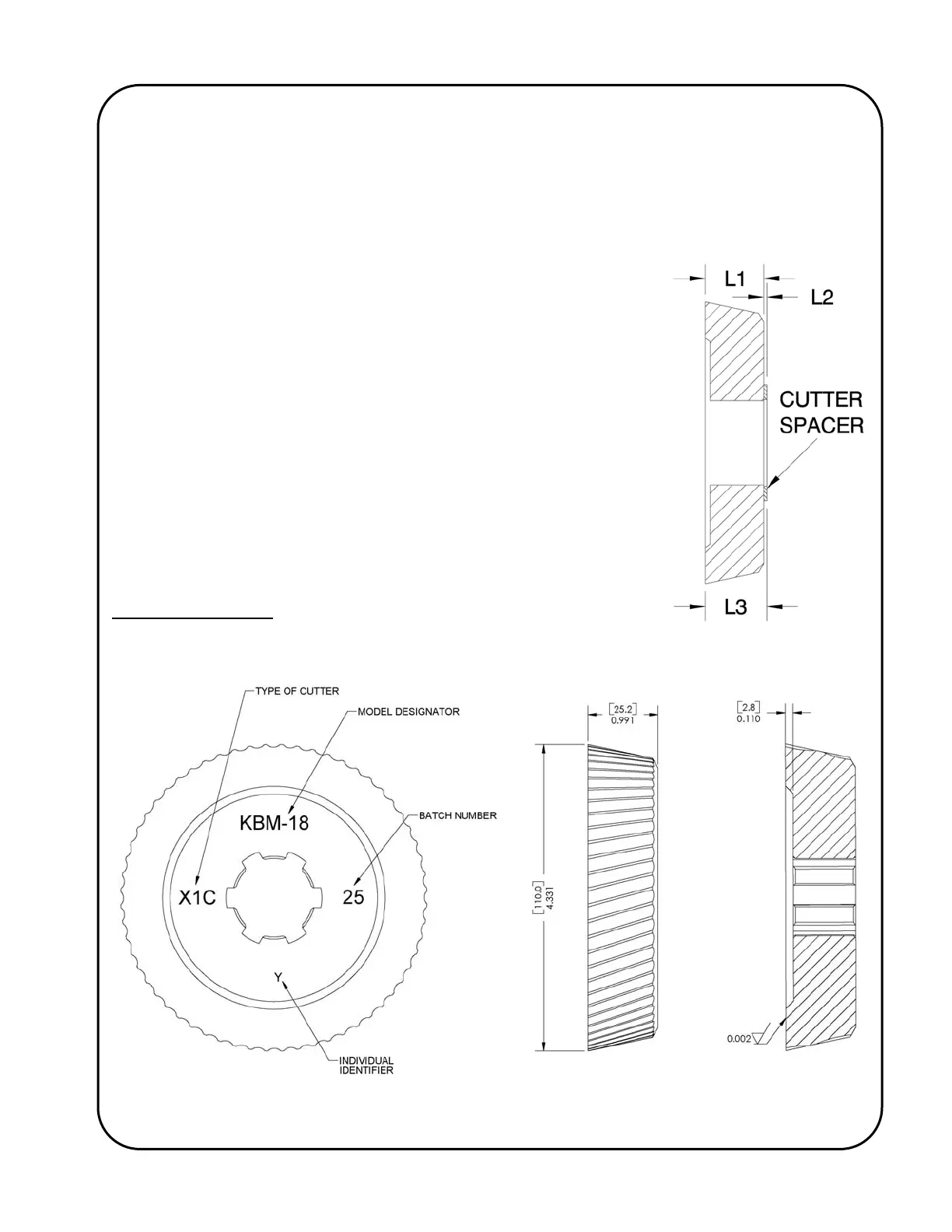

CUTTER DETAILS
