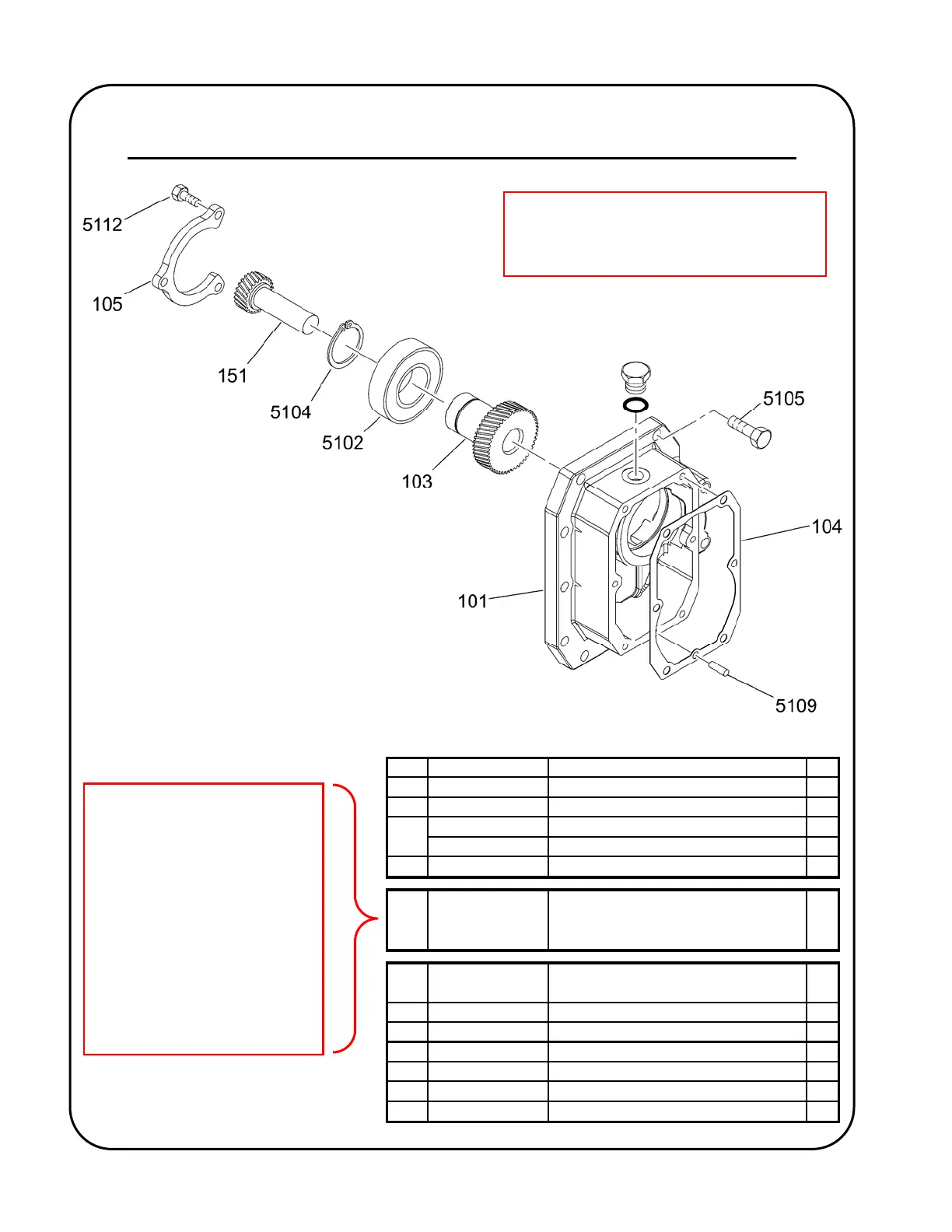

KBM®-18 GEARBOX ADDITIONAL GEAR MODULE BREAKDOWN
Item Part Number Description Qty
104 KBM-18-120-GS Gasket 1
151 KBM-18-151-PS Pinion Gear 1
GK-108-112 Bolt M8x25 9
GK-108-161 Bolt M8x65 1
5109 GK-115-091 Dowel 5x16 1
KBM-18-201
Gear Module Assembly
(KBM-18-200 Module Sub Assy +
KBM-18-151-PS Pinion Gear)
KBM-18-200
Additional Module Sub Assembly
All items below
101 KBM-18-141 Additional Gear Module 1
103 KBM-18-142 Gear 1
105 KBM-18-143 Bearing Retainer 1
5102 KBM-18-144 Bearing 3206-2RS 1
5104 GK-119-072 External Retaining Clip 30 1
5112 GK-108-122 Bolt T.E. M6x16 3
5105
If component damage
occurs, Gullco strongly
recommends replacing the
KBM-18-201 Gear Module
Assembly, as it is more
readily available and has
been precision assembled
& adjusted. Special tooling
and procedures are
required to rebuild these
gear modules and should
only be performed by
qualified technicians.
Note:
Provide all nameplate details from gear
box label when ordering spare parts.
