40
ITEM PART NUMBER DESCRIPTION QTY
1 KBM-18-051 CLAMP ROLLER BLOCK 1
2 KBM-18-049 CLAMP ROLLER 6
3 KBM-18-059 SLIDE SHAFT 2
4 GK-115-088 6mm x 26mm DOWEL PIN 6
5 KBM-18-060 SLIDE SHAFT SUPPORT PLATE 1
6 KBM-18-058 SLIDE SHAFT RETAINING PLATE 1
7 KBM-18-052 SCREW SHAFT 1
8 KBM-18-057 HAND WHEEL 1
9 KBM-18-053 BEARING WASHER 4
10 KBM-18-054 THRUST BEARING 2
11 KBM-18-110 REVOLVING HANDLE 1
12 GK-111-094 WASHER 6mm BOLT x 12 OD x 1.6 1
13 GK-112-130 M6-1.0 x 14mm BHCS 1
14 GK-107-123 M8-1.25 x 16mm SHCS 2

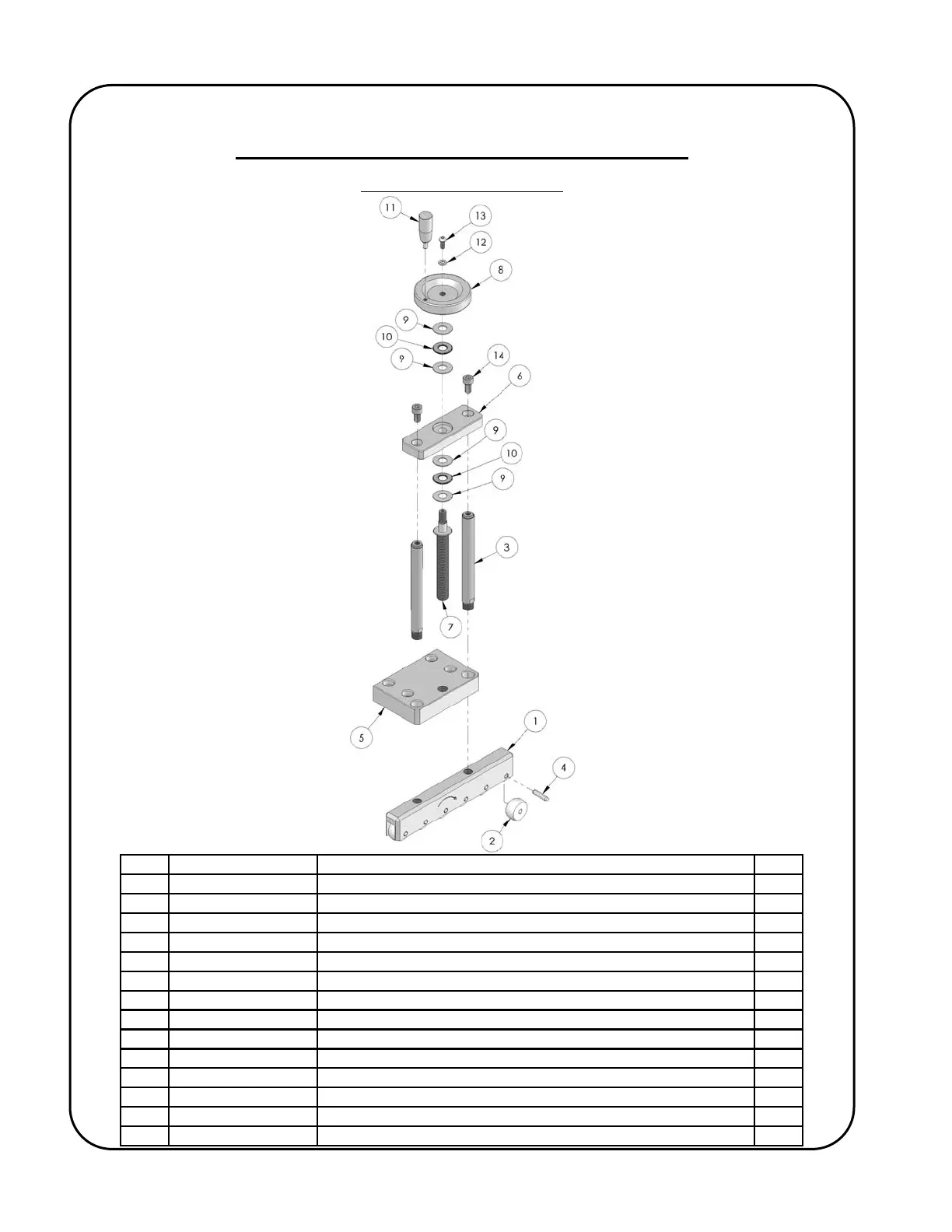

CLAMP ROLLER ASSEMBLY BREAKDOWN
Part Number: KBM-18-024
