KBM®-18 PLATE EDGE BEVELLING MACHINE DETAILS
This manual covers the operation instructions, maintenance requirements and provides parts lists
for the Gullco Plate Edge Bevelling Machine, part number: KBM
®
-18-100.
DECLARATION OF CONFORMITY - CE - designed and manufactured in compliance with
89/392EEC provisions and further amendments.
MACHINE SPECIFICATIONS
Maximum Bevel Width: 0.71" [18 mm] at standard 30° bevel angle on material with a
tensile strength of 64,000 lb/in² [45 Kg/mm²] (multiple passes)
Maximum Bevel Depth: 0.61" [15.6 mm] at standard 30° bevel angle on material with a
tensile strength of 64,000 lb/in² [45 Kg/mm²] (multiple passes)
Minimum Plate Thickness: 1/4" (6.3 mm)
Bevel Speed: 13’ [4 m] per minute
†
Motor: 2 H.p., 3 phase, available for 230, 460 and 575 V at 60 Hz. and
also 380 and 400/415 V at 50 Hz. supply
Gearbox Oil: 1 US Gallon (4 Litres) of Shell Tivela S 320 (See section “Periodic
Inspection & Maintenance” for further details)
Weight: 275 lb [125 Kg] without an undercarriage assembly;
449 lb [204 Kg] with KBM
®
-18-080 undercarriage assembly
337 lb [153 Kg] with KBM®-18-069 undercarriage assembly
†
Top speed can vary depending on variations of bevel depth, voltage and frequency.

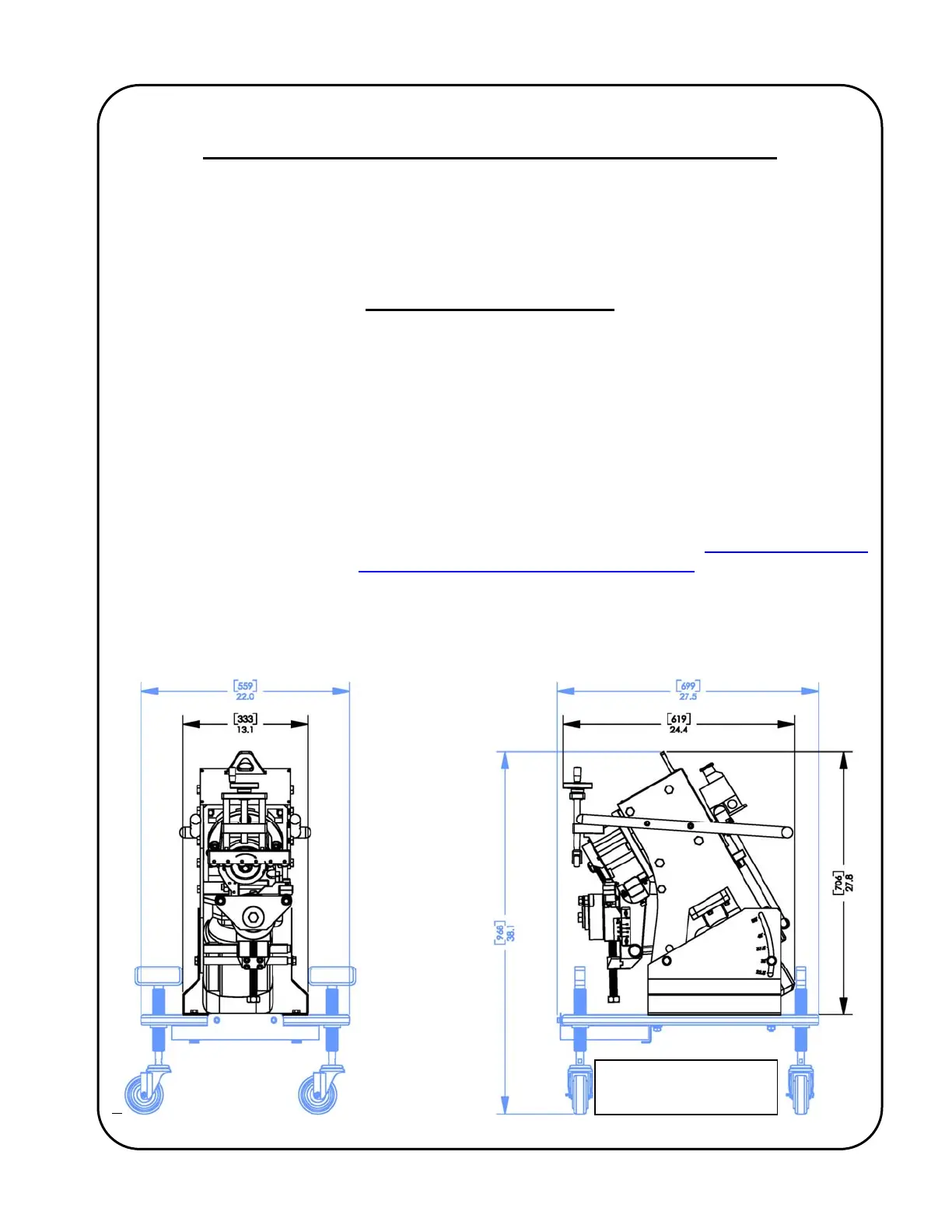

KBM-18-069
UNDERCARRIAGE
