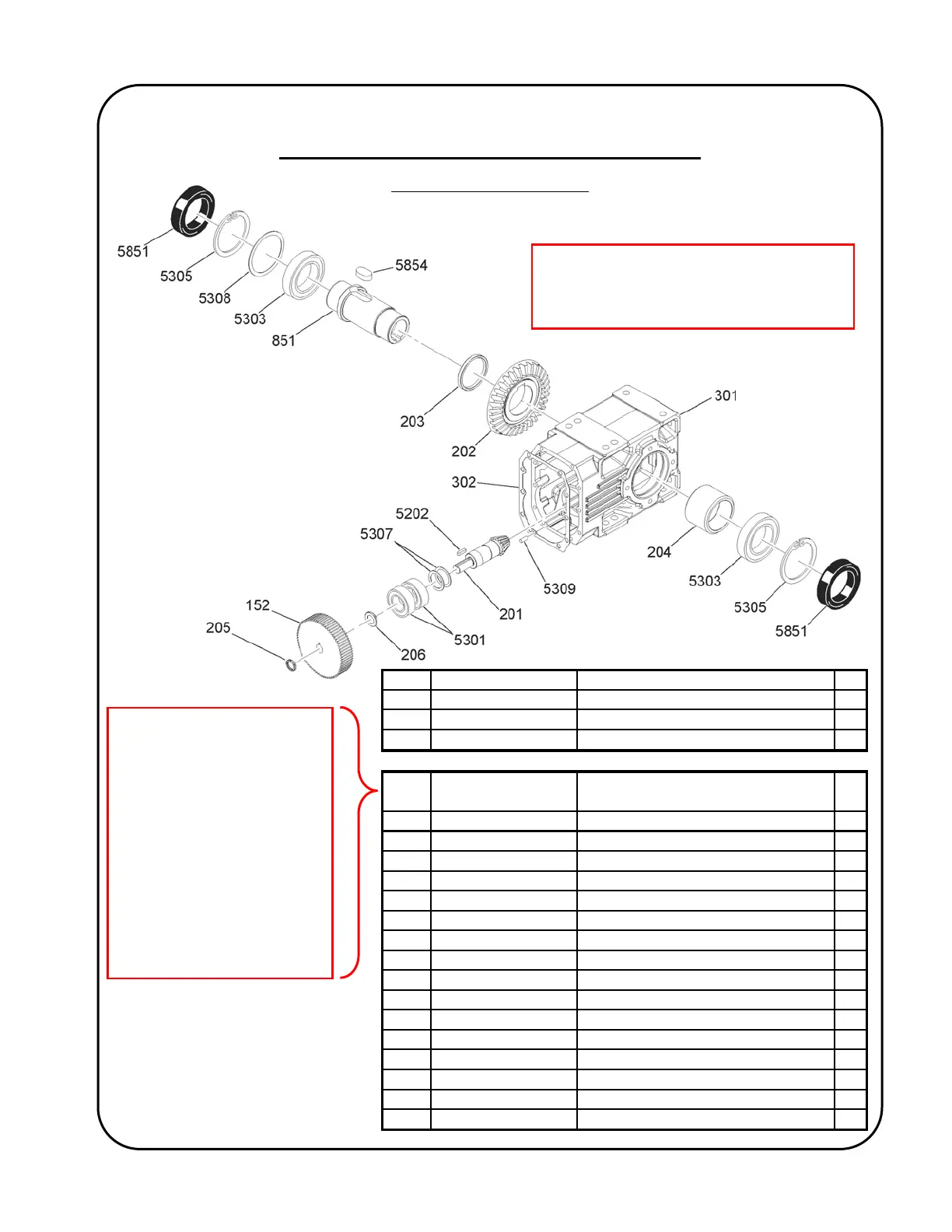

KBM®-18 MAIN GEARBOX BREAKDOWN
Part Number KBM-18-126
Item Part Number Description Qt
y
152 KBM-18-152 Gear 1
302 KBM-18-120-GL Gasket 1
5309 GK-115-094 Dowel Pin 6x16 2
KBM-18-127
Gearbox Sub Assembly
(
All Items Below
)
201 Not Sold Individually Bevel Pinion 1
202 Not Sold Individually Bevel Gear 1
203 Not Sold Individually Spacer Ring 1
204 Not Sold Individually Spacer Ring 1
205 KBM-18-205 Ring Nut M20x1.5 1
206 Not Sold Individually Spacer Ring 1
301 Not Sold Individually Gear Housing 1
851 Not Sold Individually Output Shaft 1
5202 KBM-18-5202 Key 6x6x25 C 1
5301 KBM-18-5301 Bearing 32007X 1
5303 KBM-18-5303 Bearing 6213 2
5305 KBM-18-5305 Circlip 120 2
5307 KBM-18-5307 Bevel Pinion Washer 35.3x48x1 1
5308 KBM-18-5308 Output Shaft Washer 100x120x1 R 1
5851 KBM-18-5851 Oil Seal 65x120x13 DL 2
5854 Not Sold Individually Key 20x12 1
Note:
Provide all nameplate details from gear
box label when ordering spare parts.
If component damage
occurs, Gullco strongly
recommends replacing
the KBM-18-127 Gearbox
Sub Assembly, as it is
more readily available and
has been precision
assembled & adjusted.
Special tooling and
procedures are required
to rebuild these
gearboxes and therefore
not recommended.
