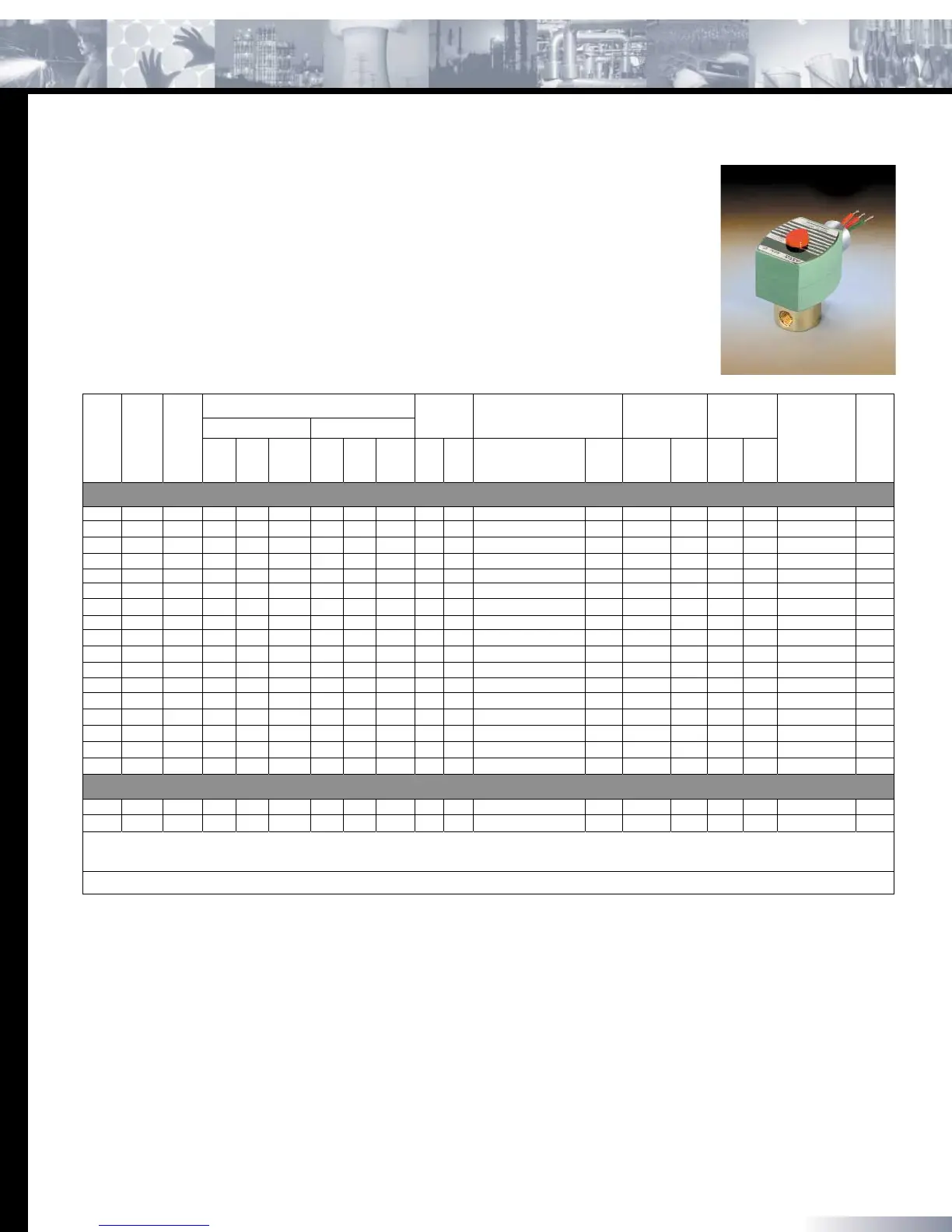

Express Catalog 4
8262
General Service Solenoid Valves
Direct Acting
• Brass or Stainless Steel Bodies
Features
• Reliable, proven design.
• Small poppet valves for tight shutoff.
• Mountable in any position.
• Brass body construction for general atmospheres;
Stainless Steel for corrosive atmospheres.
Pipe
Size
(ins.)
Orifice
Size
(ins.)
Cv
Flow
Factor
Operating Pressure Differential (psi)
Max.
Fluid
Temp. ˚F
Brass Body
Stainless
Steel Body
Watt Rating/
Class of Coil
Insulation ➁
Voltage MSA #
Max. AC Max. DC
Air-
Inert
Gas
Water
Lt. Oil
@ 300
SSU
Air-
Inert
Gas
Water
Lt. Oil
@ 300
SSU
AC DC
Catalog
Number
UL ➂
Listing
Catalog
Number
UL ➂
Listing
AC DC
NORMALLY CLOSED (Closed when de-energized), NBR Disc
1/8 3/32 .20 - - - 150 140 145 - 120 8262G14
❍
-
❍
- 10.6/F 12/DC 20411
1/8 1/8 .34 155 180 140 - - - 180 - 8262G2
❍
-
❍
6.1/F - 120/60, 110/50 20389
1/8 1/8 .34 155 180 140 - - - 180 - EF8262G2
❍
-
❍
6.1/F - 120/60, 110/50 20391
1/8 1/8 .34 100 - - - - - 180 - X8262C2-TPL 13200
❍
-
❍
15.3/F - 120/60, 110/50 00951
1/8 1/8 .34 155 180 140 - - - 180 - P8262C2
❍
-
❍
6.1/F - 120/60, 110/50 00954
1/8 1/8 .34 155 180 140 - - - 180 - PSF8262C2
❍
-
❍
6.1/F - 120/60, 110/50 00955
1/4 3/64 .06 750 750 500 - - - 180 - -
❍
8262G80
❍
6.1/F - 120/60, 110/50 20441
1/4 3/32 .17 360 340 160 - - - 180 - 8262G20
❍
-
❍
6.1/F - 120/60, 110/50 20417
1/4 1/8 .35 140 165 90 - - - 180 - 8262G22
❍
-
❍
6.1/F - 120/60, 110/50 20422
1/4 1/8 .35 300 300 200 - - - 180 - 8262G232
❍
- - 10.1/F - 120/60, 110/50 20497
1/4 5/32 .50 180 200 145 - - - 180 - 8262G202
❍
-
❍
10.1/F - 120/60, 110/50 20461
1/4 7/32 .72 90 100 100 - - - 180 - 8262G208V
❍
-
❍
10.1/F - 120/60, 110/50 20474
1/4 7/32 .85 40 50 40 - - - 180 - 8262G13
❍
-
❍
6.1/F - 120/60, 110/50 20404
1/4 9/32 .88 90 100 90 - - - 180 - 8262G212
❍
-
❍
17.1/F - 120/60, 110/50 20484
1/4 9/32 .96 - - - 15 16 16 - 120 8262G90
❍
-
❍
- 10.6/F 12/DC 20451
1/4 9/32 .96 27 36 28 - - - 180 - 8262G90
❍
-
❍
6.1/F - 120/60, 110/50 20445
1/4 9/32 .96 - - - 15 16 16 - 120 8262G90
❍
-
❍
- 10.6/F 24/DC 20452
NORMALLY OPEN (Open when de-energized), NBR Disc
1/8 1/16 .09 500 300 225 - - - 180 - 8262G91
●
-
●
6.1/F - 120/60, 110/50 20453
1/4 1/8 .35 130 110 100 - - - 180 - 8262G262 - 10.1/F - 120/60, 110/50 20501
Notes: ➁ On 50 hertz service, the rating for the 6.1/F solenoid is 8.1 watts.
➂ ❍ Safety Shutoff Valve; ● General Purpose Valve. Refer to Engineering Section (Approvals) for details.
EF = Explosionproof, X with TPL 13200 = Special gasketed panel mount, P = Panel mounted, SF = Class F - High temperature - Spade terminals, V = Viton
7
