2017_E_TYPE-HL.doc Page 29 of 55 24-Oct-2017
20. Close the doors and cure the oven as per Section 4.4.
Caution: Do not proceed further without curing the unit!
21. After the cure cycle, shut off the power and open the panel door and remove the yellow
jumper wire for the oxidizer preheat cycle. Close the panel door.
22. Open the firing valve on the oxidizer burner.
23. Turn on the water supply.
24. Replace the cart.
25. The oven is now ready to run.
Note: The oxidizer flame may need to be adjusted to ensure proper heat-up to processing
temperature. This may be accomplished while the burner is operational as described in
Section 4.3 - Step #21.

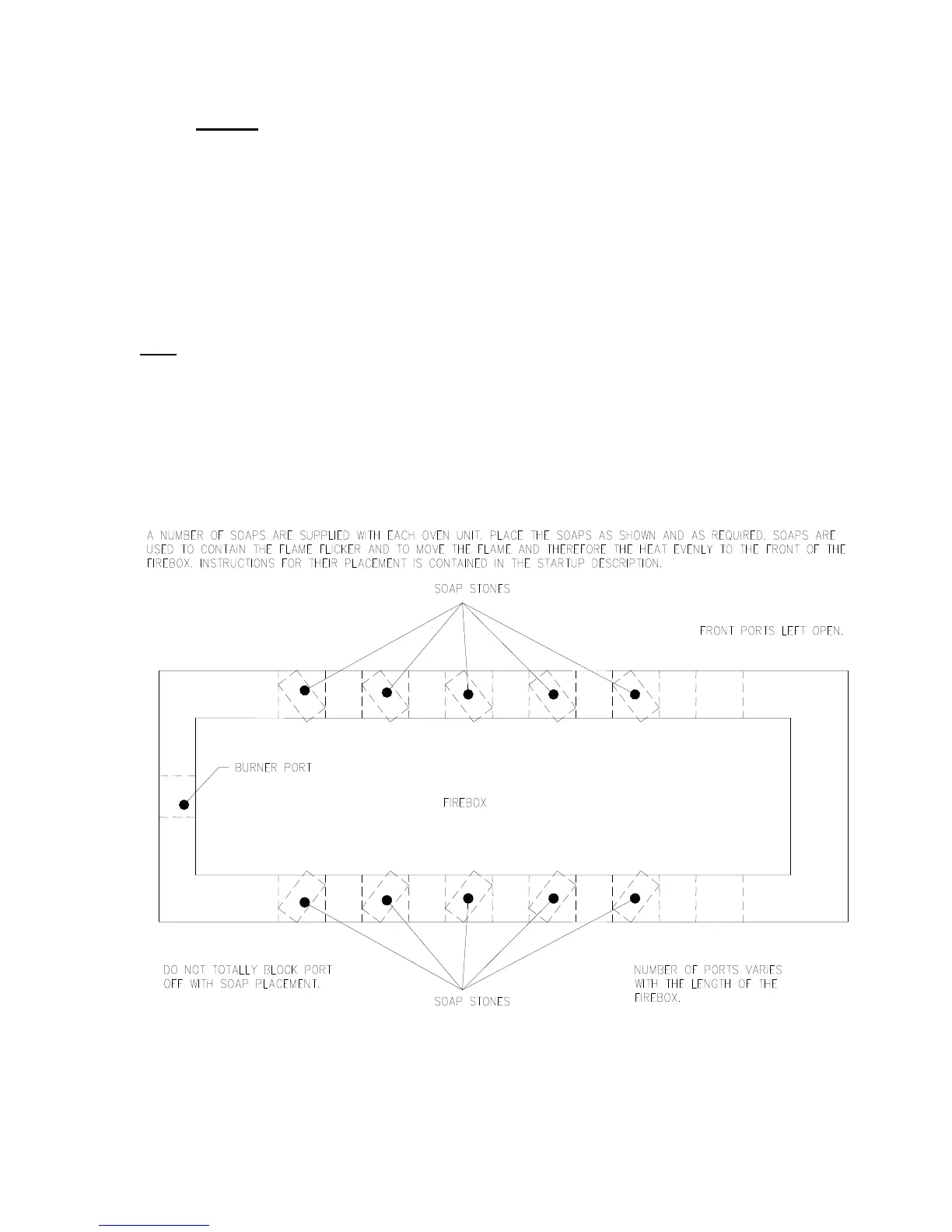

Figure 4.1 Placements of Firebrick Soaps.
