GW Instek GSP-9300 Quick Start Guide

GETTING STARTED
17

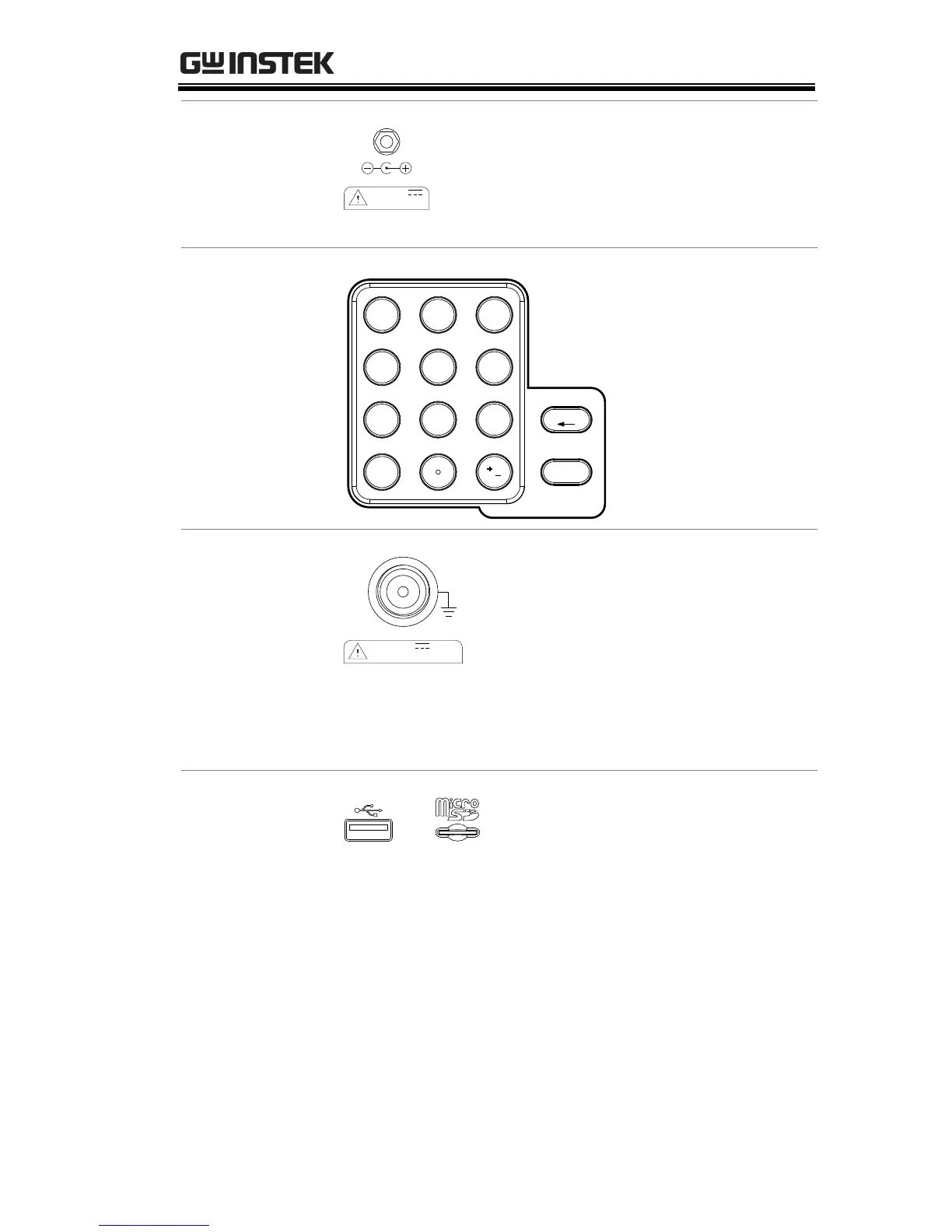

DC power supply
500mA MAX.
DC 7V
OUTPUT
SMB port supplies power for
optional accessories.
 DC +7V
 500mA Max.
Numeric keypad
7
4
1
0
8
5
2
9
6
3
/
Enter
BK SP
The numeric
keypad is used to
enter values and
parameters. It is
often used in
conjunction with
the arrow keys and
scroll wheel.
TG output port
REV PWR +30dBm
TG OUTPUT 50
W
MAX.DC ±50V
The Tracking Generator (TG)
output source.
 N-type: female
 Input impedance: 50Ω
 Output power: -50dBm to 0dBm
 Maximum reversed power:
+30dBm
USB A, Micro SD
USB A port, Micro SD port for
saving/recalling settings/files.
