Installation Manual
H3C S1526 Smart Ethernet Switch
Chapter 2 Installation
2-6
I.
II.
2.3 Connecting the Cables
2.3.1 Connecting Devices to the Switch
Connect the device to the Ethernet port
Use either crossover cables or straight through cables to
connect the PC(s) or other device(s) to the Ethernet ports on the
switch.
Connect the device to the uplink port
z If the 10/100/1000Base-T Ethernet port is to be used as the
uplink port, connect the device to it with either a crossover
cable or a straight through cable.
z If the SFP module port is to be used as the uplink port,
connect the SFP module to it firstly, and then connect the
LC connector of the optical fiber to the SFP module, as
shown in the following figure.

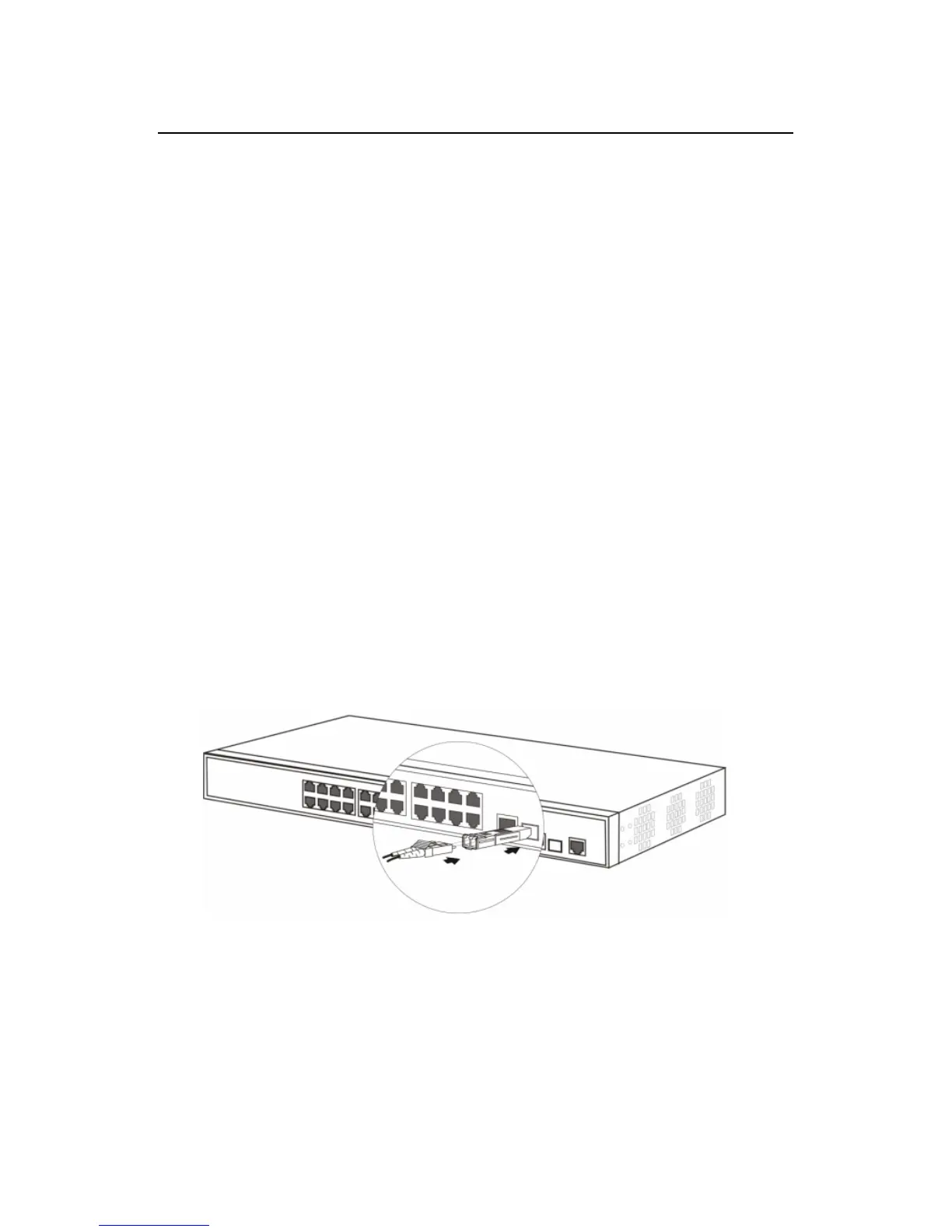

Figure 2-4 Connecting to the SFP module port
