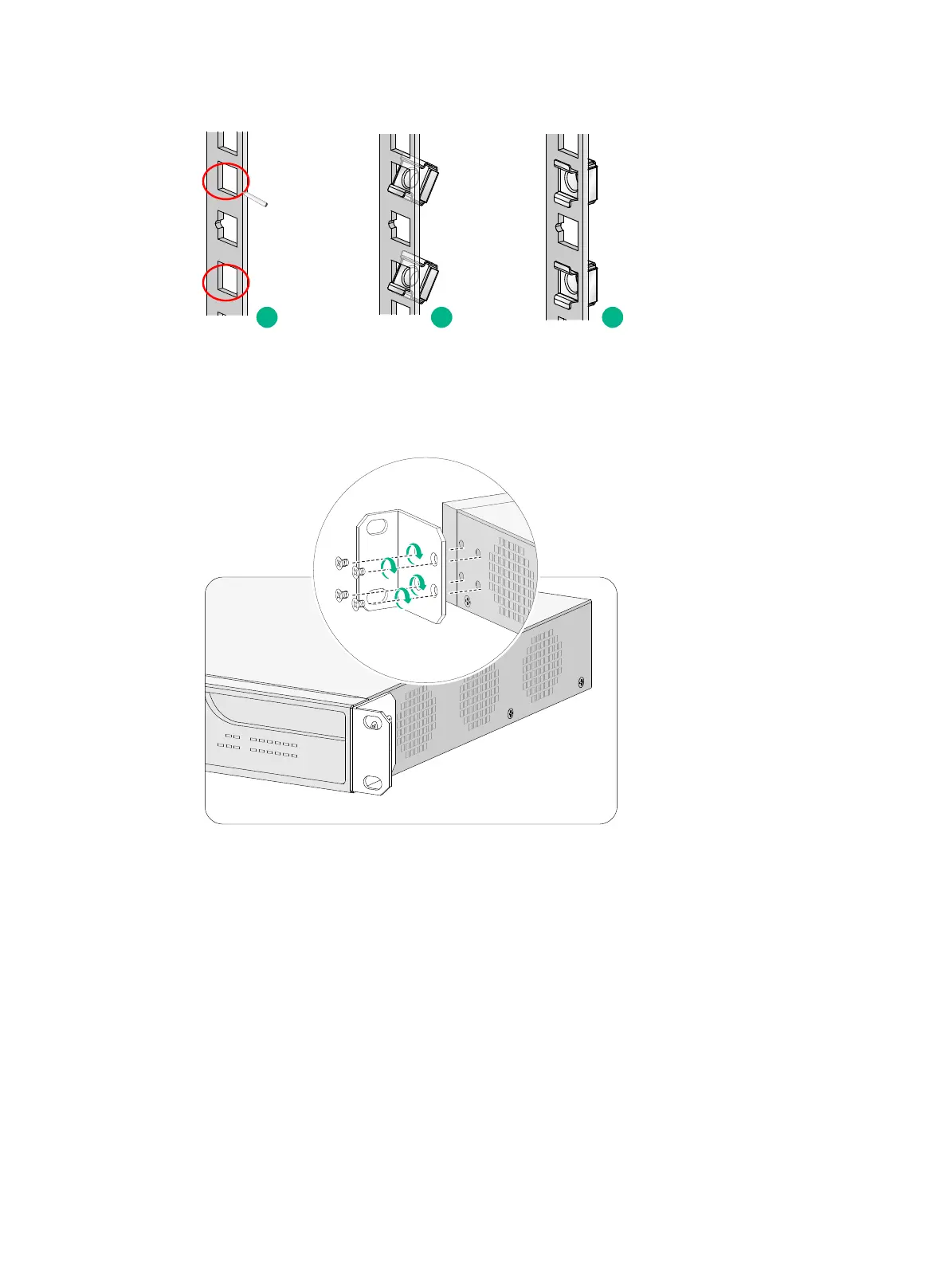

Figure2-8 Installing cage nuts
5. Attach the front mounting brackets to both sides of the firewall with M4 screws provided with the
firewall.
Figure2-9 Attaching the front mounting brackets to the firewall
6. Mount the firewall in the rack. Use M6 screws to secure the mounting brackets to the front rack
posts.
