Connecting an AC power cord
Connecting an AC power cord for an F1005 or F1010 firewall
1. Attach the hooks of the power cord retainer clip into the holes on the top of the AC-input power
receptacle, and pull the power cord retainer clip upwards.
2. Connect one end of the AC power cord to the AC-input power receptacle on the firewall.
3. Pull the power cord retainer clip downwards and secure the connector to the power receptacle.
4. Connect the other end of the power cord to an AC power source.

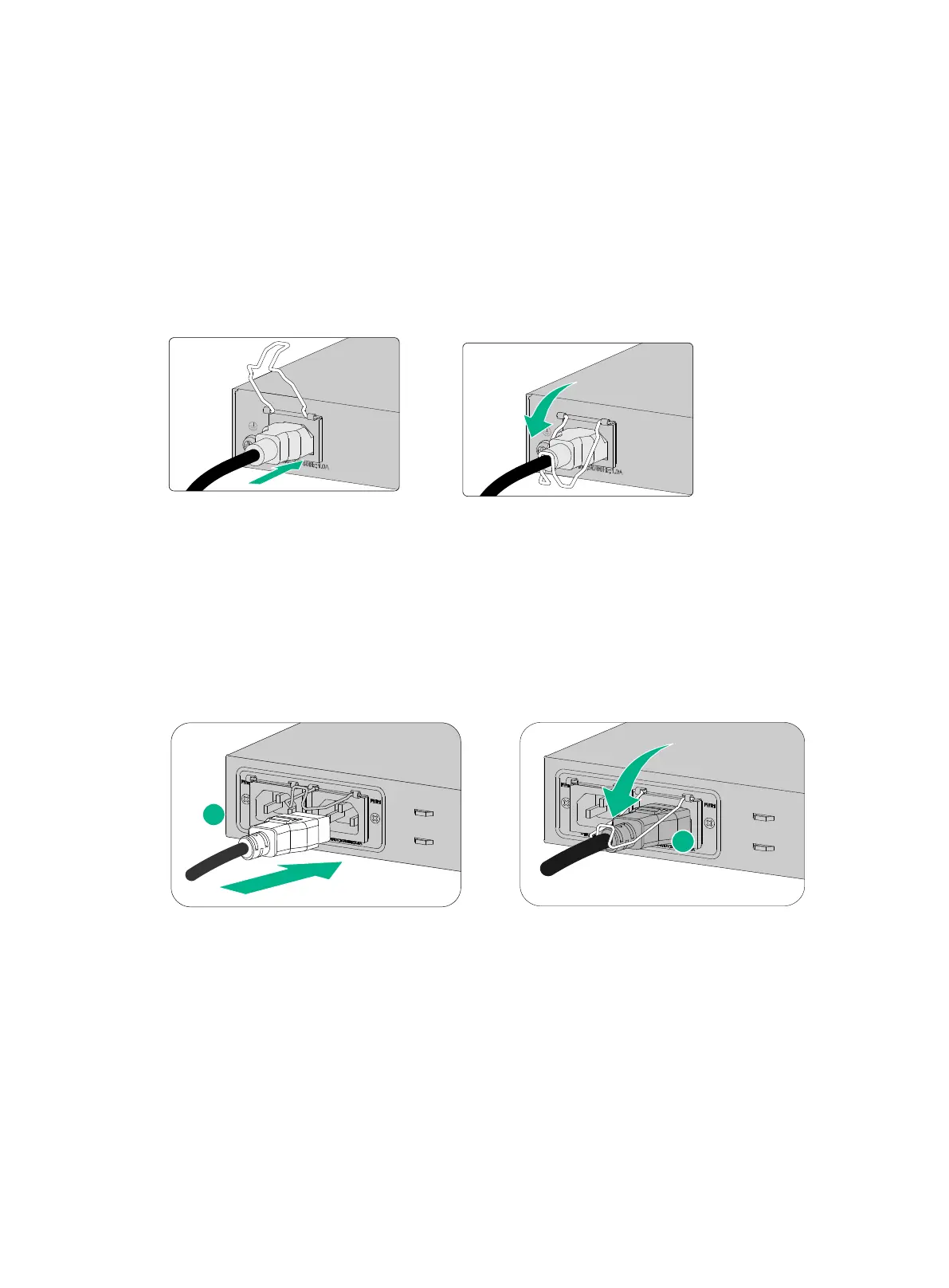

Figure2-23 Connecting an AC power cord for an F1005 or F1010 firewall
Connecting an AC power cord for an F1020, F1030, F1050, or F1060 firewall
1. Connect the connector of the AC power cord to the target AC power receptacle on the rear
panel of the chassis. Then use a power cord retainer clip (see Figure2-24) or a cable tie (see
Figure2-25) to secure the power cord.
2. Connect the other end of the power cord to an AC power source.
Figure2-24 Connecting an AC power cord (using a power cord retainer clip to secure the
power cord)
