H3C SecPath F1020 User Manual

9-60
9 Appendix C Cables
Console cable
RJ-45 to DB9 console cable
An RJ-45 to DB9 console cable is used to connect the console port on the firewall to the serial port on
a configuration terminal (a PC for example):
•
Connect the DB9 female connector of the cable to the 8-core serial port on the configuration
terminal.
•
Connect the RJ-45 connector of the cable to the console port on the firewall.

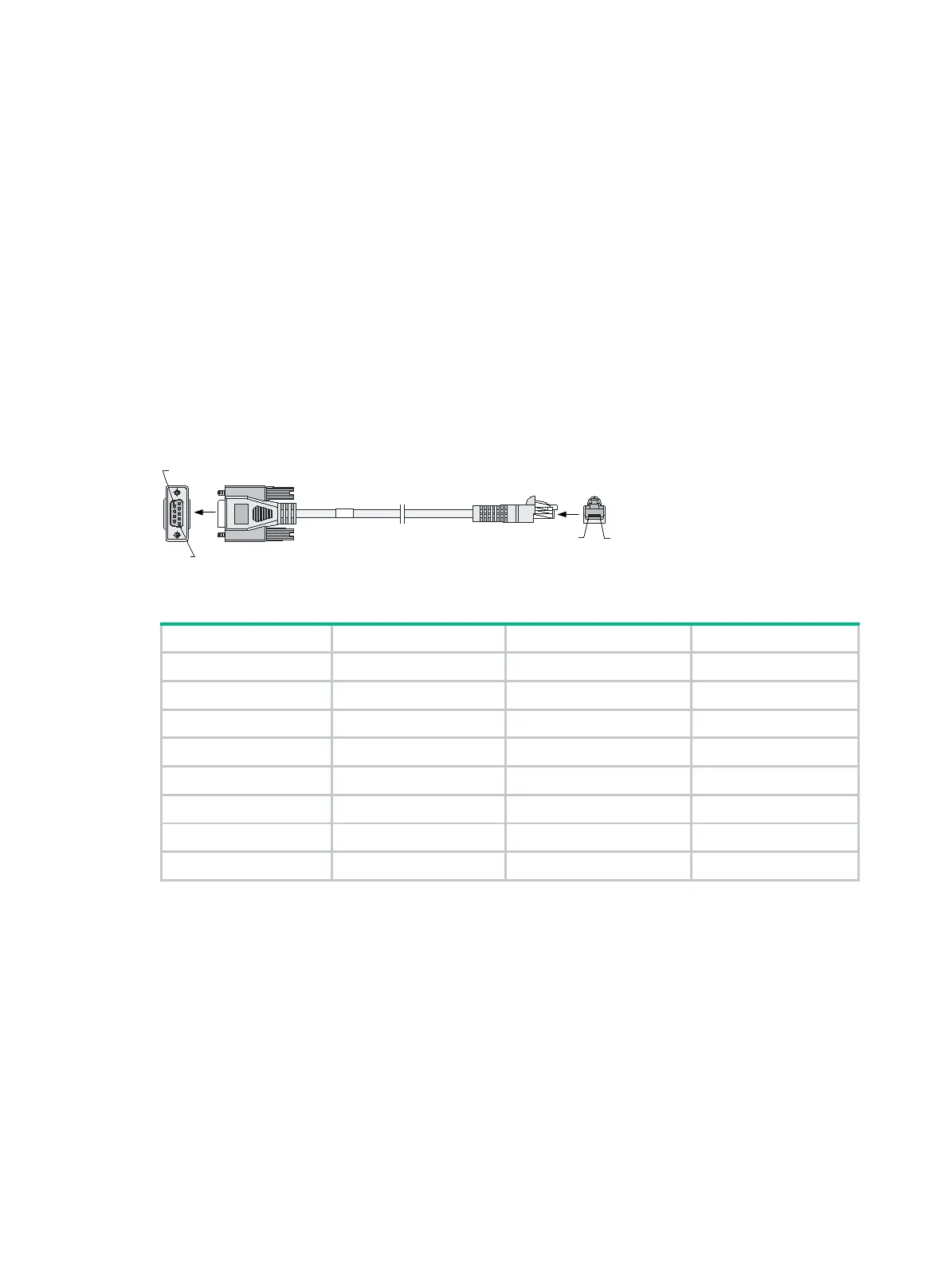

Figure9-1 RJ-45 to DB9 console cable
Table9-1 RJ-45 to DB9 console cable pinouts
RJ-45
Signal
Direction
DB-9
1 RTS ← 7
2 DTR ← 4
3 TXD ← 3
4 CD → 1
5 GND - 5
6 RXD → 2
7 DSR → 6
8 CTS → 8
Micro USB console cable
A micro USB console cable is used to connect the micro USB console port on the firewall to the USB
port on a configuration terminal (a PC for example):
•
Connect the USB Type A connector of the cable to the USB port on the configuration terminal.
•
Connect the USB Type mini-A/B connector to the micro USB console port on the firewall.
W
B
Pos
.8Pos.
1
B
A
Pos.
9
Pos
.1
A
