H3C SecPath F1020 User Manual

7-47
Table7-1 displays the slots available for interface module installation.
Table7-1 Interface module and device slot compatibility
Firewall model Slot number Slot specification
Available interface
modules
F1005/F1010
N/A
N/A Not supported
F1020
Slot 1
Low speed
• NSQM1GT4PFC
• NSQM1GP4FBA
F1030/F1040/F1050/F1060/
F1070/F1080
Slots 1 and 2
Low speed
• NSQM1GT4PFC
• NSQM1GP4FBA
F1090
Slots 1 to 3 High speed NS-NIM-TG6A
Slots 2 to 4
Low speed
• NSQM1GT4PFC
• NSQM1GP4FBA
NSQM1GT4PFC
The NSQM1GT4PFC interface module provides four 10/100/1000BASE-T Ethernet copper ports.
•
When the firewall is operating correctly, the four ports operate as common data ports.
•
When the firewall is powered off, the four ports are divided into two bypass port pairs with ports
0 and 1 in one pair and ports 2 and 3 in another pair. The two ports in a pair can act as the uplink
and downlink interfaces for a Layer 2 link and form a bypass link. This enables traffic to be
transmitted through the firewall even if the firewall is powered off and ensures service
continuity.

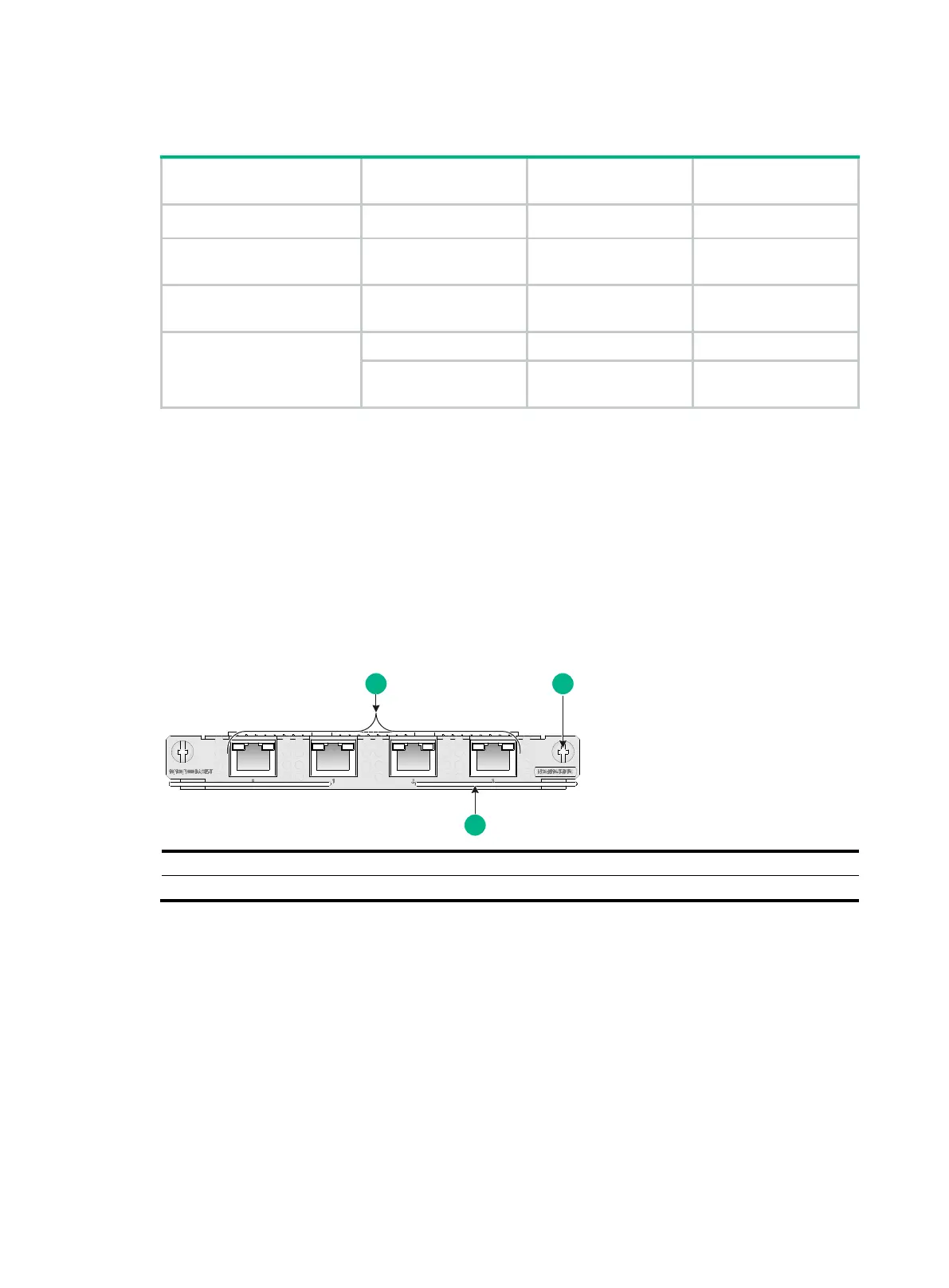

Figure7-11 Front panel of the NSQM1GT4PFC interface module
(1) 10/100/1000BASE-T copper ports
(2) Captive screw
(3) Ejector lever
NSQM1GP4FBA
The NSQM1GP4FBA interface module provides four 1000BASE-X fiber ports.
1 2
3
