H3C SecPath F1020 User Manual

7-46
F1090
The F1090 firewall provides the following ports on the front panel:
•
Fourteen 10/100/1000BASE-T autosensing Ethernet copper ports.
•
Eight 1000BASE-X fiber ports.
•
Eight 10GBASE-R fiber ports.
•
Two USB ports.
•
One console port.
•
One micro USB port.
•
Two drive slots.
•
Two management Ethernet ports.

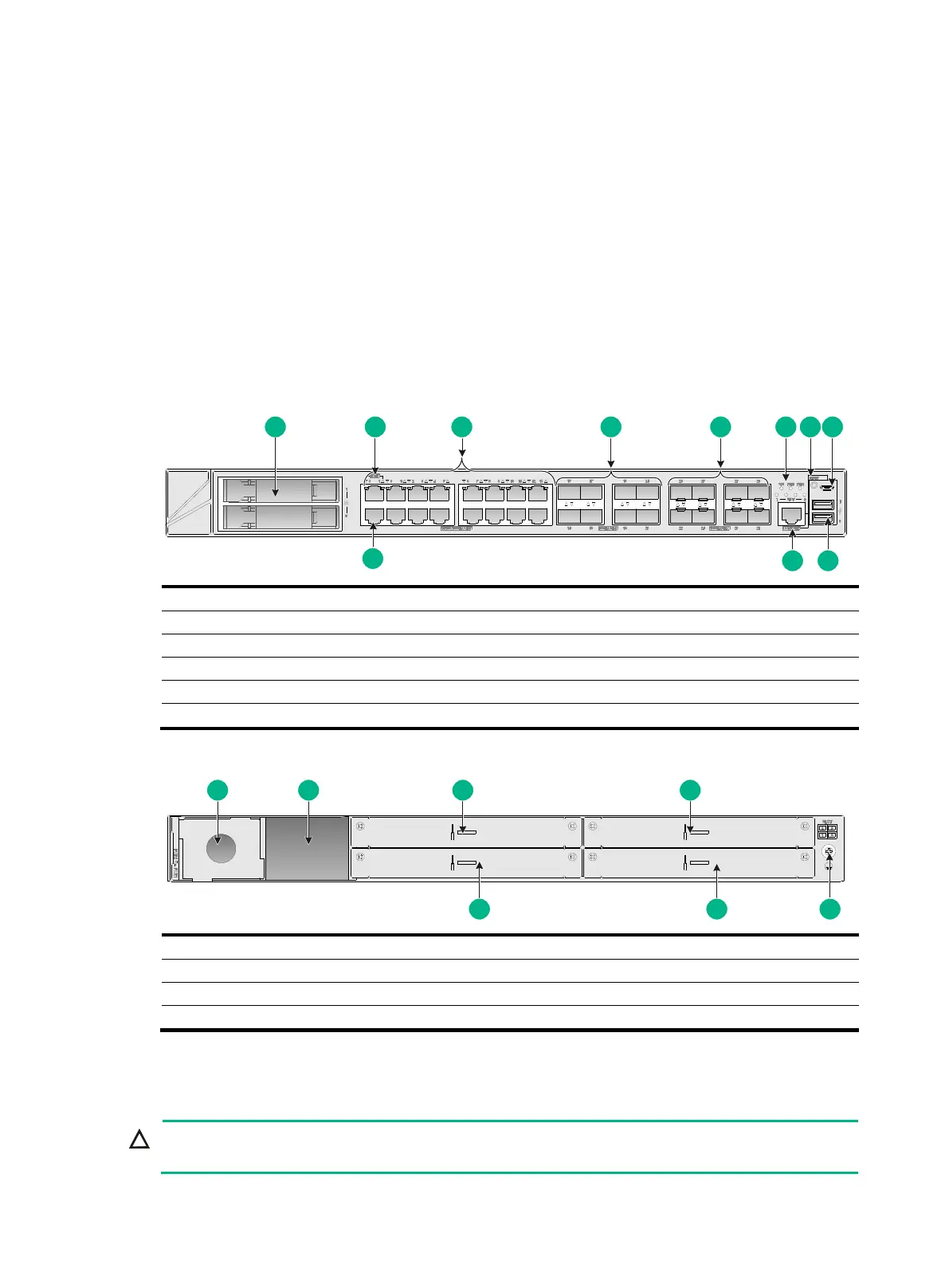

Figure7-9 Front panel
(1) Drive slots
(2) Management Ethernet port (1/MGMT)
(3) 10/100/1000BASE-T copper ports
(4) 10GBASE-R fiber ports
(5) 1000BASE-X fiber ports
(6) LEDs
(7) Reset button
(8) Micro USB port
(9) USB port (host mode, Type A connector)
(10) Console port
(11) Management Ethernet port (0/MGMT)
Figure7-10 Rear panel
(1) Power module slot 1
(2) Power module slot 2
(3) Interface module slot 1
(4) Interface module slot 4
(5) Grounding screw
(6) Interface module slot 3
(7) Interface module slot 1
Interface modules
CAUTION:
Do not hot swap interface modules.
10
11
9
1 2
3
5 6
7 8
4
1 2 3 4
67 5
