H3C SecPath F1020 User Manual

7-45
(5) Console port
(6) USB ports (host mode, Type A connector)
(7) Management Ethernet port (0/MGMT)

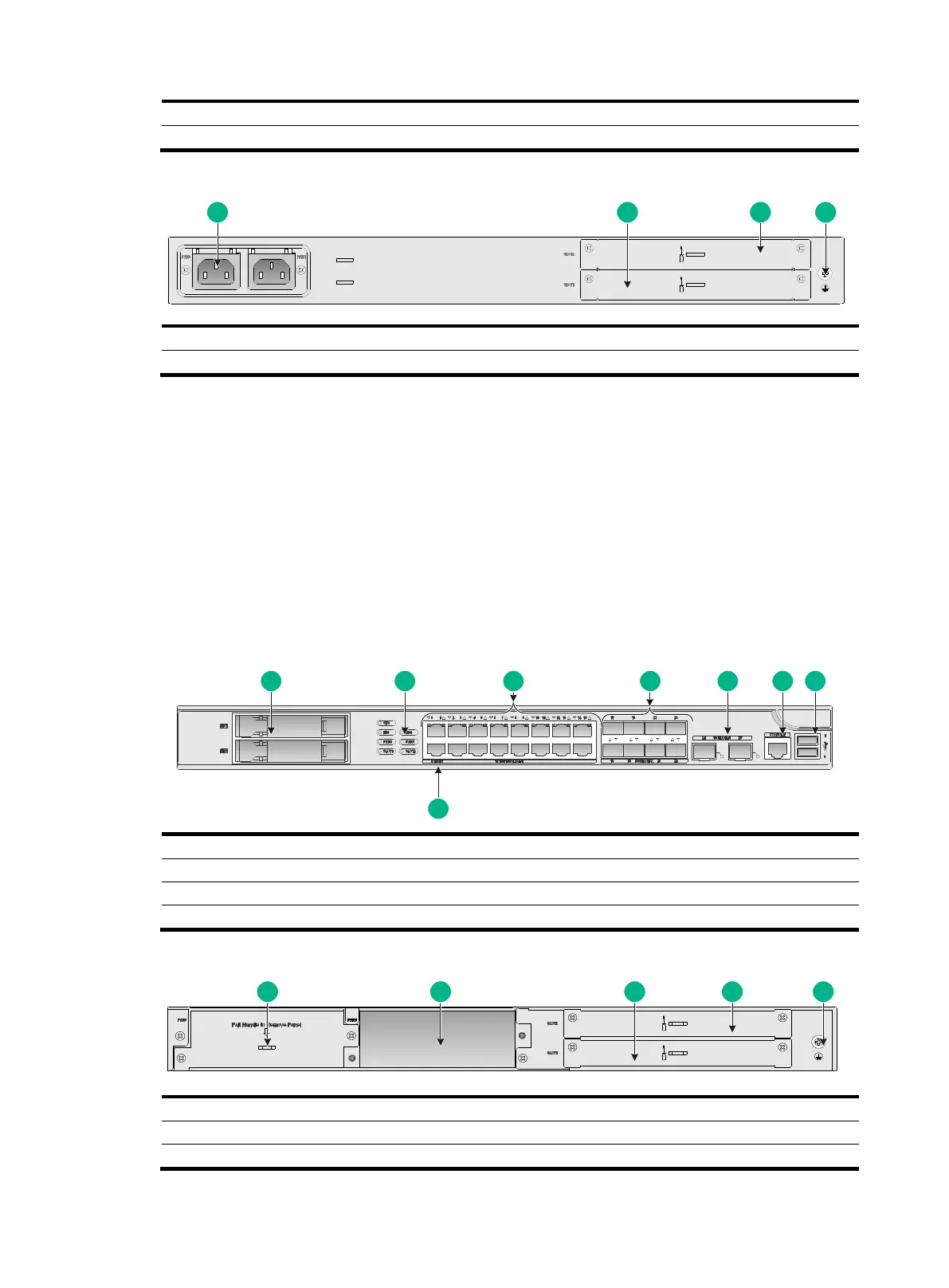

Figure7-6 Rear panel
(1) Power receptacle
(2) Interface module slot 1
(3) Interface module slot 2 (not supported)
(4) Grounding screw
F1070/F1080
The F1070 or F1080 firewall provides the following ports on the front panel:
•
Sixteen 10/100/1000BASE-T autosensing Ethernet copper ports.
•
Eight 1000BASE-X fiber ports.
•
Two 10GBASE-R fiber ports.
•
Two USB ports.
•
One console port.
•
Two drive slots.
Figure7-7 Front panel
(1) Drive slots
(2) LEDs
(3) 10/100/1000BASE-T copper ports
(4) 1000BASE-X fiber ports
(5) 10GBASE-R fiber ports
(6) Console port
(7) USB ports (host mode, Type A connector)
(8) Management Ethernet port (0/MGMT)
Figure7-8 Rear panel
(1) Power module slot 0
(2) Power module slot 1
(3) Interface module slot 1
(4) Interface module slot 2
(5) Grounding screw
1
2
3
4
1 2 3
4 6 75
8
1
2
5
3
4
