H3C SecPath F1020 User Manual

8-59

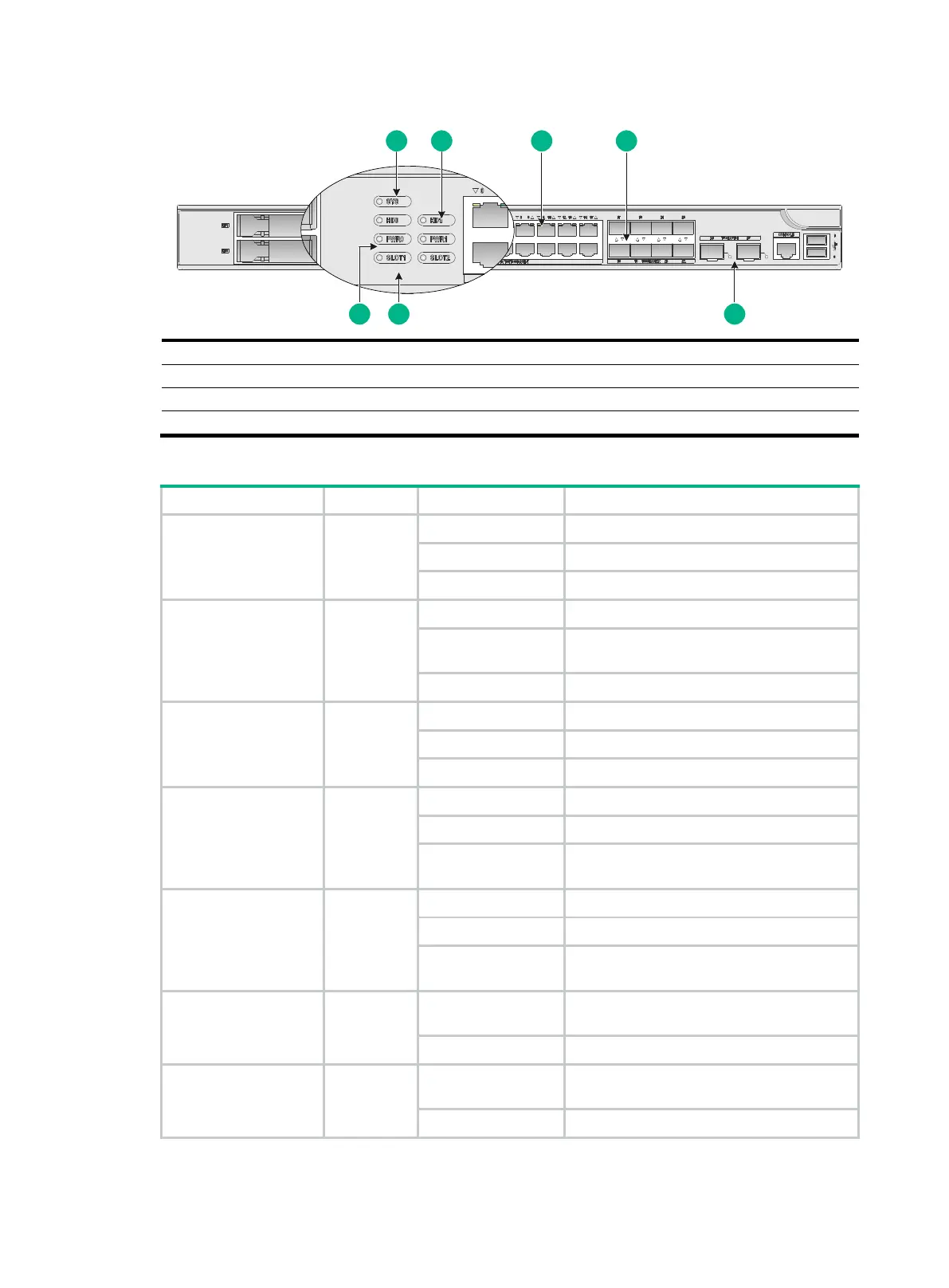

Figure8-1 LEDs
(1) System status LED
(2) Drive status LED
(3) 10/100/1000BASE-T copper port LED
(4) 1000BASE-X fiber port LED
(5) 10GBASE-R fiber port LED
(6) Interface module LED
(7) Power module LED
Table8-2 LED description
LED
Mark
Status
Description
System status LED SYS
Off The firewall is not powered on or has failed.
Slow flashing green The firewall is operating correctly.
Fast flashing green The firewall is loading software.
Drive status LED HD0, HD1
Off The firewall is not powered on or has failed.
Fast flashing green
Data is being read from or written to the
drive.
Steady green The drive is present and operating correctly.
10/100/1000BASE-T
copper port LED
10/100/100
0BASE-T
Off No link is present.
Steady green A link is present.
Flashing green The port is receiving and sending data.
1000BASE-X fiber port
LED
1000BASE-
X
Off No link is present.
Steady green A 1000 Mbps link is present.
Flashing green
The port is receiving and sending data at
1000 Mbps.
10GBASE-R fiber port
LED
10GBASE-
R
Off No link is present.
Steady green A 10 Gbps link is present.
Flashing green
The port is receiving and sending data at 10
Gbps.
Interface module LED
SLOT1,
SLOT2
Off
No interface module is present or the
interface module has failed.
Steady green The interface module is operating correctly.
Power module LED
PWR0,
PWR1
Off
No power module is present or the power
module has failed.
Steady green The power module is operating correctly.
1
2
7
6
3
4
5
