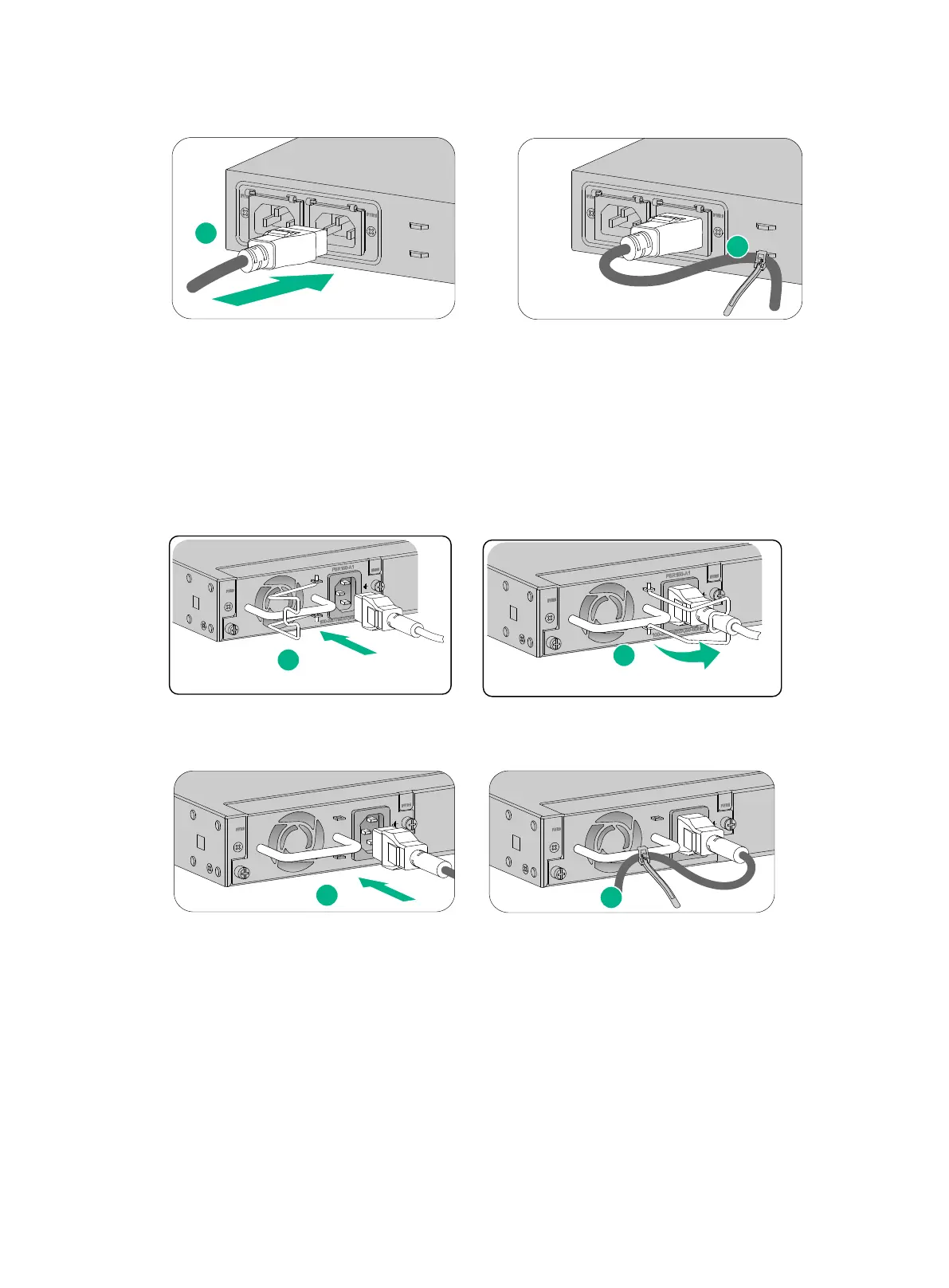

Figure2-25 Connecting an AC power cord (using a cable tie to secure the power cord)
Connecting an AC power cord for an F1070 or F1080 firewall
1. Connect the connector of the AC power cord to the AC power receptacle on the rear panel of
the chassis. Then use a power cord retainer clip (see Figure2-26) or a cable tie (see Figure2-27)
to secure the power cord.
2. Connect the other end of the power cord to an AC power source.
Figure2-26 Connecting an AC power cord (using a power cord retainer clip to secure the
power cord)
Figure2-27 Connecting an AC power cord (using a cable tie to secure the power cord)
Connecting an AC power cord for an F1090 firewall
1. Connect the female connector of the AC power cord to the AC-input power receptacle on the
power module.
2. Use a cable tie to secure the AC power cord to the power module handle.
3. Connect the other end of the power cord to an AC power source.
1
2
1
2
1
2
