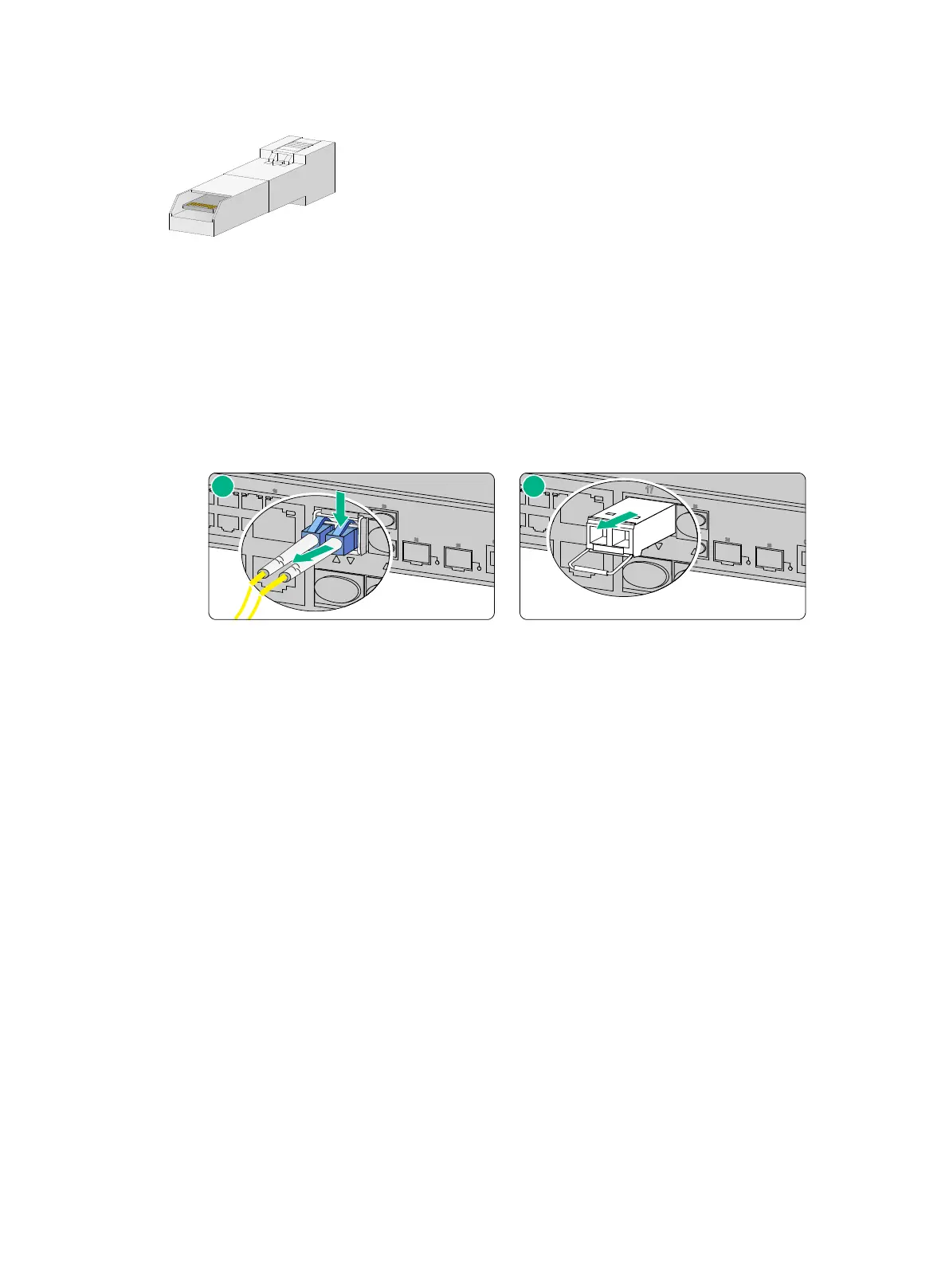

Figure4-5 Transceiver module golden plating
To replace a transceiver module:
1. Use the
shutdown command in interface view at the CLI to shut down the optical source
before you remove the fiber connector.
2. Remove the LC connectors with the optical fiber from the transceiver module, and install dust
caps to the LC connectors.
3. Pivot the clasp of the transceiver module down to the horizontal position, and gently pull the
transceiver module out.
Figure4-6 Removing the transceiver module
4. Install dust caps to the removed transceiver module, and put it into the package.
5. Install a new transceiver module. If you do not install a new transceiver module in the slot, install
a dust cap. For information about installing a transceiver module, see "Connecting a fiber port."
