27

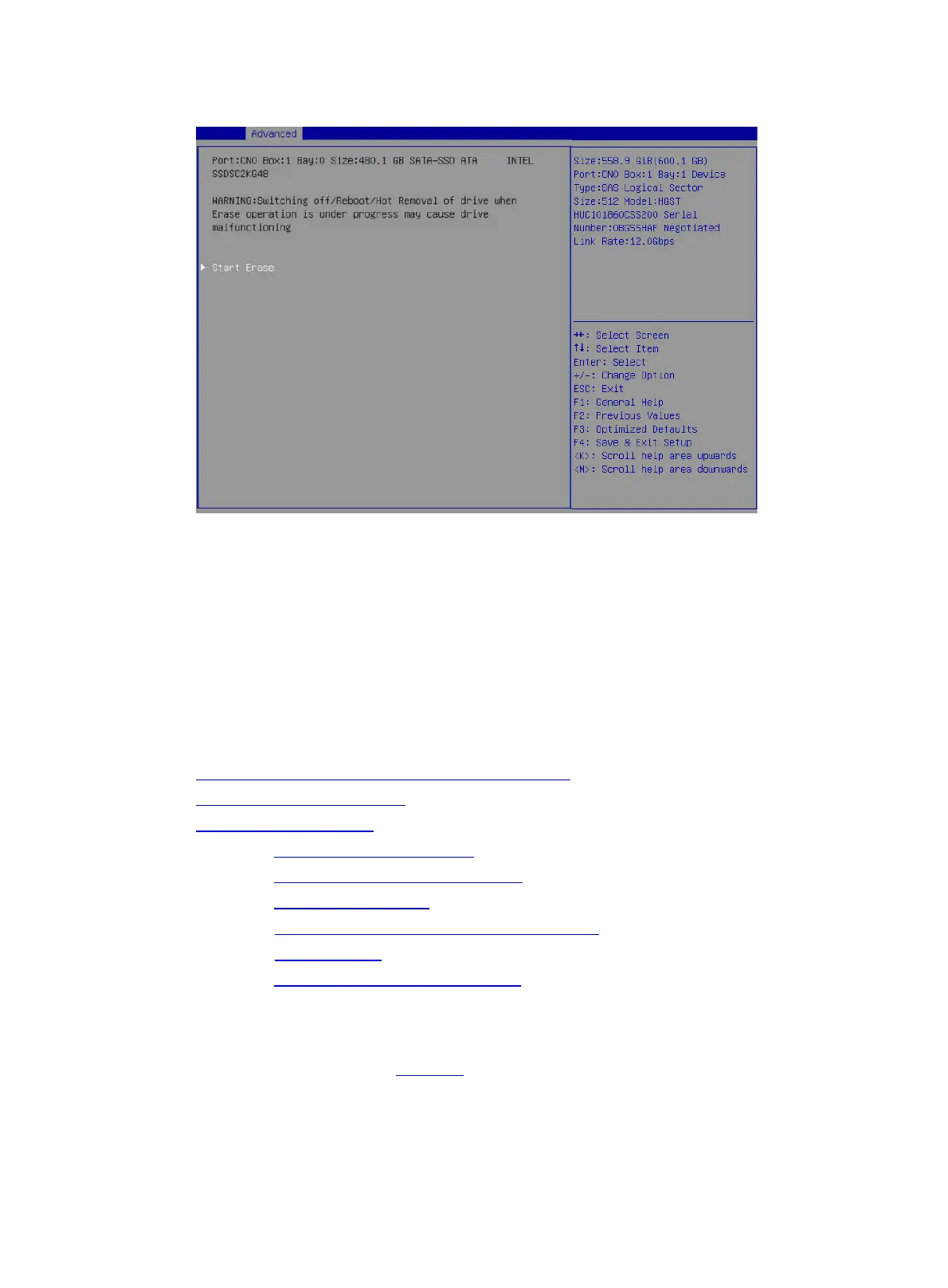

Figure 47 Erasing drives
Configuring RAID arrays in legacy mode
This section describes how to configure RAID arrays through a storage controller in legacy mode.
For more information about how to enter the BIOS and set the boot mode to legacy, see the BIOS
user guide for the server.
RAID array configuration tasks at a glance
To configure a RAID array in legacy mode, perform the following tasks:
Accessing the storage controller configuration screen
Switching the operating mode
Configuring a RAID array
(Optional.) Configuring hot spare drives
(Optional.) Configuring the primary boot drives
(Optional.) Deleting a RAID array
(Optional.) Scanning drives and viewing drive information
(Optional.) Locating drives
(Optional.) Clearing storage controller settings
Accessing the storage controller configuration screen
During server POST as shown in Figure 48, press Ctrl+A.
