5
2. Click the Advanced tab, select Network Stack Configuration, and then press Enter.
3. Set Network Stack, IPv4 PXE Support, and IPv6 PXE Support to Enabled.

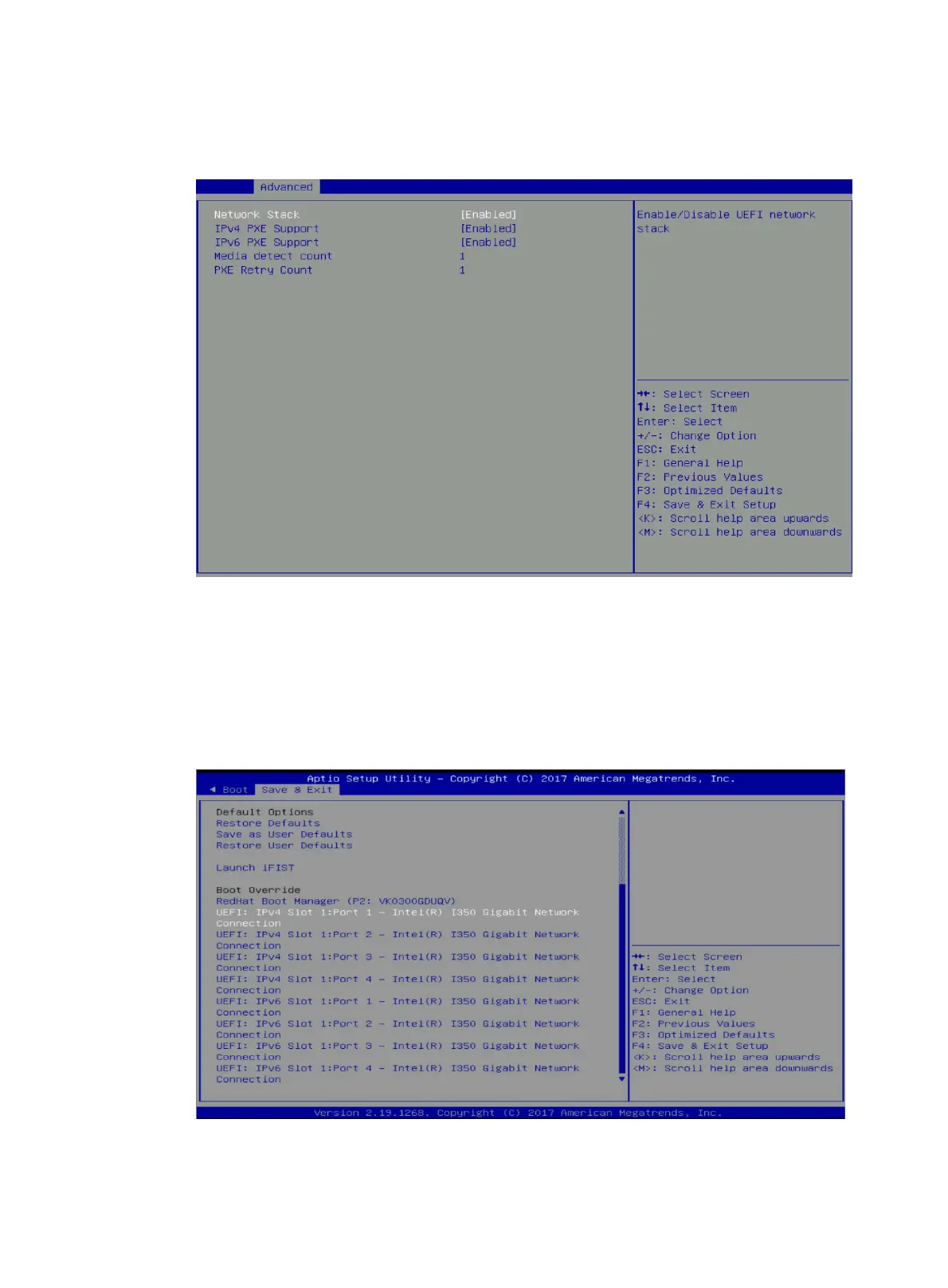

Figure 2 Enabling PXE
4. Press F4 to save the configuration and reboot the server.
5. Click the Save & Exit tab, and then select the boot option for PXE in the Boot Override area.
The boot options for UEFI and Legacy boot modes are different.
For UEFI boot mode, select the option corresponding to the port connecting to the PXE server.
As shown in Figure 3, port
1 connects to the PXE server, so you must select the option
corresponding to port 1.
Figure 3 PXE boot options in UEFI boot mode
In Legacy boot mode, all ports on the network adapter share the same PXE boot option.
