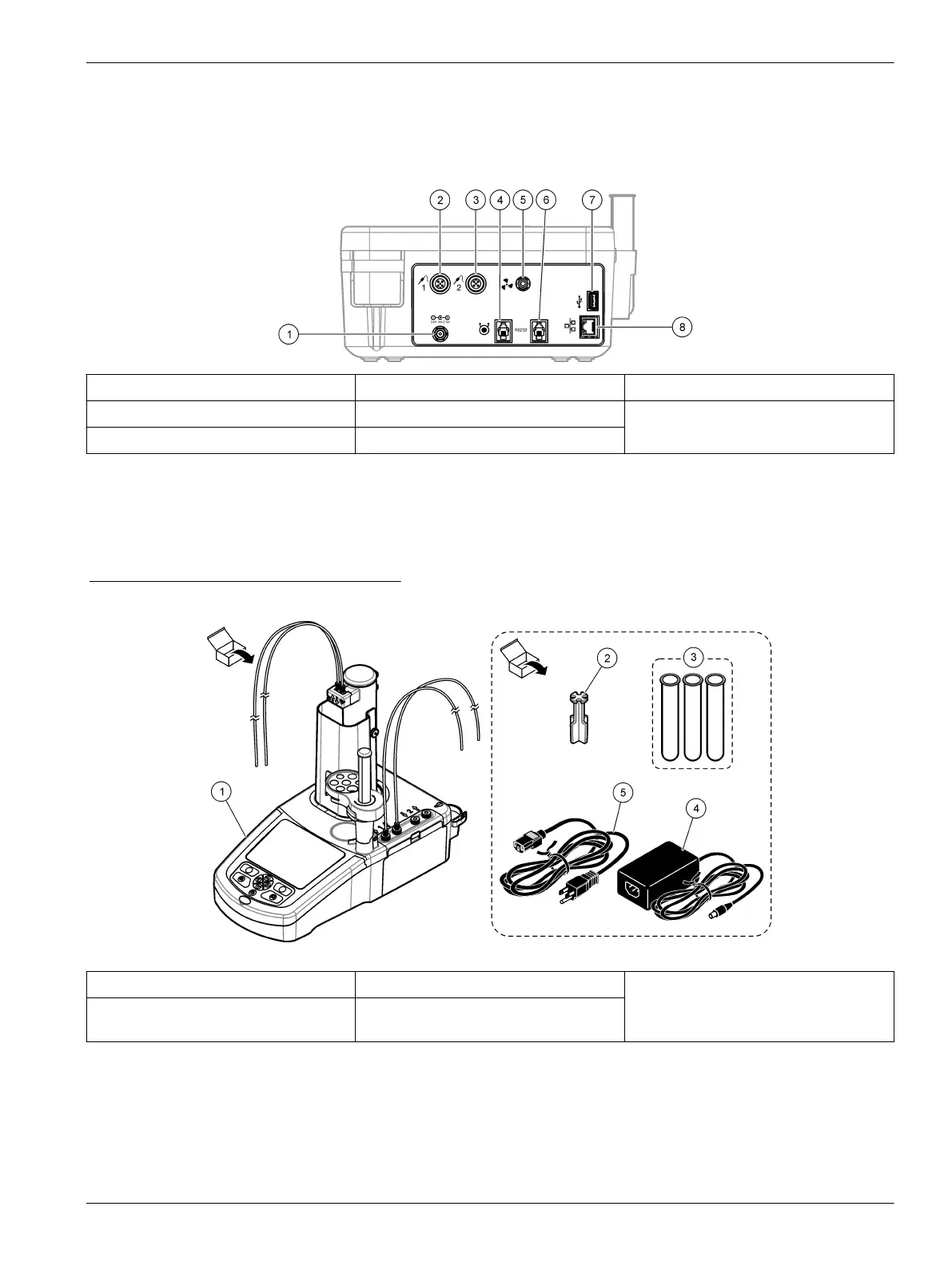

2.3 Instrument connections
Use the USB port on the side of the instrument for the USB applications key supplied with
the instrument. Use the USB port on the rear of the instrument to connect to a printer,
mouse, keyboard or a USB hub.
1 24 V external power supply port 4 External pump port 7 USB port
2 Sensor 1 port 5 External propeller port 8 Ethernet port
3 Sensor 2 port 6 Serial port
2.4 Product components
Make sure that all components have been received. Refer to the packing list in the box. If
any items are missing or damaged, contact the manufacturer or a sales representative
immediately.
Figure 1 Contents of the instrument box
Note: For identification, the outlet tube from the syringe is fitted with a blue marker.
1 Instrument 3 Sensor storage tubes (3x) 5 Power cord
2 Tube holder (1 for each syringe
position on the instrument)
4 Power supply
General information
9
