7.1.2 Transition
In “Transition” (Figure 7-5) the user can adjust the “Field Strength”, “Sync. Phase” and “Alternative Polarity”. The
description from capture 6.3.3 is valid, except “peak voltage” has been changed to “field strength”. The other
parameters stay equal, since an OCC will be applied to the coil antenna and is basically a Surge impulse.

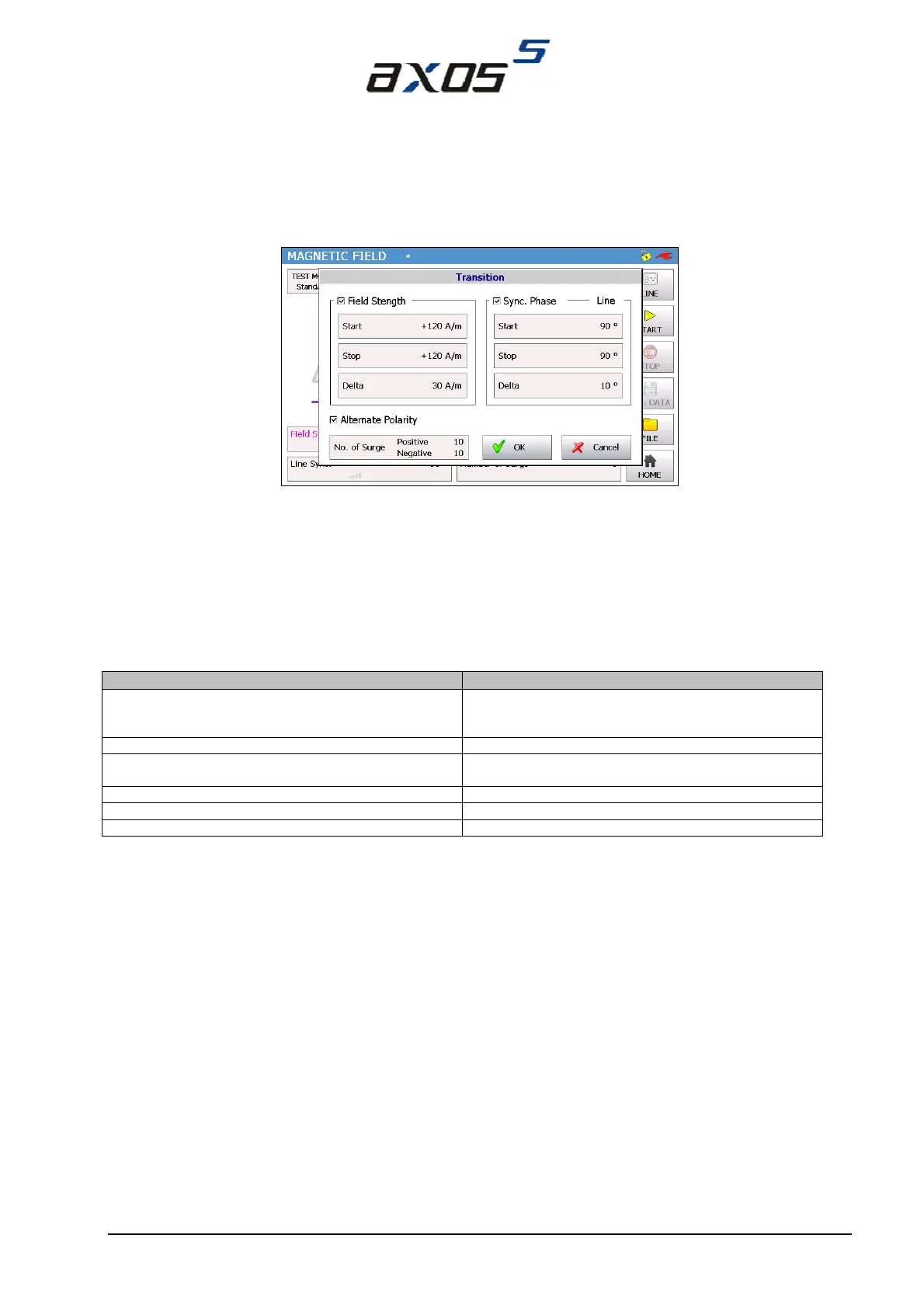

Figure 7-5: Magnetic field transition
When all parameters has been entered then simply confirming with ok and in the menu is showing “transition on”, this
indicates the settings will be applied to the coil antenna when pushing the “start” button. Furthermore, when test is
proceeding, the intervals for instance of the “field strength” gets displayed.
7.1.3 Properties
Position description
External (Pin11 on Aux) External condition (e.g. device or PLC signal), the
position becomes 1 and causes an action (Ignore,
Alarm, Test Stop or test stop & line off)
Line Current Limits the current (L, N, PE front view) to the EUT.
Action: Ignore, Alarm, Test stop, Test stop & line off Due to EUT fails, AXOS
5
causes an action which can
be: Ignore, Alarm, Test Stop, Test Stop & Line off.
Line off Voltage locked at L, N, PE when test has finished
Line on Voltage unlocked at L, N, PE when test has finished
Sound on or off Acoustic signal when test ends
Table 7-1: Magnetic field properties
