2 AXOS
5
Compact immunity test System
2 Product description
2.1 Basic information
The AXOS
5
compact immunity test system integrates all of the best pieces of our stand alone test systems into one
single economic solution. It combines 5 kV Burst/EFT, Surge combination wave, AC/DC Dips & Interrupts, along with
an integrated single-phase coupling / decoupling network into one compact system. This allows for quick and
completely automated testing to the most common IEC standards.
AXOS
5
can either be operated via front panel by large colour graphic touch screen interface or remotely from the PC.
The menu together with the availability of predefined test routines for different standards makes testing easy and
reliable, even for less frequently users.
All the test parameters can be varied in a broad range. Together with the ability of changing test parameters during
test, AXOS
5
is not only the ideal product for compliance and pre-compliance testing, it is useful for monitoring &
debugging function during design phase.
A wide range of cost-efficient and user friendly coupling / decoupling networks for power lines as well as for
symmetrical and asymmetrical data- and signal-lines are available as options.
In Figure 2-1 is the starting menu of the ASOX5 version displayed. The menu is fully controlled by a touch screen.
Every command is entered through the touch screen. By pressing the Surge, EFT/Burst, Voltage Dips or Magnetic field
an under menu gets open. If purchasing an individual version for Surge (includes Magnetic field), EFT/Burst and
Voltage Dips it shows only the particular function.

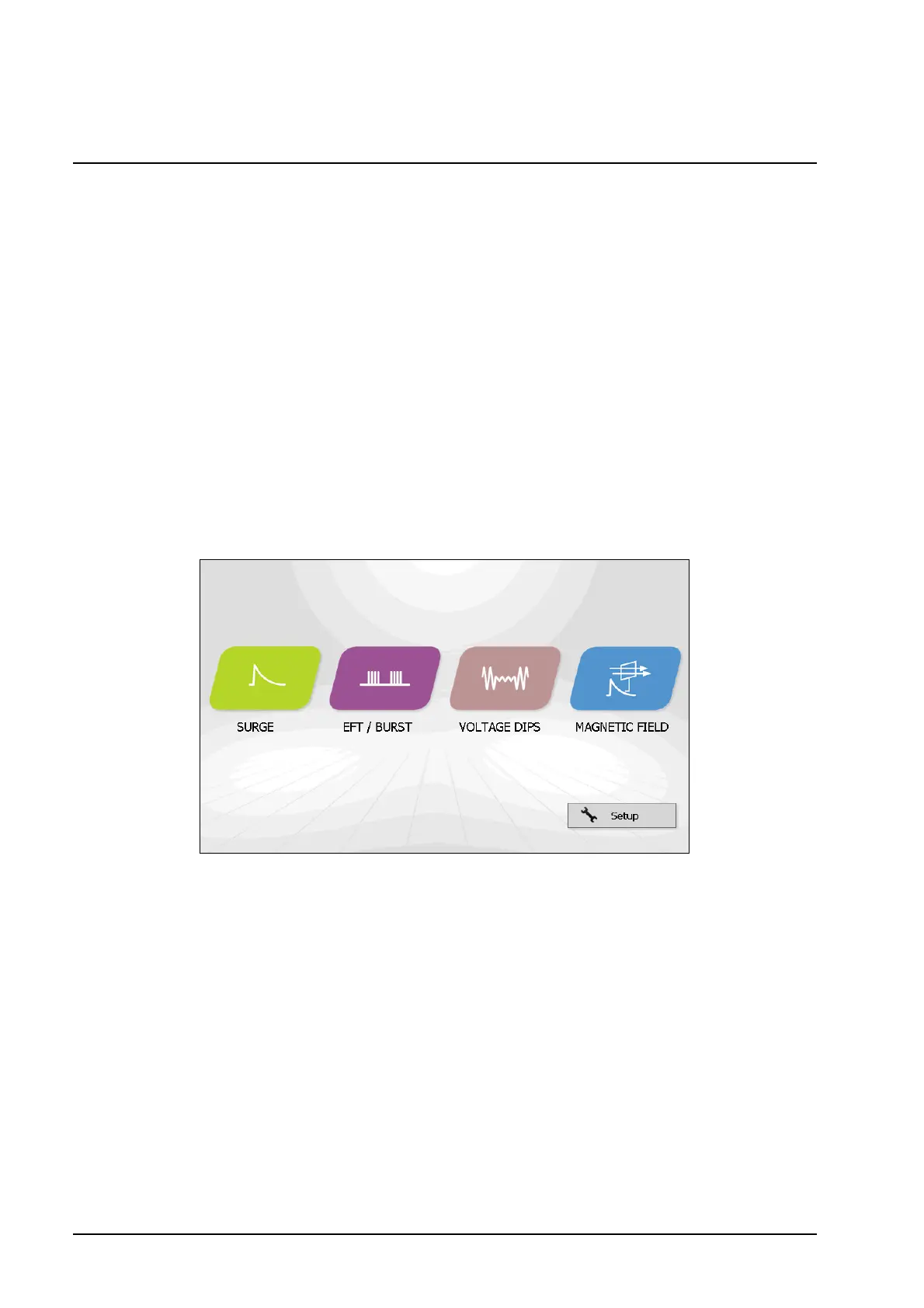

Figure 2-1: Start display
After selecting one of the functions as shown in the Figure 2-1, there are generally two operating modes of the menu
available. Only in pre-compliance it is possible to change parameters even though the EUT is testing. In addition, by
pressing a function parameter a basic description gets open and describes the characteristic of it. The values can be
directly specified as for each criteria necessary. The same is possible in standard operating mode. Additionally Ipeak
and Upeak to the EUT gets displayed on the screen.
It is possible to come back from every application to the start menu as shown in Figure 2-1, when pressing the “home”
button. Every test procedure stops.
The LED on every output & coupling paths flashes when specific paths has been in the menu selected. This selection
is equal for Surge, Burst as well as Voltage Dips & Interrupts.
