Haefely Technology AXOS5 - 10 Error Messages; Troubleshooting

AXOS
5
Compact immunity test System 31
10 Error Messages
10.1 Error messages
In the menu is a short summary of possible alarm messages which can occur when operating the AXOS
5
.
10.2 Troubleshooting
Alarm message Possible cause Action needed
Safety Circuit opened close Safety Circuit
tried to start a Test with open Safety Circuit close Safety Circuit and Start
Test again
no file defined in Setup Start File define a Start File
no valid file define a valid Start File
no valid file define a valid Start File
EUT requires more than 16 A support
current, may EUT defect, short circuit EUT
EUT requires more than 16 A support
current, may EUT defect, short circuit EUT,
protection of AXOS
5
EUT requires more than 16 A support
current, may EUT defect, short circuit EUT
EUT requires more than 16 A support
current, may EUT defect, short circuit EUT
-check Inominal of EUT (max.
support with AXOS5 16A)
-control EUT independently,
short circuit might occurred,
-External CDN necessary, if
higher Inominal required
1 x beep and automatic shut
down
at system startup any of internal supply
voltages (not 24V) are out of range
send AXOS
5
for repair
at system startup internal supply voltage 24V
is out of range
send AXOS
5
for repair
- bad or missing Function Key
- internal storage card missing or damaged
- go to Setup License Manager
and check for correct numbers
- send for repair
Frequency of EUT Supply Input is too high use EUT Supply Input voltage
with nominal frequency of 50 or
60 Hz
L and N on EUT Supply Input are exchanged Exchange L and N on EUT
Supply Input

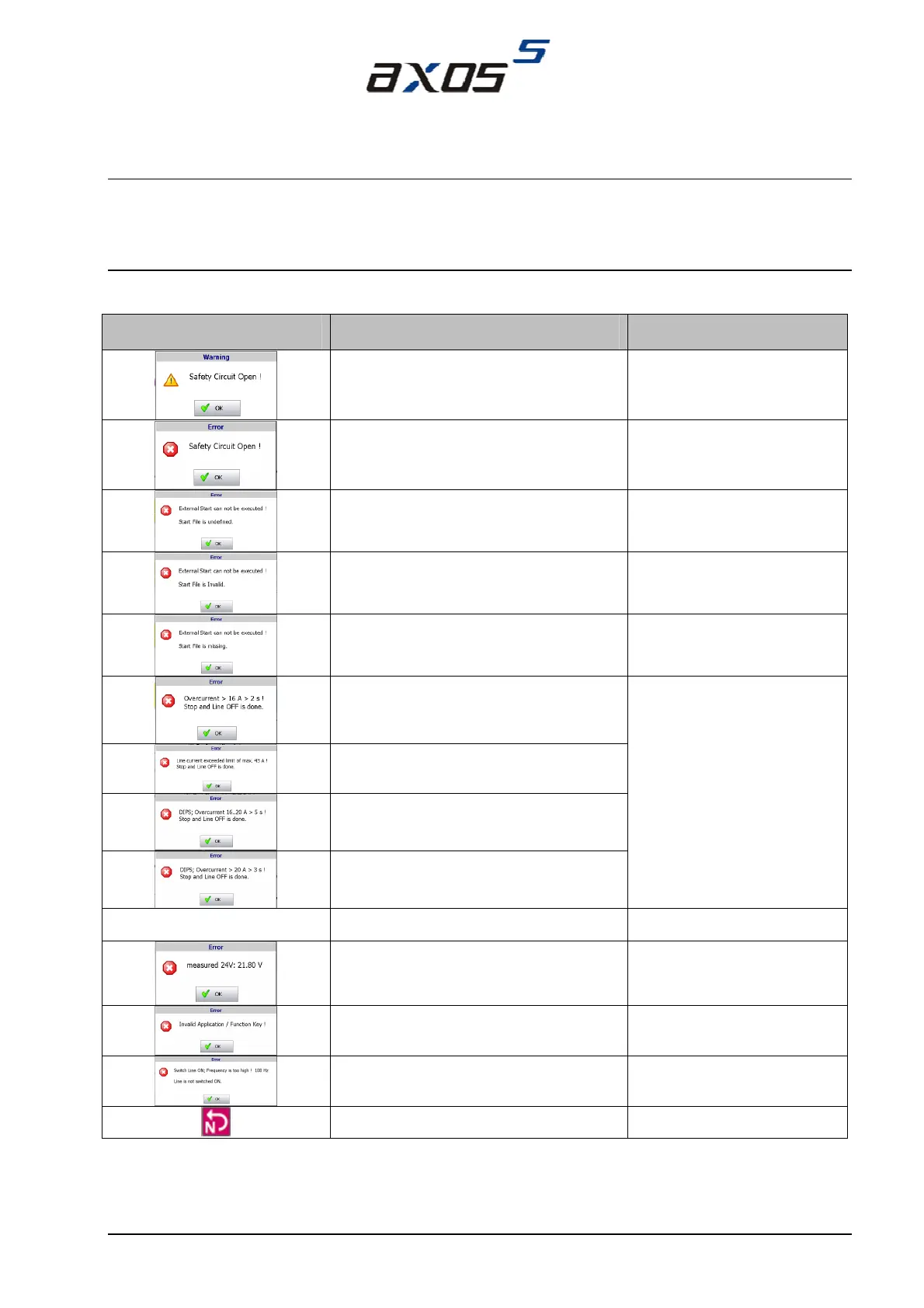

Table 10-1: Error messages
