8300 Low Energy Auto-Operator
Installation Instructions
I-EA00257 / 26790910
Rev 2, Rev Date: 1/30/19
Always visit www.hagerco.com for the latest Installation Instructions
HAGER COMPANIES 139 Victor Street, St. Louis, MO 63104 • (800) 325-9995
A/C WIRING
Warning:
Ensure all incoming electrical power is shut off before proceeding with any wiring to
Hager 8300 operator. Use only with wire harness provided; failure to do so may
result in damage to equipment or personal harm as well as voiding the warranty.
Connect the main power to the Black / White / Green conector on the back-plate.
Main power supply: 120VAC, 15A, Single Phase, 60hz.

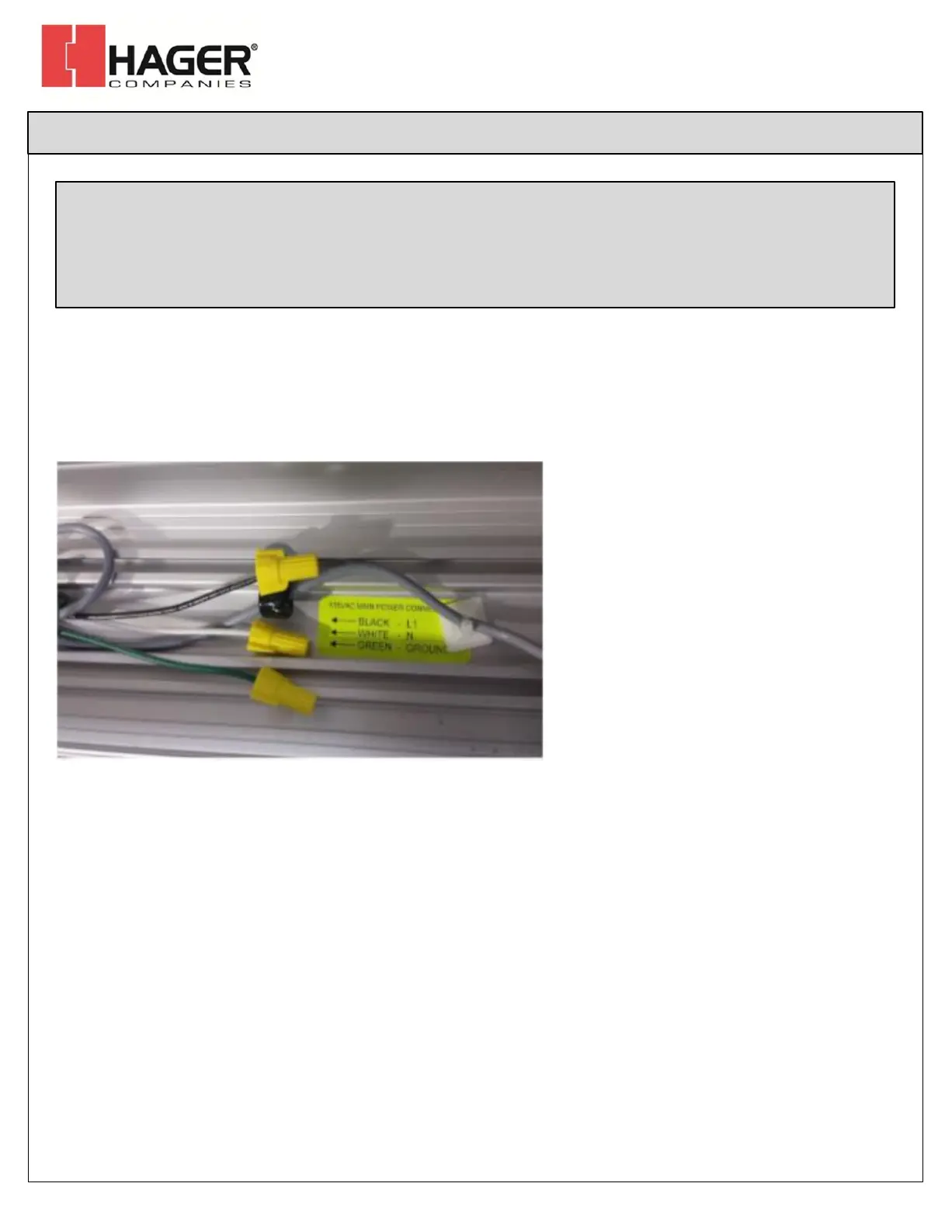

Attach the incoming 120VAC line to the wiring provided in the header shown below.
DO NOT TURN POWER ON until all remaining wiring has been completed.
BLACK: 120VAC Power
WHITE: Neutral
GREEN: Ground
Upon applying power, observe the adjustment board LED’s (page 10).
NORMAL OPERATION: DL3 will come on steady and then begin flashing after a few seconds.
FAULTY OPERATION: DL2 will be flashing red. This indicates…
An error condition exists – correct as necessary
Operator requires commissioning – see page 11.
Page 10 of 18
