8300 Low Energy Auto-Operator
Installation Instructions
I-EA00257 / 26790910
Rev 2, Rev Date: 1/30/19
Always visit www.hagerco.com for the latest Installation Instructions
HAGER COMPANIES 139 Victor Street, St. Louis, MO 63104 • (800) 325-9995

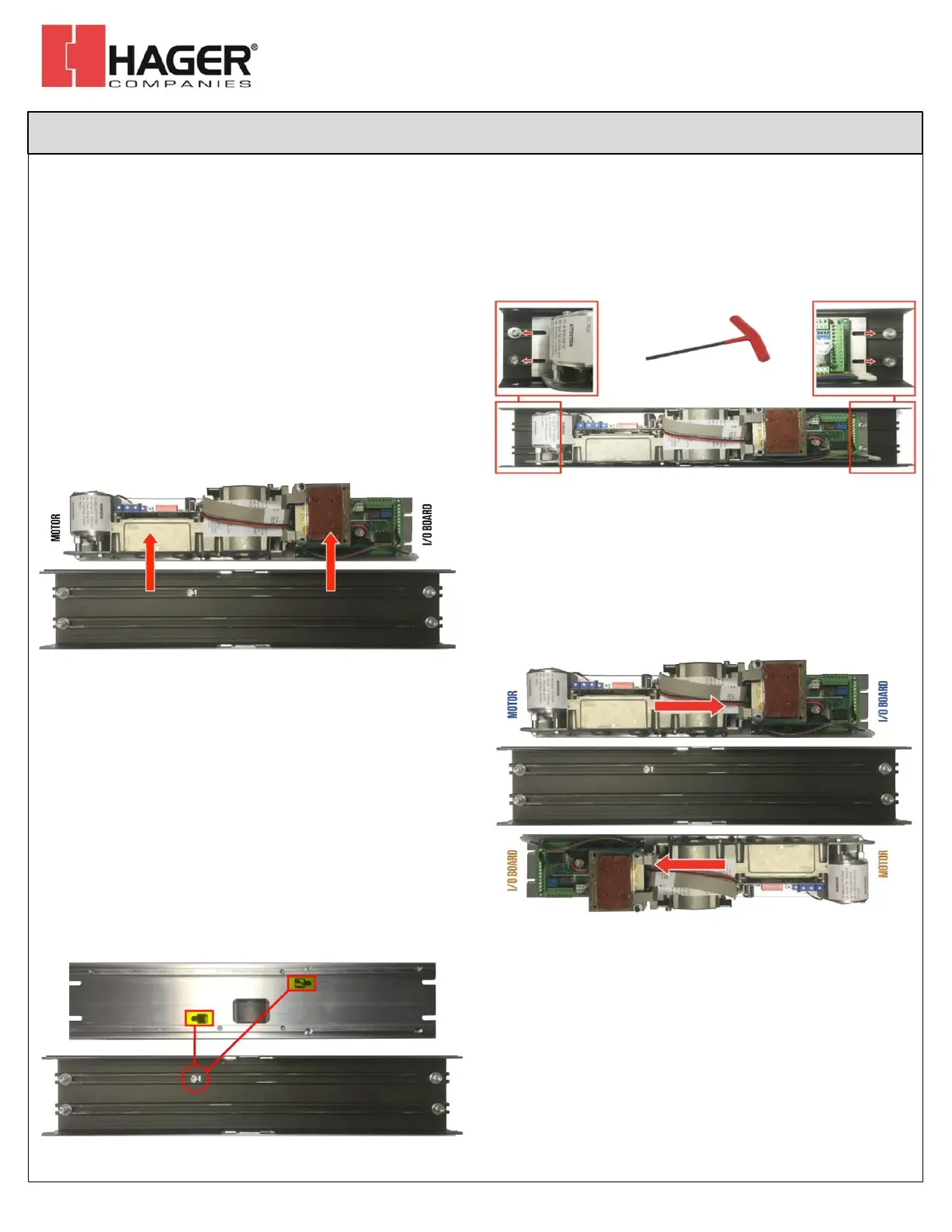

Header Installation (Cont)
The operator is mounted to a short aluminum “drive” plate that is held into the header by 5 mounting
screws. Four (4) of the screws secure the drive plate. One (1) screw is used to locate the drive plate using
a ‘keyhole’ configuration. The keyhole allows for easy removal of the drive plate without the need to
loosen the screw. Removing the four (4) screws allows the drive plate and operator to be removed from
the header and rotated 180 degrees to change from a push to a pull or vice versa.
1. Loosen the four (4) mounting screws using a
5mm hex wrench and slide each one off the drive
plate.
2. Remove drive plate by shifting to the left and
lifting the drive plate off the locating screw.
3. After installing the back-plate to the frame,
mount the drive module to the back-plate. See
page 6 for operator handing and arm type.
Key slot configuration and location screw mounted
to back-plate.
Page 5 of 18
