Hahnel modus 600rt - Control Panel

GB
Modus 600RT 9

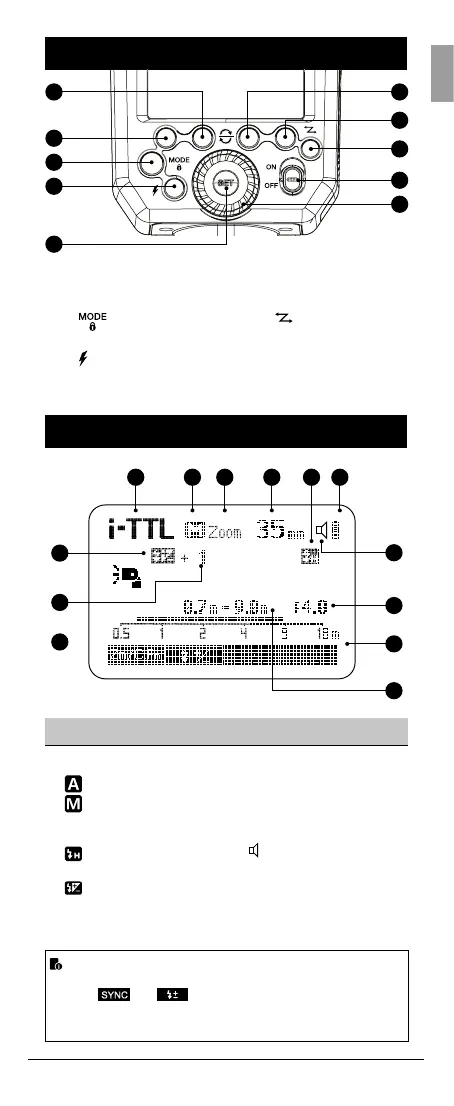

Nomenclature - Control Panel
Nomenclature - LCD Panel
13. Function Button 2
14. Function Button 1
15. <
> Mode Selection
Button / Lock button
16. <
> Test Button / Flash
Ready Indicator
17. <SET> Set Button
01. ITTL: i-TTL autoash
02. : Automatic
: Manual
03. Zoom: zoom display
04. Focus Distance
05.
: High-speed sync
06. Battery level indicator
07. : Flash exposure
compensation
08. Flash exposure
compensation amount
09. Aperture
10. Distance indicator scale
11. Effective ash range
12.
Beep on/off (C. Fn 7)
18. Function Button 3
19. Function Button 4
20. <
> Wireless Mode/
Master/Slave
21. ON/OFF Power Switch
22. Select Dial
17
13 18
14
19
15
21
20
16
22
01 02 03 04 05 06
08
09
12
10
11
09
07
(1)I-TTLAutoash
• The display will only show the settings currently applied.
• The functions displayed above function buttons 1 to 4, such
as
and change according to settings’ status.
• When a button or dial is operated, the LCD panel
illuminated.
