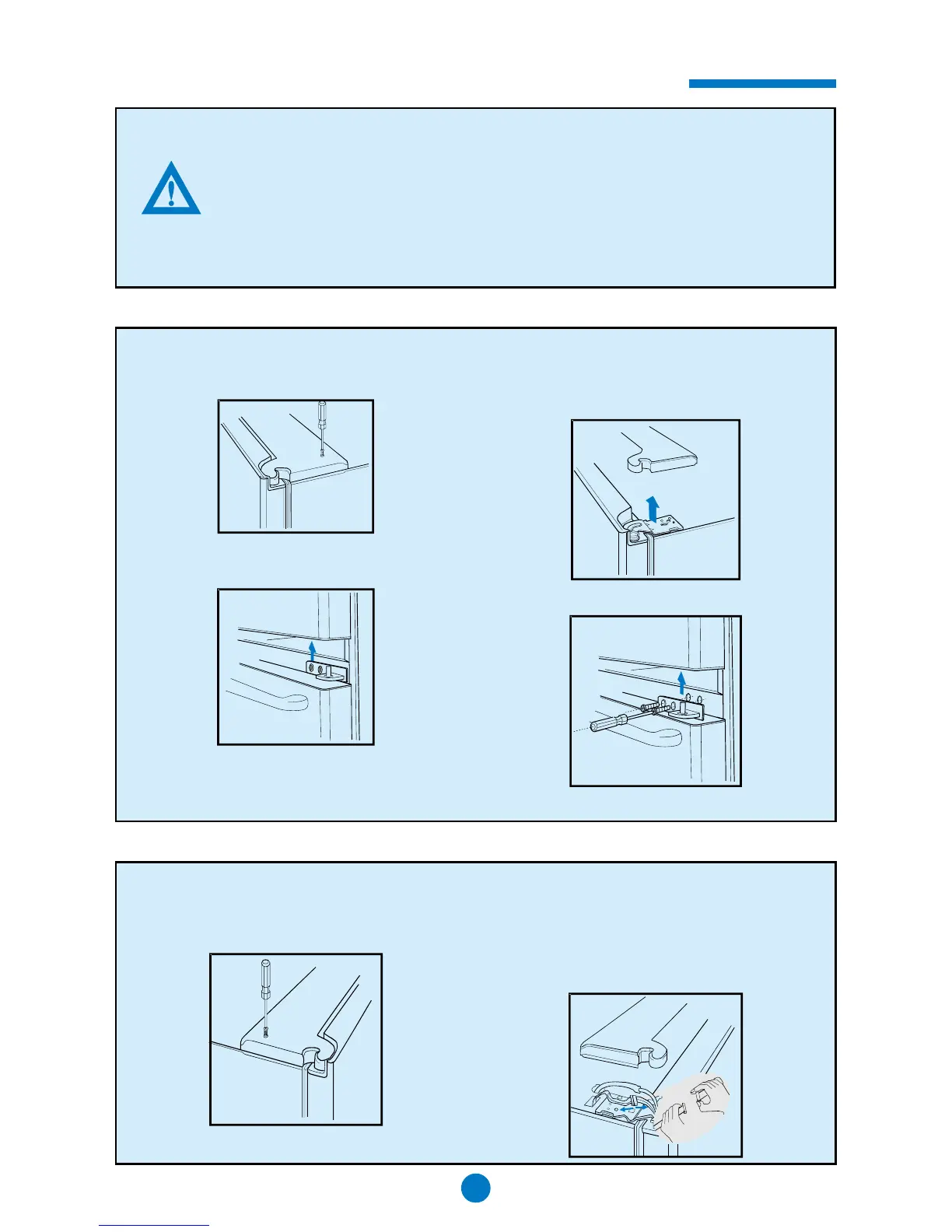

Disassembly and Assembly of Door
Caution
Before disassembling and assembling the doors, please remove food on
the bottle seat,and remove the bottle seat, and then cut the power, shutdown
the water source to avoid personal injury, product or property loss. When
install and dismantle the doors, please contact the servicer centre of Haier.
Prevent children or pets from asphyxia due to trap in the refrigerator.
Do not let them play in the drawer.
Refr. Right Door Disassembly and Assembly
1. Remove the screw which xes the upper
hinge cover with screwdriver, and then
remove the upper hinge cover.
3. Raise the right door and remove proper
location.
2. Remove the screw which xes the upper
right hinge with hex driver, and move
forward the upper right hinge and the door,
and then remove right upper hinge.
4. Middle hinge may be removed if necessary.
5. The door can be installed by reverse steps.
Refr. Left Door Disassembly and Assembly
1. Remove the screw which xes the upper
hinge cover with screwdriver, and then
remove the upper hinge cover.
2. Disconnect the wire terminal, and separate
the connectors on the upper right corner
at the back. Remove humidity sensor, and
then remove the screw with hex driver.
Move forward the hinge, water pipe, and
door, and then remove the upper left hinge.
To Next Page
