Introduction
Front panel controls

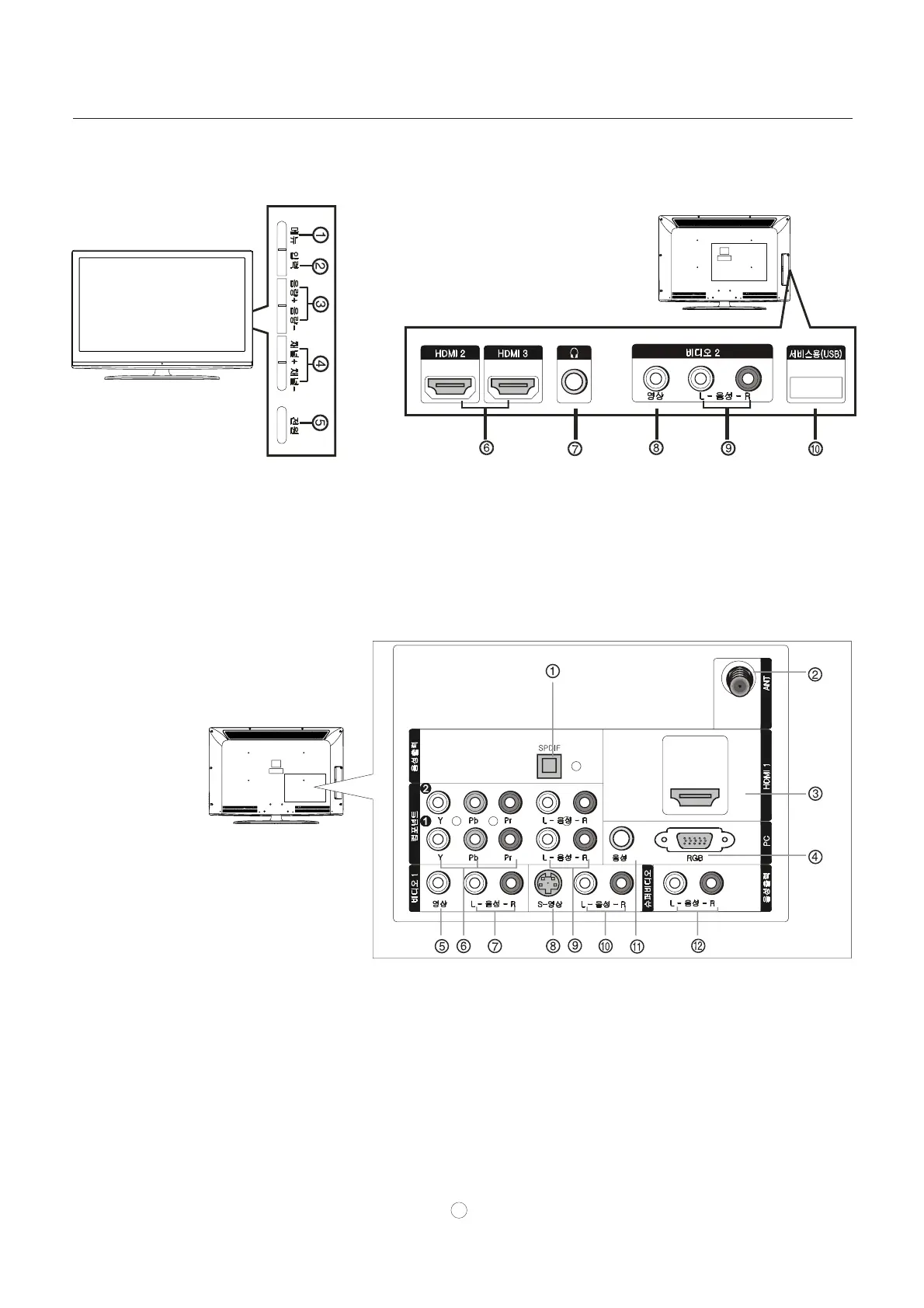

This is a simplified representation of front panel. Here shown may be somewhat different from your TV.
1.MENU: Menu display.
2.INPUT: Press to show the input source mode. In the MENU/INPUT screen, these buttons serve as OK buttons.
3.VOL -/+: Press to adjust the volume .In the MENU screen, these buttons serve as left/right buttons.
4.CH -/+ : Press to scan through channels. To scan quickly through channels, press and hold down either +/- . In the
MENU screen, these buttons serve as up/down buttons.
5.POWER: Press to turn on and off the TV.
6.HDMI IN:
Connect a signal to HDMI.
7.
Headphone jack : Headphone audio output terminal.
8. AV2 VIDEO IN:
Connects the video signal from a video device.
9 .
AV2 AUDIO IN: connect to hear stereo sound from an external device.
10. USB:
from an external device
1 Digital Audio Output: Connect digital audio to various types of equipment.
NOTE: In standby mode, these ports will not work.
2 Antenna Input: Connect cable or antenna signals to the TV, either directly or through your cable box.
3 HDMI: Connect a signal to HDMI.
4 PC VIDEO In: Connect the audio out from the external device, used while linking PC audio frequency output terminals.
5 VIDEO In: Connects the video signal from a video device.
6 DVD/DTV In(Component ): Connect a component video device to these jacks.
7 AUDIO In: Connect to hear stereo sound from an external device.
8 S-VIDEO In: Connect S-Video out from an S-VIDEO device to the S-VIDEO input.
9 COMPONENT AUDIO In: Connect to hear stereo sound from an external device.
10 AUDIO In: Connect to hear stereo sound from an external device.
11 PC Audio In: Connect an audio cable for a computer to this jack.
12 AUDIO Out: Connect to the left and right audio input jacks of your audio or video equipment.
