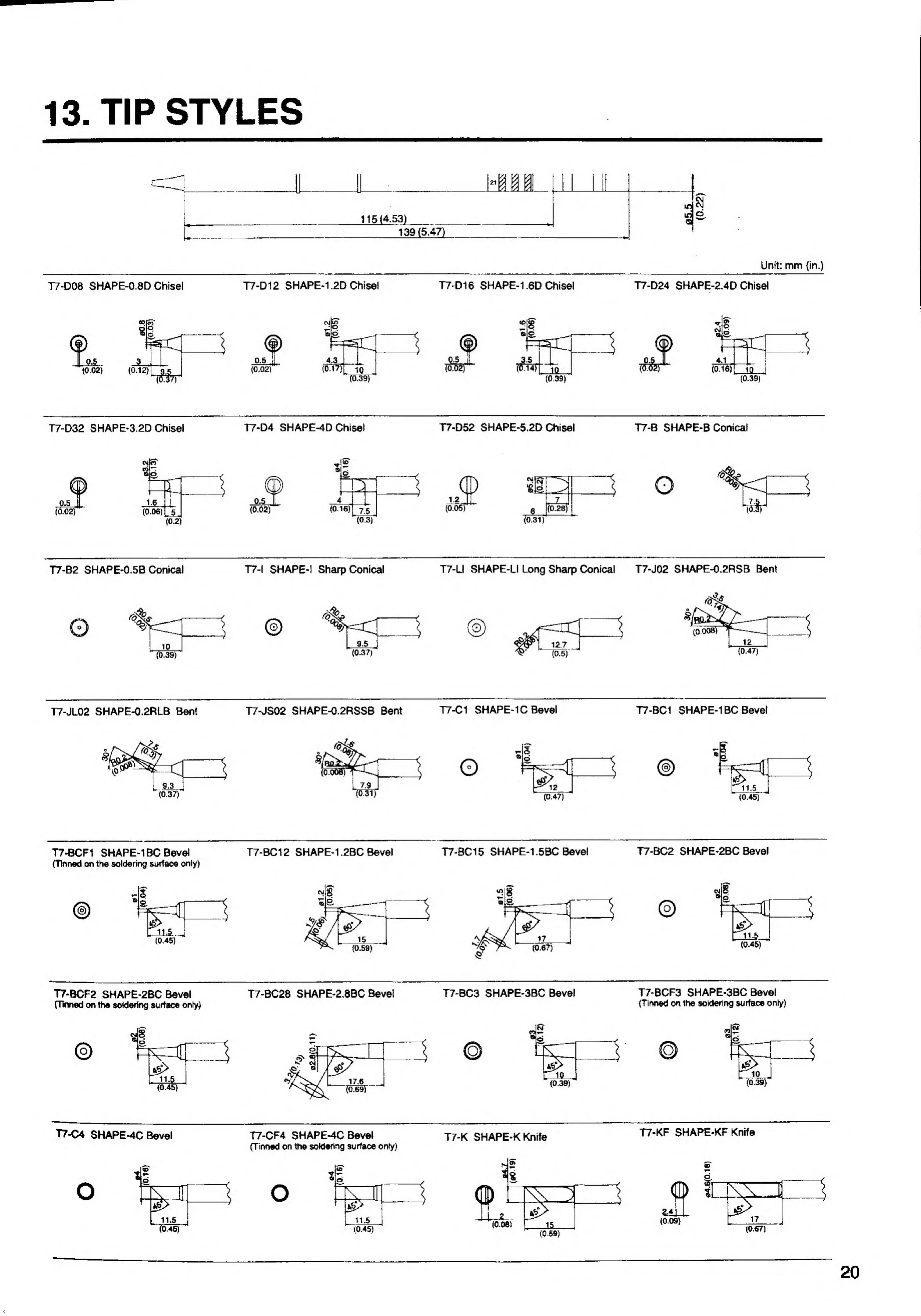

Hakko Electronics FM-202 - Soldering Tip Styles Catalog

hi i I
Jj
^ __
i
1
1
1^
_L
115(4.53)
I-
139(5.47)
0
o
Unit: mm (in.)
T7-D08 SHAPE-0.8D Chisel
T7-D12 SHAPE-1.2DChise! T7-D16 SHAPE-1.6D Chisel T7-D24 SHAPE-2.4D Chisel
T7-D32 SHAPE-3.2D Chisel
T7-D4 SHAPE-4D Chisel T7-D52 SHAPE-5.2D Chisel T7-B SHAPE-B Conical
T7-B2 SHAPE-0.5B Conical
T7.| SHAPE-1 Sharp Conical T7-LI SHAPE-LI Long Sharp Conical T7-J02 SHAPE-0.2RSB Bent
T7-JL02 SHAPE-0.2RLB Bent T7-JS02 SHAPE-0.2RSSB Bent T7-C1 SHAPE-1C Bevel
T7-BC1 SHAPE-1 BC Bevel
T7-BCF1 SHAPE-1 BC Bevel
(Tinned on tl>e soldering surface only)
T7-BCF2 SHAPE-2BC Bevel
(Tinned on the soldering surface only)
T7-BC12 SHAPE-1.2BC Bevel T7-BC15 SHAPE-1.SBC Bevel T7-BC2 SHAPE-2BC Bevel
T7-BC28 SHAPE-2.8BC Bevel T7-BC3 SHAPE-3BC Bevel T7-BCF3 SHAPE-3BC Bevel
(Tinned on the soldering surface only)
T7<A SHAPE-4C Bevel T7-CF4 SHAPE-4C Bevel T7-K SHAPE-K Knife SHAPE-KF Knife
(Tinned on the soldehng surface only)
20
