3.1 Low Discharge Signal Sender
Battery charging status
indicator/hourmeter
The factory setting is as fol-
lows:
maintenance-free block bat-
tery, 4x6V block batteries,
type: GiV

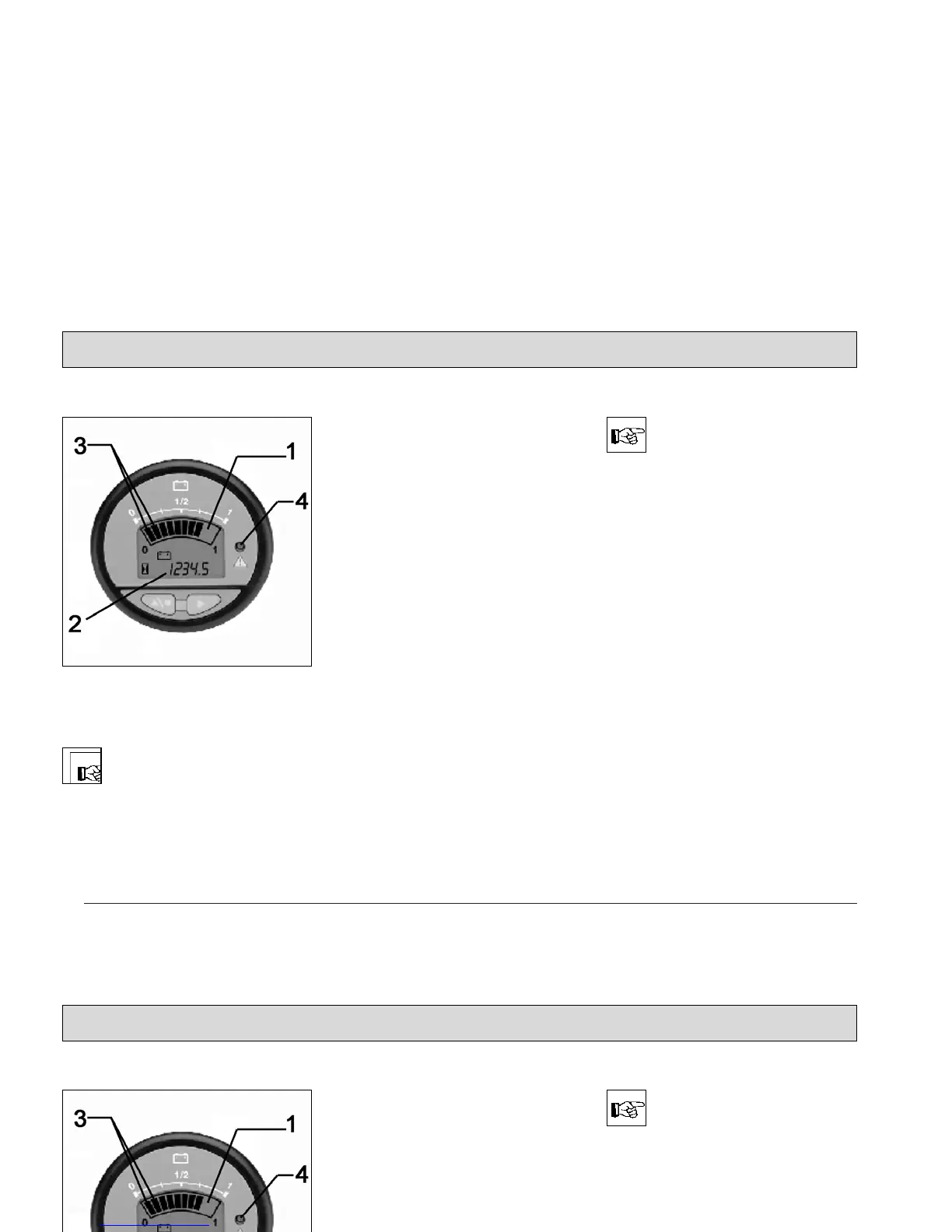

3.1.1 Battery Charging Status Indicator
Upon turning ON by key switch, bat-
tery charging status is shown by dis-
play of green bars (Fig. 5/1). As the
battery discharges during operation,
the lighting green bars extinguish one
after another showing thus always the
current charge status of battery char-
ge.
Flashing of the last two green bars
indicates that operation will be stop-
ped soon. In order to preclude low
discharge of batteries, the sweeping
units are switched off and riding speed
reduced to 50% if battery is dischar-
ged. The red LED (Fig. 5/4) than flas-
hes.
3.1.2 Hourmeter
The operating hours of the machine
appear in the display (Fig. 5/2); the
hourmeter will count only during wor-
king or transport ride; only full hours
are displayed).
3.1.3 Setting Other Battery Types
Have the low discharge sig-
nal sender set to other bat-
tery types by qualified per-
sonnel only and in
approved qualified works-
hops only.
20
Battery Systems
Fig.5
3.1 Low Discharge Signal Sender
Battery charging status
indicator/hourmeter
The factory setting is as fol-
lows:
maintenance-free block bat-
tery, 4x6V block batteries,
type: GiV
3.1.1 Battery Charging Status Indicator
Upon turning ON by key switch, bat-
tery charging status is shown by dis-
play of green bars (Fig. 5/1). As the
battery discharges during operation,
the lighting green bars extinguish one
after another showing thus always the
current charge status of battery char-
ge.
Flashing of the last two green bars
indicates that operation will be stop-
ped soon. In order to preclude low
discharge of batteries, the sweeping
units are switched off and riding speed
reduced to 50% if battery is dischar-
ged. The red LED (Fig. 5/4) than flas-
hes.
3.1.2 Hourmeter
The operating hours of the machine
appear in the display (Fig. 5/2); the
hourmeter will count only during wor-
king or transport ride; only full hours
are displayed).
3.1.3 Setting Other Battery Types
Have the low discharge sig-
nal sender set to other bat-
tery types by qualified per-
sonnel only and in
approved qualified works-
hops only.
20
Battery Systems
Fig.5
