HAKO 980 E/EH - Dismount Plate Filter

47
7.7 Dismount Plate Filter
Proceed as follows for dismounting of
the plate filter:
- Open seat hood.
- Open quick-release locks
(Fig. 21/1).
- Remove cover, filter case (Fig. 21/3)
- Remove covering hood, plate filter
- Loosen fillister head screws
(Fig. 21/2) and remove.
- Fold back frame with electro-motor
(Fig. 22/3).
- Hook frame at indicated position
(Fig. 22/4)
- Remove plate filter (Fig. 22/5).
For mounting of plate filter proceed in
inverse order.

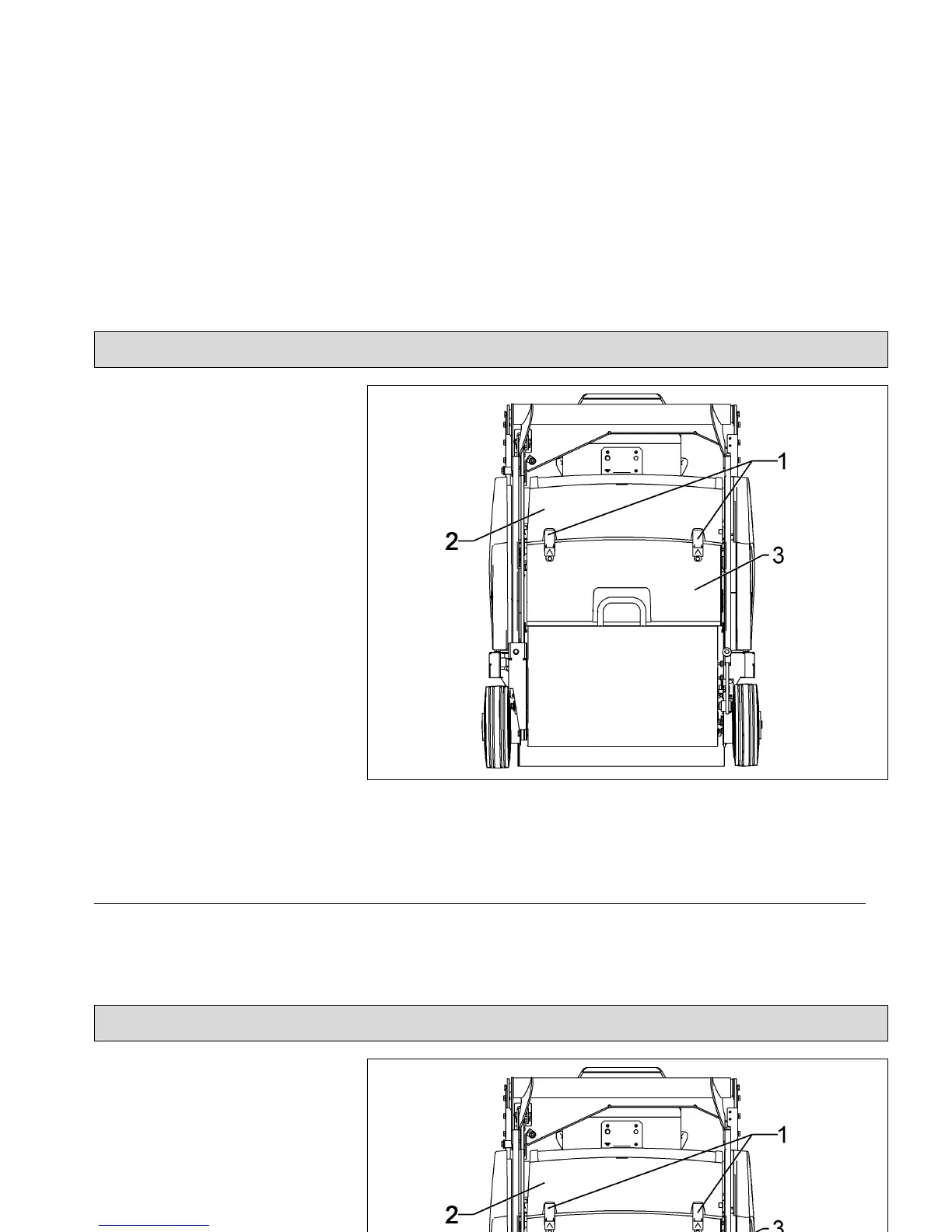

Replace plate filter
1 Quick-release locks
2 Filter case cover
3 4 Filter case
Maintenance/Service
Fig.21
47
7.7 Dismount Plate Filter
Proceed as follows for dismounting of
the plate filter:
- Open seat hood.
- Open quick-release locks
(Fig. 21/1).
- Remove cover, filter case (Fig. 21/3)
- Remove covering hood, plate filter
- Loosen fillister head screws
(Fig. 21/2) and remove.
- Fold back frame with electro-motor
(Fig. 22/3).
- Hook frame at indicated position
(Fig. 22/4)
- Remove plate filter (Fig. 22/5).
For mounting of plate filter proceed in
inverse order.
Replace plate filter
1 Quick-release locks
2 Filter case cover
3 4 Filter case
Maintenance/Service
Fig.21
