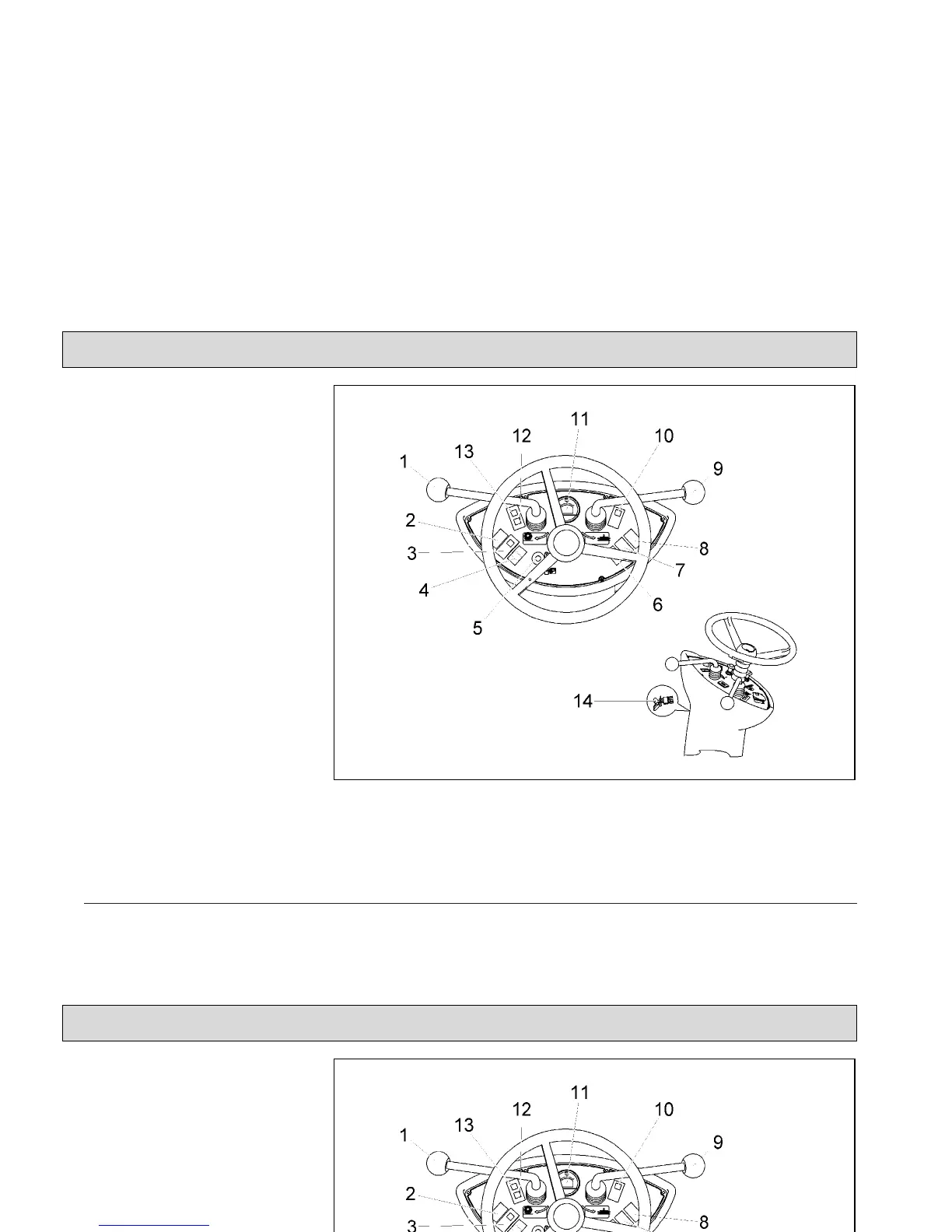

5.2 Hako-Jonas 980 E/EH Control
Panel
1 Cylinder broom lever
2 Release (lifted-up disposal)
3 Horn
4 Cover with plug connection for
battery/LDS programming
5 Suction fan/shaking system knob
6 Flashlight (optional/6505)
7 Lighting (optional/6506)
8 Lift and lower (lifted-up disposal)
9 Side brush lever
10 Pilot lamp, parking brake
11 Battery charge status
indicator/hourmeter
12 Pilot lamp, fan
13 Pilot lamp, shaking system
14 Key switch
28
Operation
Fig.10
