HAKO 980 E/EH - Electrical System Maintenance

53

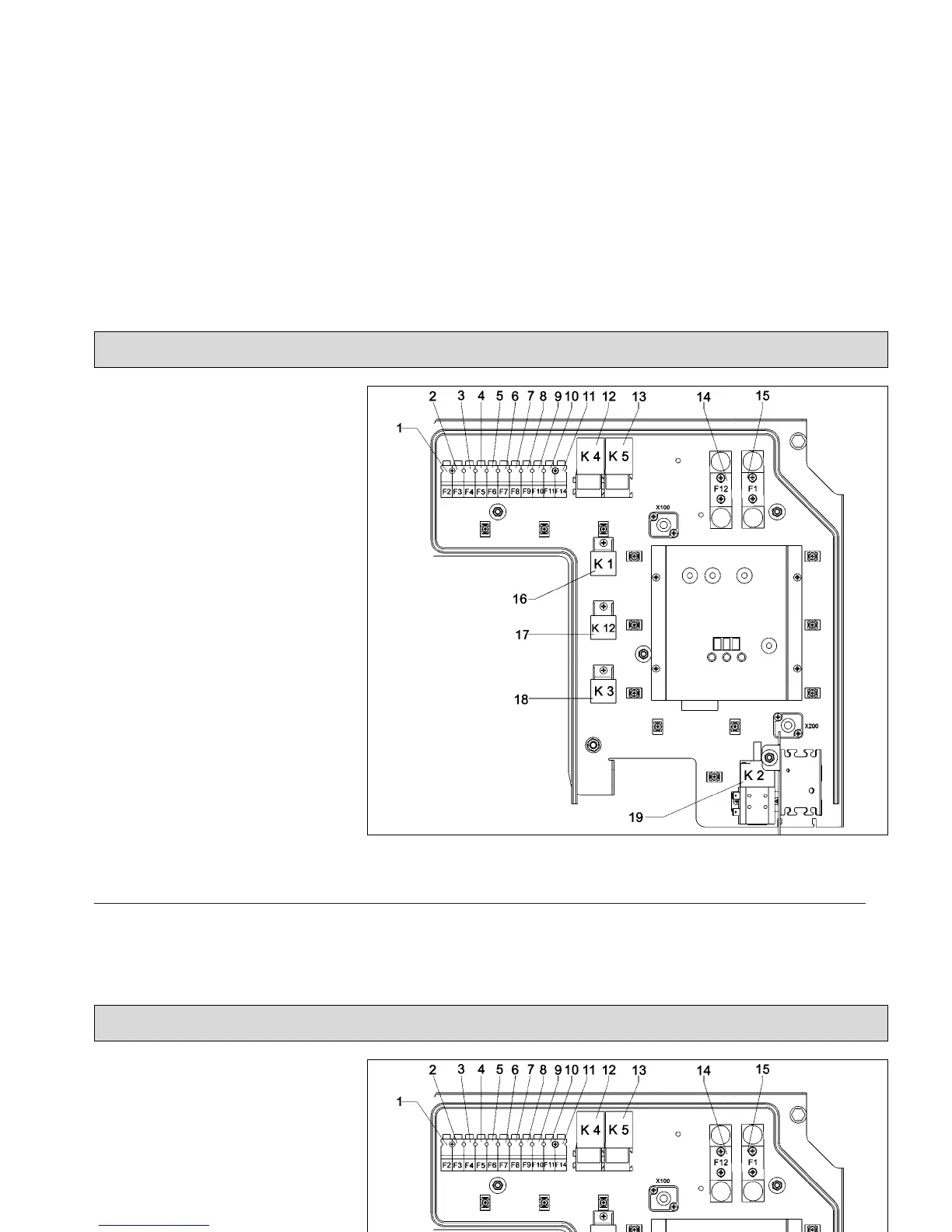

7.12 Electric System
7.12.1 Fuses/Relays
1 F2 Pre-fuse (20A)
2 F3 Travel drive assembly control
(10A)
3 F4 Control panel indicators (5A)
4 F5 Horn (5A)
5 F6 Control, main motor and LDS
(5A)
6 F7 LDS measurement (5A)
7 F8 Lighting (7.5A)
8 F9 Lifted-up disposal control
(6502.60) (7.5A)
9 F10 Vacuum cleaner option (30A)
10 F11 Shaking motor (30A)
11 F14 Flashlight option (5A)
12 K4 Time relay, filter monitoring
13 K5 Impulse relay, shaking
14 F12 Main motor (63A)
15 F1 Travel drive assembly (63A)
16 K1 Relay, multimode
17 K12 Relay
18 K3 Relay
19 K2 Relay, motor suction fan/
sweeper
Fuses/relays
Maintenance/Service
Fig.26
