7.6 Replace Side Brush
The side brush is located at the front
right of the machine (standard ver-
sion). Use the lever (Fig. 10/9) to lift
and lower the side brush. The side
brush is to be lightly inclined in for-
ward and in outward direction. The
swinging area of the side brush arm is
limited by stop screws. The side brush
is driven by a V-belt. Fitting of a
second side brush for specific applian-
ces is possible.
Proceed as follows for dismounting of
the side brush:
Replace side brush
- Turn engine off and pull key.
- Secure machine by engaging par-
king brake
- Disconnect battery plug
- Side brush lifted
- Loosen hexagonal nut (Fig. 20/1)
und remove together with washer
- Remove bolt (Fig. 20/2)
- Remove side brush
Proceed in inverse order for mounting
of the side brush.
46
Maintenance/Service

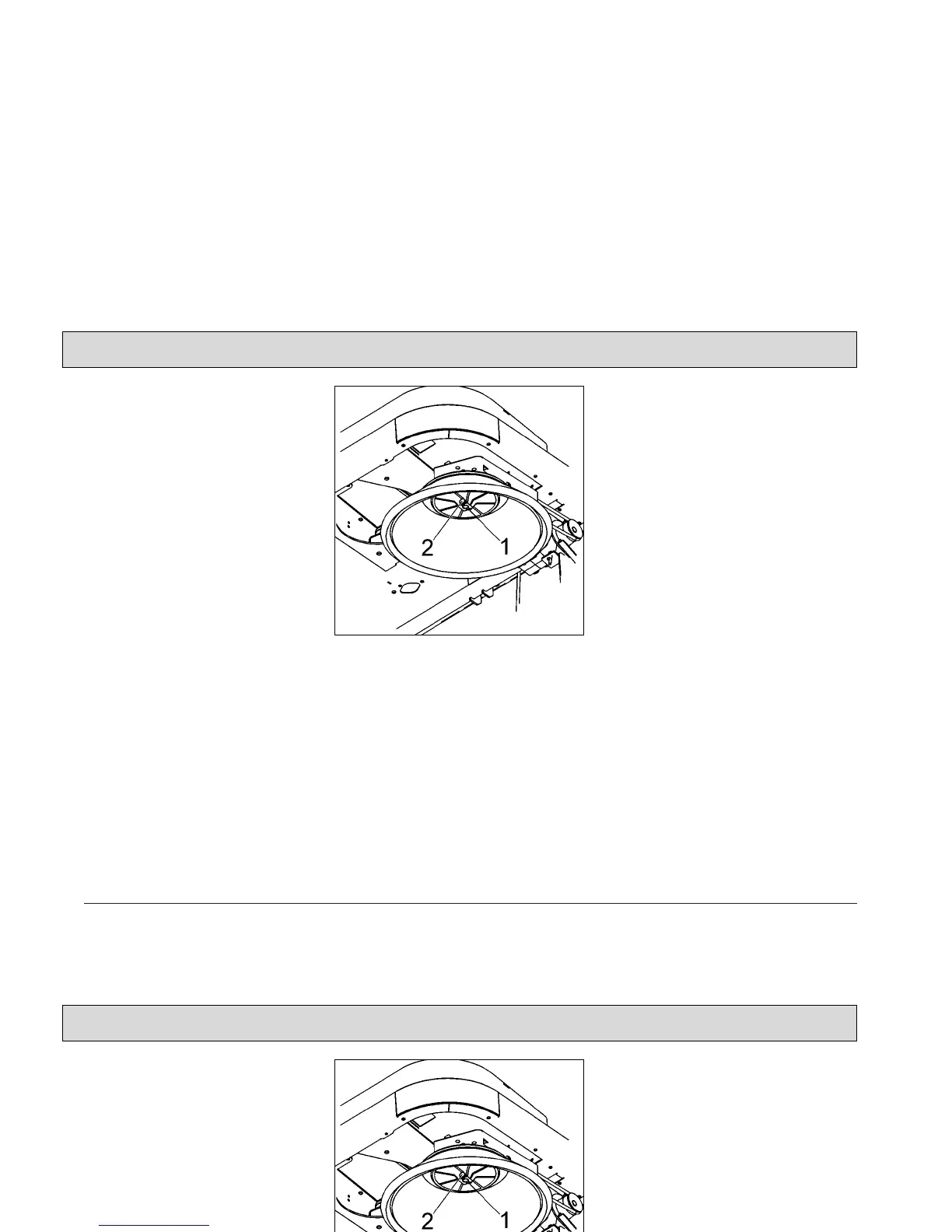

Fig.20
