Operation
Checking the charging process
You can monitor the charging process
by means of the LED on the integrated
charger. When the charging process is
started (by connecting the power plug
or battery connection), the green LED
flashes (according to the characteristic
curve set). While the charging program
is active, the yellow LED (Fig. 9/1) lights
up. When the charging program has
ended, the green LED (Fig. 9/2) lights
up. A trickle charge is then supplied.
The battery is again ready for use.
The vehicle cannot be switched on
while the integrated charger is in opera-
tion!
The red LED (Fig. 9/3) signals an error.
• Invalid characteristic curve - red LED
flashes fast
• Battery error (no battery, charging
time exceeded) - red LED flashes
slowly
• Device too hot - red LED lights up
(error is not automatically reset)

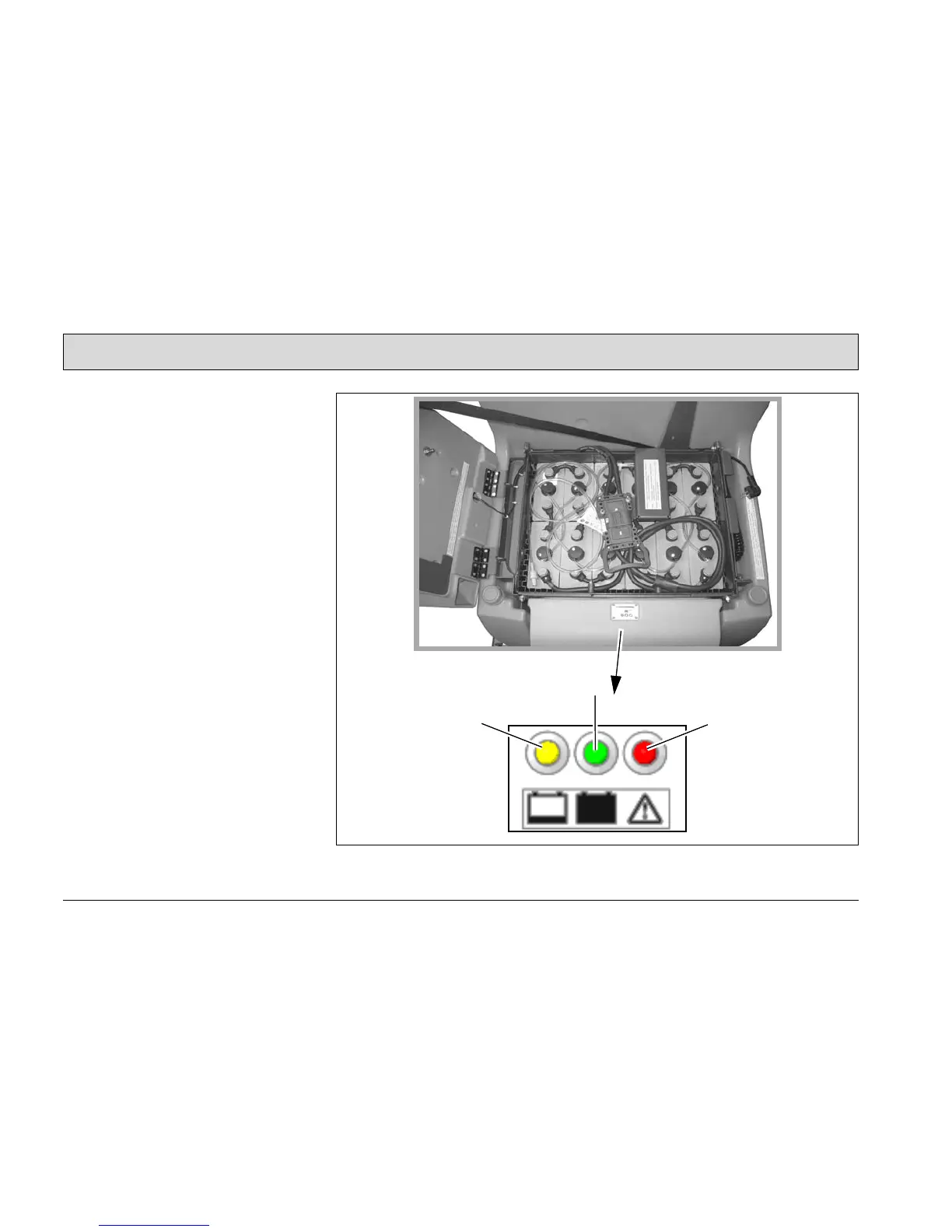

Fig.9
