HAKO Hakomatic B115R - Deflector; Pivoting the Deflector Away; Changing the Deflector Rubber

63
Maintenance and Service
5.8 Deflector
1 Deflector
2 Wing nut
3 Clamping rail
4 Rubber deflector strips
5 Locking hooks
5.8.1 Pivoting the deflector away
1. Open the locking hooks (Fig. 27/1).
2. Pivot the deflector away to the side.
5.8.2 Changing the deflector rubber
Check the deflector rubber (Fig. 27/4)
daily or as required and change it when
necessary.
1. Loosen the wing nut (Fig. 27/2).
2. Slide the clamping rail (Fig. 27/3) to
the front until the hooks on the inner
side are free and the clamping rail
can be moved away.
3. Change the deflector rubber
(Fig. 27/4).
4. Reassemble in the reverse se-
quence.

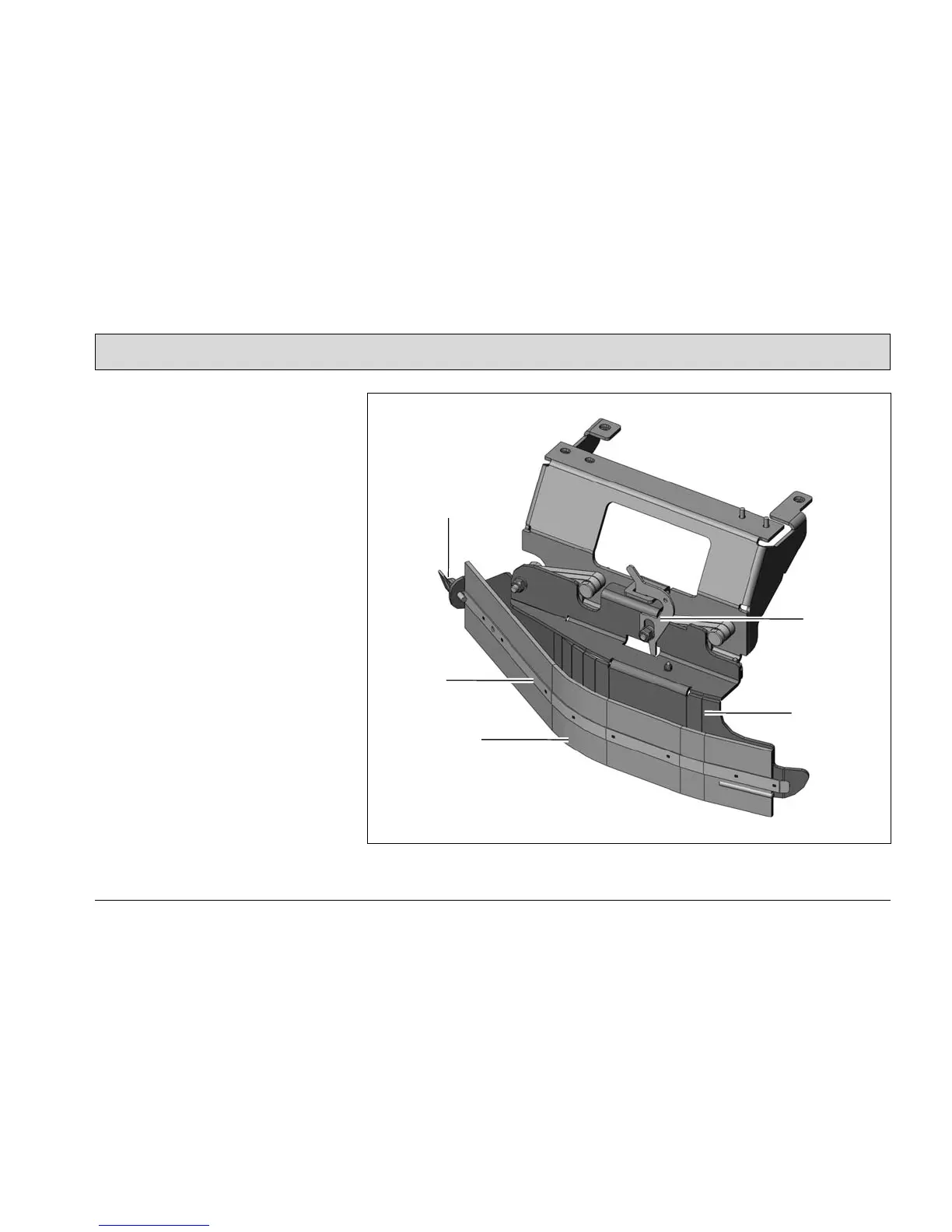

Fig.27
1
2
3
5
4
