Operation
Lever for cylindrical brush support
(Fig. 22/1)
This lever is used to lock/unlock the cy-
lindrical brush support. The cylindrical
brushes can be disassembled quickly,
without the need for tools.
Dirt hopper, cylindrical brush head
(Fig. 22/2)
The cylindrical brush head is provided
with a dirt hopper equipped with a lock.
The dirt hopper can be removed to be
cleaned.
Ejector for disk brushes (Fig. 21/3)
The brush ejector enables the brushes
to be disassembled quickly, without the
need of any tools.
Power connection (Fig. 22/4)
The charger is supplied with power via
the power connection.

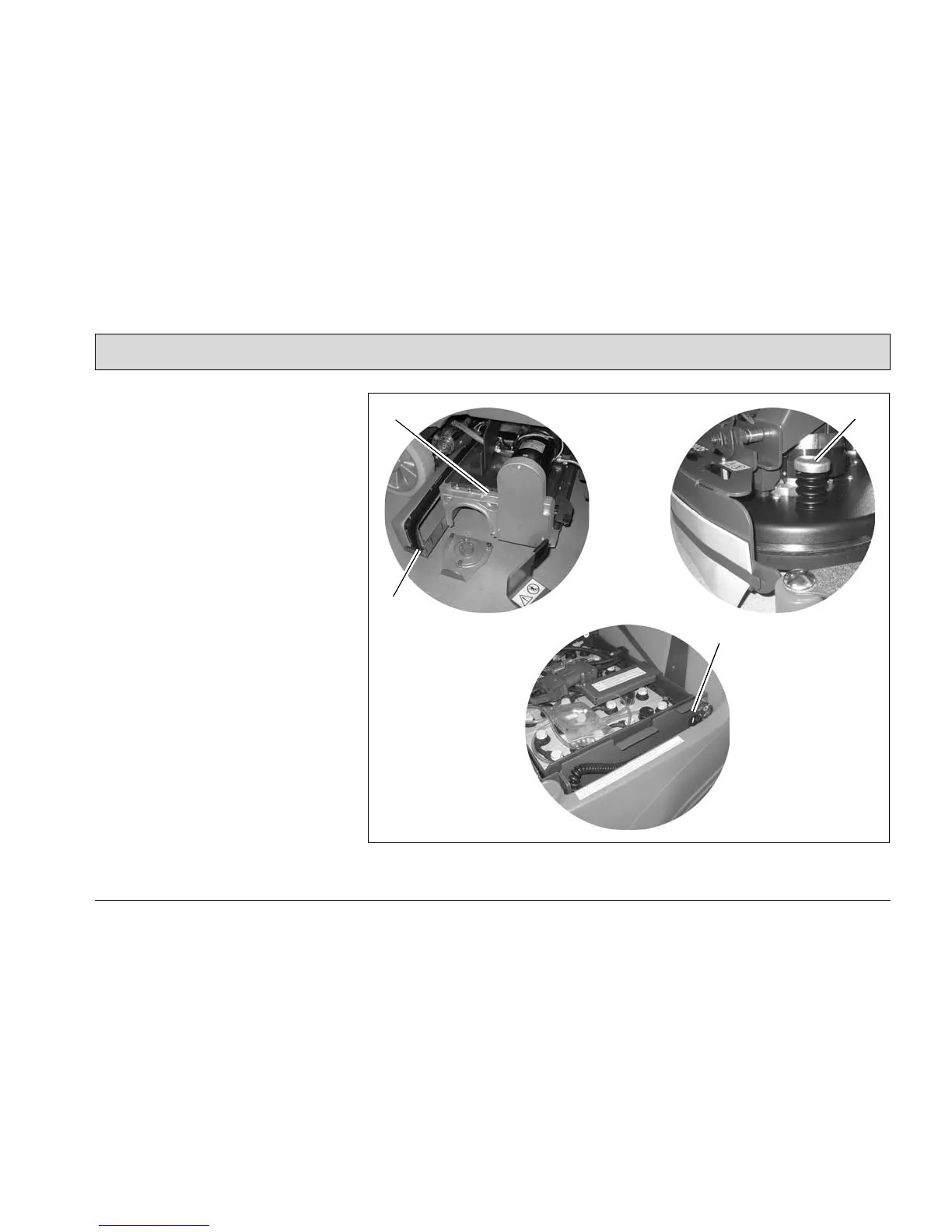

Fig.22
