Use
2.3.2 Cleaning head
The drive of the cleaning tools and the water supply are switched on by actu-
ating the rotary lock Fig. 6-1. The floor is cleaned by the intensive movements
of the brushes/pads Fig. 6-2 and the supply of cleaning solution. Switching off
ECO mode increases the cleaning effect.
2.3.3 Solution tank
The solution tank Fig. 6-3 has a capacity of 5 litres and is filled via the filling
opening in the solution tank Fig. 6-4 at a sink.
2.3.4 Squeegee
The squeegee Fig. 6-5 withdraws the waste water from the floor using the
sealing strips. The suction turbine vacuums the waste water from the floor.
2.3.5 Waste water tank
The vacuumed waste water is conveyed via a suction hose Fig. 6-6 from the
squeegee into the waste water tank Fig. 6-7. The level can be determined via
the transparent hose Fig. 6-8.

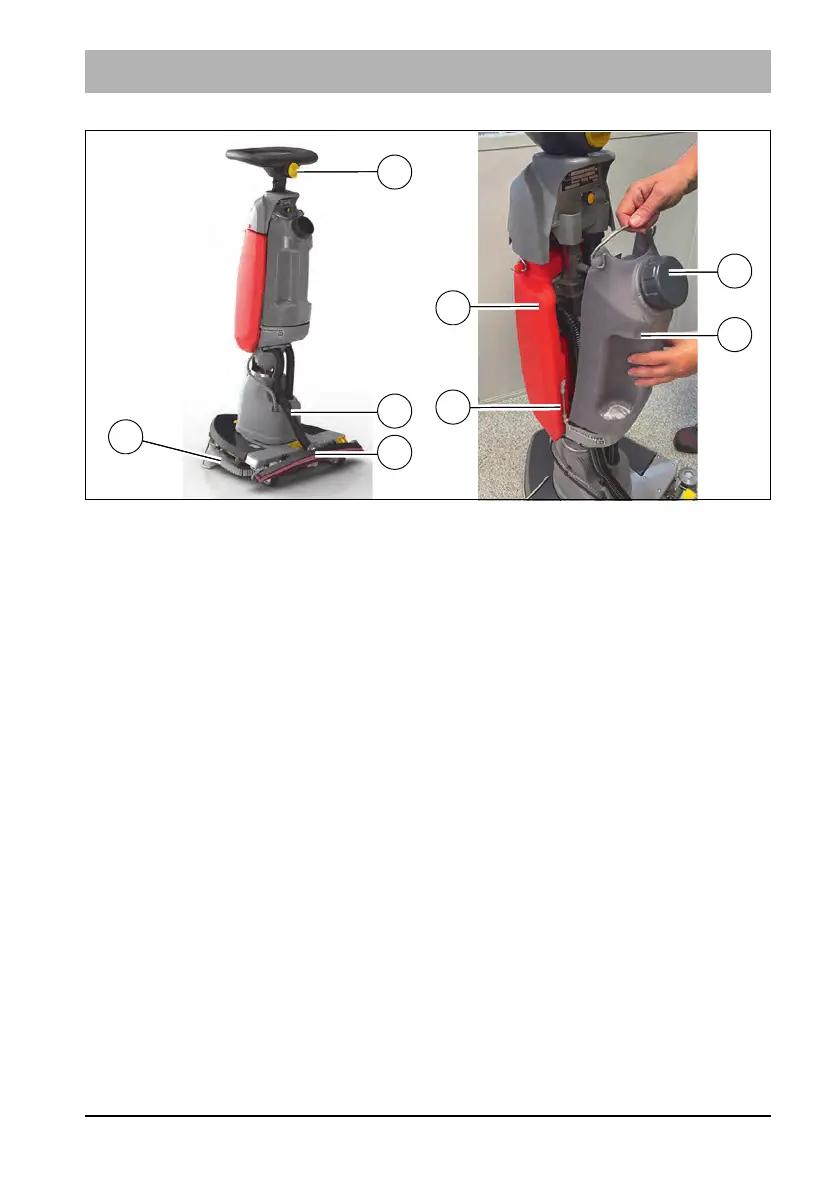

Fig. 6
1
2
3
4
5
6
7
8
