5.4 Solution and waste water tank
5.4.1 Removing the tanks
1. Place the machine on a level surface and turn it off.
2. Unlock the tank cap:
Pull out the locking bolt Fig. 11-1, push the tank locking device Fig. 11-2
upwards and release the locking bolt.
3. Tilt the solution tank to the rear and remove it Fig. 11-3.
4. Tilt the waste water tank to the front and remove it Fig. 11-4.

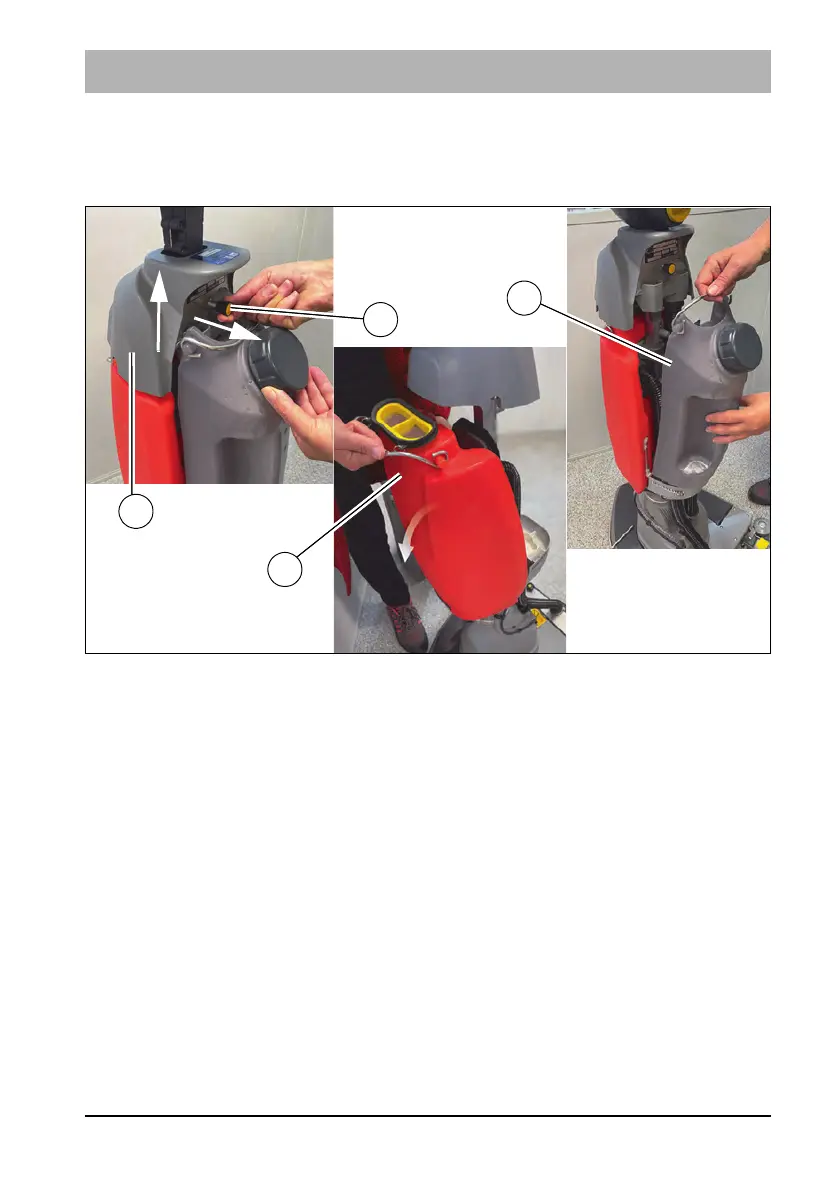

Fig. 11
1
2
3
4
