HAKO Scrubmaster B5 - Machine Controls Identification; Controls on the Machine Body

02-7150-00.fm 21
Use
2.2.2 Controls at the machine
Rotary lock of operating bar Fig. 4-1
The operating bar is unlocked by turning the rotary lock to the right and can be
brought into the working position. At the same time, the drive of the cleaning
tools and the water supply will start.
Locking bolt of tank cap Fig. 4-2
By pulling the locking bolt and simultaneously raising the tank cap Fig. 4-3,
the waste water tank and the solution tank can be easily removed.
Foot lever of squeegee Fig. 4-4
The foot lever is used to raise the squeegee.
Footrest of squeegee Fig. 4-5
The footrest is used to lower the squeegee.
Handle loop Fig. 4-6
The handle loop is used to carry the machine.

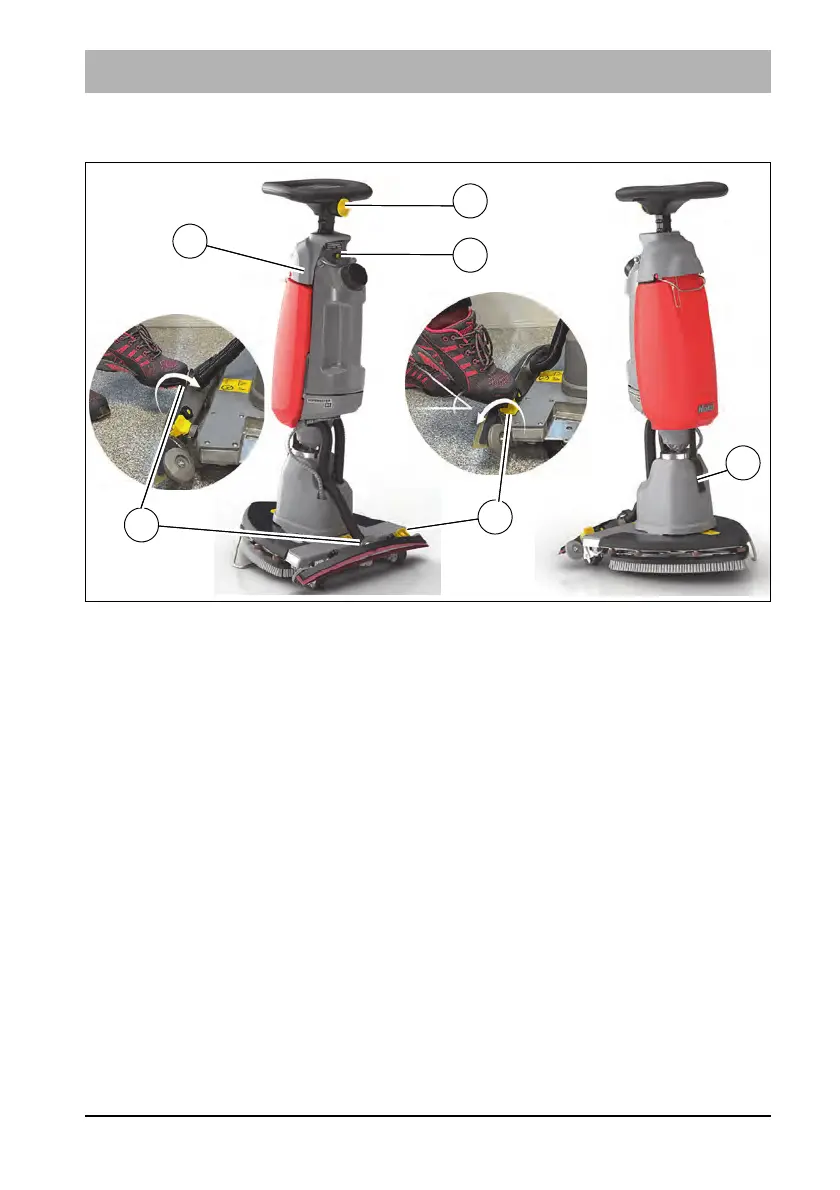

Fig. 4
4
1
2
5
3
6
